What Determines the IP Rating Required for an Outdoor Crane?

An outdoor crane IP rating is selected from the exposure of each electrical enclosure, motor and accessory, not from the crane name alone. Dust, rain, salt, condensation and cable entry all matter.

The practical decision is often whether an IP55 crane is adequate or an IP65 crane is justified. Document it component by component because cabinets, motors, pendants and junction boxes face different hazards.

What an IP Rating Actually Measures

The first digit: solids and dust

Under IEC 60529, the first IP digit describes protection against access to hazardous parts and ingress of solid foreign objects. The scale runs from no stated protection to dust-tight protection. IP5X means dust ingress is limited so that operation is not impaired; IP6X is dust-tight.

The difference matters at dusty yards, aggregate plants, cement facilities and steel handling areas. Fine dust can settle on terminals, restrict cooling or combine with moisture to create tracking. Assess airborne particles and cleaning deposits.

The second digit: water exposure

The second digit describes water protection under defined test conditions. IPX5 covers water jets, while IPX6 covers powerful water jets. IPX7 and IPX8 address temporary or continuous immersion under specified conditions. None of these codes, by itself, defines corrosion resistance, UV stability or safe operation after condensation.

Rain is not automatically equivalent to a laboratory water-jet test. Wind, overhangs, vehicle spray, hose-down routines and drainage change exposure. State the expected water source and severity.

How Outdoor Exposure Changes the Specification

Dust, fibers, salt and condensation

The site survey should record dust type, salt spray, temperature swings and idle periods. A coastal crane may have moderate dust but severe salt contamination. Combustible wood dust requires a separate hazardous-area assessment; an IP code does not replace it.

Condensation is another failure path. A sealed enclosure can collect moisture when a cold night follows a warm shift. Heaters, breathers, drain plugs or anti-condensation controls may be needed and must suit the rating and maintenance plan.

Rain, washdown and immersion are different risks

A sheltered outdoor runway may see rain on the top of a cabinet but little direct spray on the underside. A port crane or outdoor fabrication bay may receive wind-driven rain, hose-down water and splash from moving equipment. Where temporary flooding is credible, an IP55 or IP65 label should not be treated as immersion protection; elevation, drainage and a separate IPX7/IPX8 assessment may be required.

State the water exposure category, test method, enclosure orientation and gland condition. An empty-box certificate does not validate a wired crane assembly.

IP55 Crane or IP65 Crane?

When IP55 is proportionate

An IP55 crane can be a rational choice when the electrical equipment is protected from standing water and powerful spray, the site has controlled cleaning, and dust ingress must be limited rather than completely excluded. Typical examples include a covered loading bay, a warehouse with open sides, or an outdoor runway with a substantial canopy.

IP55 still requires disciplined installation. Unused entries need certified plugs, door gaskets must remain undamaged, and cable glands must match the cable diameter. A lower-rated pendant or junction box can become the weak point even when the main cabinet is IP55.

When IP65 is justified

An IP65 crane is more appropriate when dust-tight construction is needed and water jets are expected during rain, cleaning or nearby process work. Open yards, bulk-material handling, coastal exposure and frequent washdown are common triggers. The specification should confirm whether IP65 is required for the whole enclosure or only for selected components in the exposure zone.

IP65 does not mean weatherproof in every respect. Salt corrosion, sunlight, impact, thermal cycling, materials, drainage and inspection remain separate decisions.

Component-Specific Crane Motor IP Rating

Motor enclosure, cooling and duty

The crane motor IP rating must be selected with its cooling method, duty cycle, ambient temperature and mounting position. A motor exposed to rain may need a suitable enclosure and drain arrangement, while a motor under a weather hood may have a different water burden. Higher IP protection can reduce airflow, so thermal performance must be checked rather than assumed.

Motor protection also includes terminal-box sealing, shaft seals, fan covers, cable glands and condensation control. The motor data sheet should state the IP code, insulation class, temperature rise basis, operating duty and permissible ambient range. A motor IP code does not replace overload, short-circuit, phase-loss and brake protection.

For insulation and thermal selection, the F-class vs H-class crane motor guide provides a related engineering reference. The IP code and insulation class answer different questions and should appear as separate line items in an RFQ.

Hoist, travel, festoon and pendant components

Hoist terminals, brake rectifiers, limit switches, festoon trolleys, cable reels, remote controls and junction boxes may sit in different exposure zones. A high-rated cabinet cannot compensate for an exposed connector with an unsuitable seal.

The festoon cable system selection guide is useful when cable movement, bending, contamination and outdoor routing are part of the risk review. The RFQ should list the required IP rating for each item, not only for the crane’s main electrical panel.

Outdoor Crane Electrical Protection Beyond the IP Code

Enclosures, glands and interfaces

Outdoor crane electrical protection is a system of interfaces. Specify enclosure material, corrosion protection, gasket material, door compression, hinge orientation, drain provisions, gland plates and the minimum bend radius at entries. Stainless steel, coated steel and engineered polymer enclosures have different thermal and corrosion behaviors.

Cable glands should be selected for the actual cable construction and environmental exposure. The installation drawing should identify spare entries, breather devices, shield termination and bonding points. Any field-drilled opening should have a controlled method that preserves the enclosure rating.

Controls, power supply and maintenance

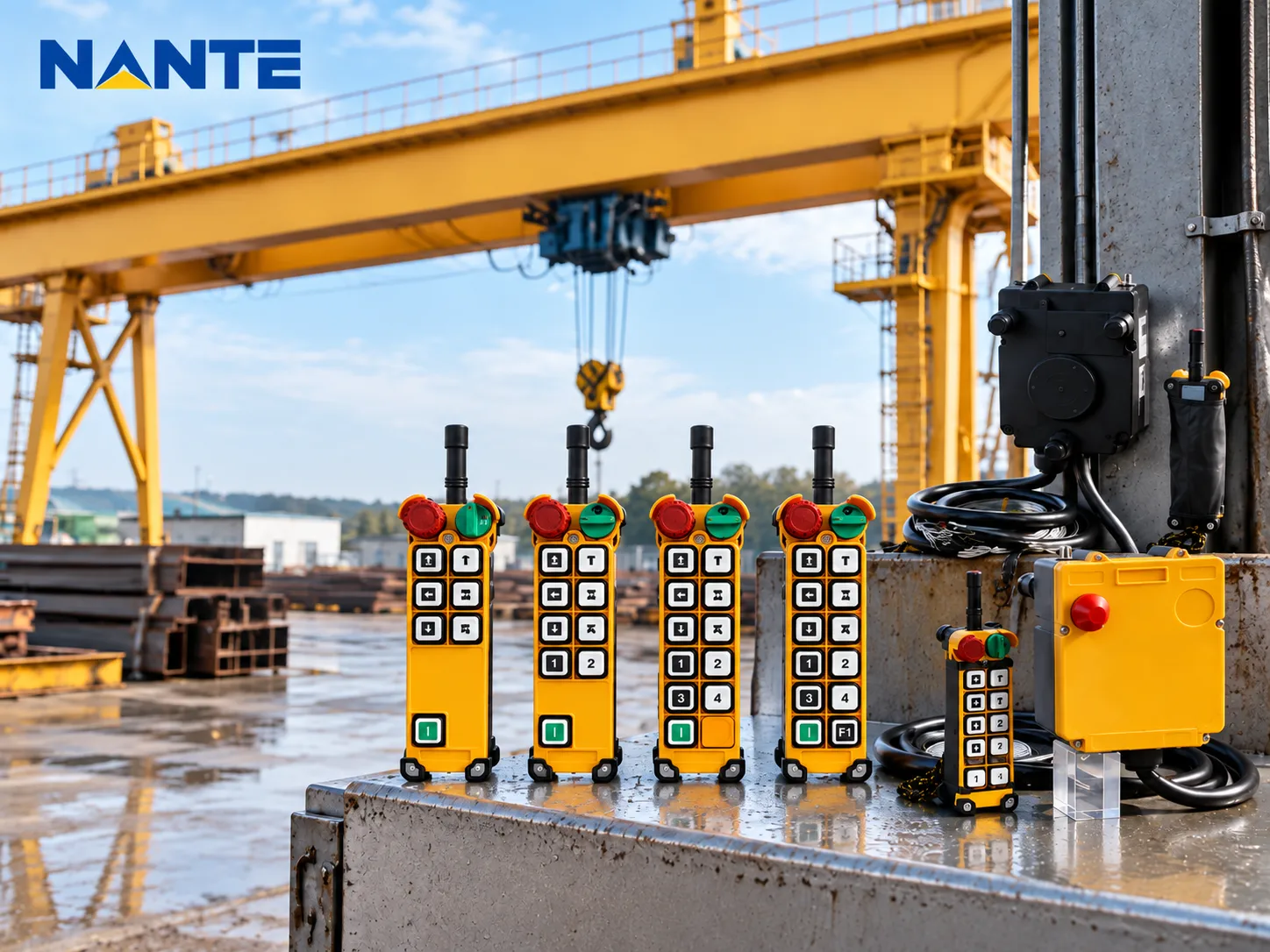

Control panels, remote controls, warning lights and limit switches need ratings that match their locations. The official crane control and safety components range shows why control equipment should be specified separately from the structural crane.

Maintenance access is part of protection. Repeated door opening, pressure-washing, temporary covers and replacement parts can reduce the as-installed rating. The maintenance plan should define gasket inspection, gland torque checks, drain cleaning, insulation testing and post-washdown inspection.

A Practical IP Rating Selection Workflow

1. Map the environment

Record the crane location, shelter, dust source, water source, cleaning method, salt exposure, temperature range, altitude, operating hours and flood risk. Mark each motor, cabinet, control station, cable reel and junction box on the layout.

2. Build a component matrix

For each item, list the required solid and water digits, material, cooling method, cable-entry details, corrosion treatment and test evidence. Note exceptions, such as a lower-rated component installed inside a higher-rated cabinet or under a certified hood.

3. Verify the evidence

Request the manufacturer’s data sheet, enclosure test report or certificate, gland schedule, wiring drawings and inspection procedure. Confirm that the tested configuration matches door hardware, windows, fans, drains and cable entries used in the quotation.

4. Check the installed condition

Factory acceptance testing can verify wiring and functional operation, but site commissioning should also inspect seals, glands, bonding, drainage and cable support. Photograph deviations and close them before handover.

Why Overall Crane Weather Resistance Is Not One Number

Structural protection is a separate design layer

IP codes apply primarily to enclosures and equipment. They do not rate the crane girder, runway, wheel assemblies, wire rope, paint system or lubrication against weather. Outdoor steelwork needs its own material, coating, drainage and inspection requirements.

Interfaces determine real-world reliability

The crane may have an IP65 cabinet but an IP54 motor, IP55 pendant and unsealed connector. That combination can be acceptable if exposure zones and failure consequences were assessed. It becomes a problem when a single “IP65 crane” label hides the actual component schedule.

Questions to Include in an Outdoor Crane RFQ

1. What dust, salt, rain, washdown and flood conditions apply at the site?
2. Which IP rating is required for each motor, panel, pendant, junction box, limit switch and cable system?
3. Which components are sheltered, and what are the hood, drainage and ventilation details?
4. What enclosure, gland, gasket and coating materials are proposed?
5. Which test reports, certificates, drawings and inspection records will be supplied?
6. How will replacement parts preserve the original rating during maintenance?

FAQ About Outdoor Crane IP Ratings

What is the difference between an IP55 crane and an IP65 crane?

An IP55 crane enclosure limits dust ingress and resists water jets, while an IP65 crane enclosure is dust-tight and resists water jets more effectively. The correct choice depends on the exposure of each component.

What IP rating should an outdoor crane motor have?

The crane motor IP rating depends on its location, cooling method, duty cycle, rain exposure and maintenance conditions. The motor data sheet should confirm the IP code, insulation class, duty rating and cable-entry protection.

Does IP65 mean the entire crane is weatherproof?

No. IP65 normally applies to a specific enclosure or component. Structural steel, motors, pendants, cables, coatings, drainage and corrosion protection require separate evaluation.

Can an IP55 crane be used in heavy rain?

IP55 may be suitable for sheltered outdoor areas with limited spray, but wind-driven rain, washdown or flooding may require higher protection for selected components. IP55 should not be treated as immersion protection.

Does an IP rating protect against salt corrosion?

No. IP ratings address solid and water ingress, not salt corrosion, UV exposure or long-term weathering. Coastal cranes may need corrosion-resistant materials, protective coatings, drainage and more frequent inspections.

Selecting a Supplier for the IP Specification

From the midpoint of the procurement process, supplier evaluation should focus on documentation and configuration control. The outdoor gantry crane product range gives buyers a relevant product context, while the broader Nante Crane site links crane, component and service information.

The quotation should identify the IP rating by component, test basis, exclusions, installation assumptions and commissioning checks. A component matrix makes the selection auditable.
