How to Evaluate a Manufacturer’s Crane Engineering Capability

A manufacturer’s crane engineering capability should be judged by auditable design evidence, not by catalog breadth or a polished quotation. The decisive question is whether the supplier can translate operating needs into calculations, coordinated drawings, safe controls, manufacturable details, and controlled project documents.

This matters most for customized industrial cranes. An incomplete load definition, missed building interface, or vague control philosophy can create redesign, installation delay, or operational restrictions long after the purchase order is signed.

Define Crane Engineering Capability Before Comparing Suppliers

Separate engineering evidence from sales claims

Engineering capability is the repeatable process that connects requirements, assumptions, calculations, drawings, manufacturing, testing, and change control. A credible supplier can show how one output leads to the next and identify who approves each stage.

Ask for a redacted sample document package from a comparable project. Useful evidence includes a design basis, calculation index, general arrangement drawing, electrical schematic, inspection and test plan, deviation log, and final document register.

Avoid treating software names, years in business, or a long project list as sufficient proof. Those facts may support a review, but they do not show whether the assigned team can solve the proposed application.

Build a weighted evaluation scorecard

Score evidence against the project’s risk profile rather than assigning every category equal weight. A standard indoor crane may place more weight on configuration discipline and delivery documentation; a high-duty, corrosive, hot, or tightly constrained application requires deeper structural and electrical review.

Examine the Crane Design Capability Behind the Quote

Audit the crane design team

A strong crane design team is multidisciplinary. The proposed organization should identify a responsible engineer, mechanical and structural designers, an electrical or controls engineer, manufacturing engineering, quality personnel, and a document owner.

Request names, roles, relevant project experience, availability, and checking authority for the assigned team. Confirm whether calculations are produced internally, independently reviewed, or outsourced, and establish who remains accountable when specialist work is subcontracted.

The review should also test communication. Meeting frequency, response targets, drawing-comment workflows, and escalation paths determine whether issues are resolved before fabrication.

Review calculations and design assumptions

The calculation package should begin with an agreed design basis: rated load, span, lifting height, speeds, operating hours, load spectrum, duty classification, environment, power supply, control method, runway data, and applicable destination requirements.

Buyers should expect defined load cases rather than one static capacity check. Depending on scope, the analysis may address lifted load, crane self-weight, dynamic effects, acceleration and braking, skewing, impact, wind or seismic inputs, maintenance loads, and abnormal or test conditions.

Check whether component selections trace back to these cases. Motors, brakes, ropes, drums, wheels, bearings, and end carriages should not appear as disconnected catalog choices.

For a useful overview of girder behavior and load paths, the purchasing team can review Crane Design principles before comparing supplier submissions.

Inspect 2D, 3D, and Structural Analysis Deliverables

Require coordinated 2D and 3D design outputs

Two-dimensional drawings remain essential for dimensions, tolerances, weld details, interfaces, and fabrication. Three-dimensional models expose clashes, maintenance access problems, cable conflicts, and installation constraints before fabrication.

Ask for a preliminary general arrangement during bidding and define the later approval stages. The drawing should show hook approaches, headroom, wheelbase, rail level, clearances, service platforms, power-feed arrangement, control locations, maintenance zones, and loads transferred to the supporting structure.

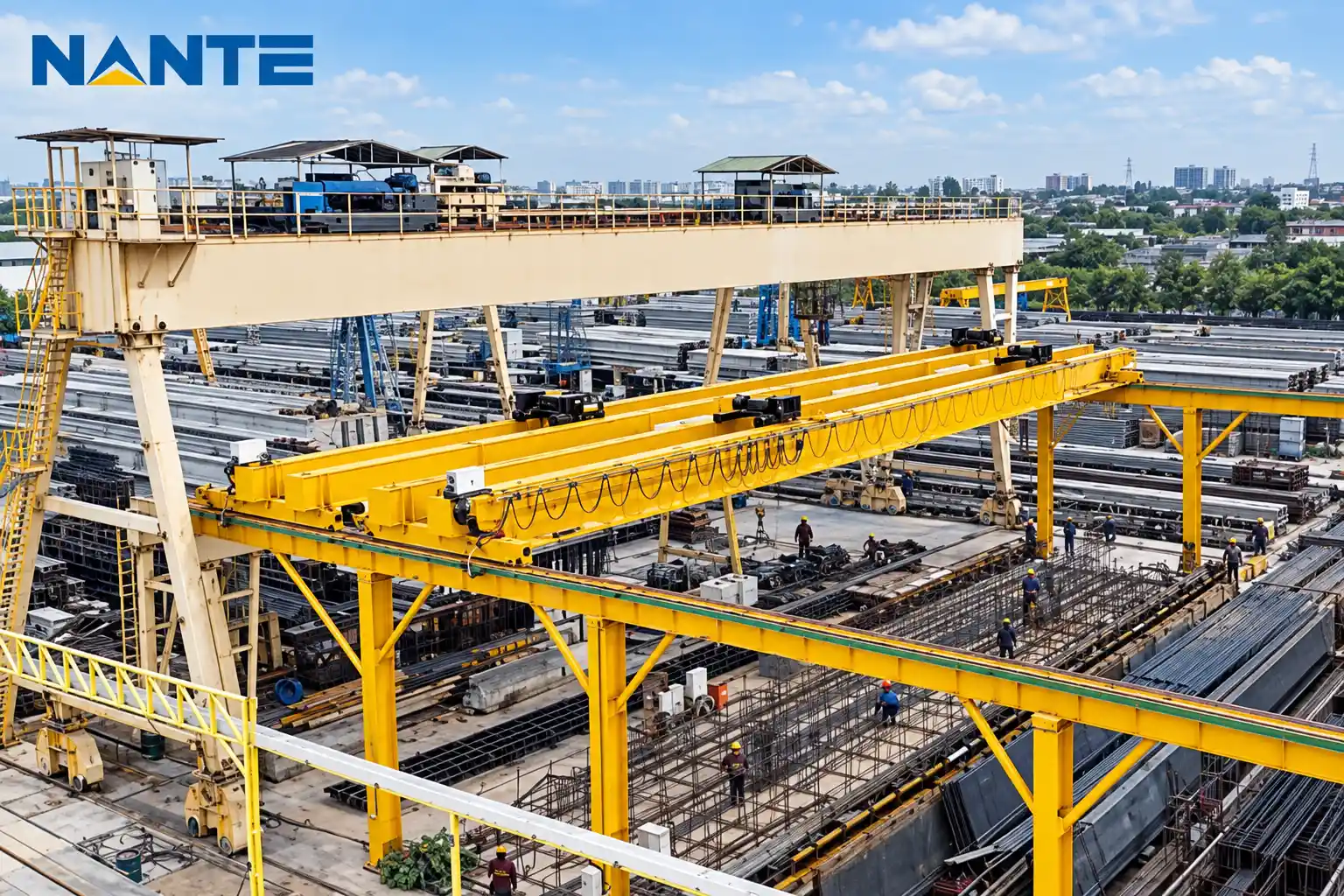

Model screenshots alone are weak evidence. Request a model review against the plant layout, responsibility matrix, and interface list. For an Overhead Crane configuration, the building columns, runway beams, rails, electrification, access, and erection path must be coordinated as one system.

Test the structural analysis process

Finite element analysis is useful when geometry, load paths, local details, fatigue-sensitive areas, or nonstandard interfaces justify it. It is not a substitute for an explicit design basis, transparent load combinations, engineering judgment, or independent checking.

Request an analysis report showing model boundaries, applied loads, restraints, combinations, acceptance criteria, stress results, deflections, stability checks, and conclusions. Colored contours without units, limits, or boundary conditions should not pass review.

Trace the analysis back to fabrication. Critical plate thicknesses, stiffeners, weld categories, bolted joints, camber, and inspection points should agree across calculations, drawings, bills of material, and quality plans.

Test a Crane Engineering Company With a Real Design Brief

Use one controlled bid package

Every crane engineering company under review should receive the same project inputs and answer the same technical questions. Provide a layout, load description, required motions, operating profile, environmental conditions, utilities, building data, installation boundaries, destination, and required standards.

Issue a clarification register and require each bidder to list assumptions, deviations, exclusions, and missing data. This makes engineering quality visible and prevents a low price from being created by omitting runway work, controls, testing, documentation, or commissioning.

The Technical Proposal stage should produce more than a model name. It should explain the proposed arrangement, duty basis, major components, control concept, interfaces, compliance approach, document schedule, tests, and unresolved items.

Run a technical clarification workshop

Give each shortlisted team a realistic change: reduced headroom, a revised load spectrum, a hotter operating zone, an obstacle near the runway, or a plant control-system interface. Observe which disciplines participate and how the change is evaluated.

A capable team will identify affected calculations, drawings, components, cost, schedule, and verification activities. A weak response will accept the change immediately, without recording new assumptions or explaining downstream effects.

Nante Crane describes itself as a designer and manufacturer of cranes and crane components, with research and development in lifting and material-handling technologies. As with any candidate supplier, that positioning should be validated against the project-specific evidence and named engineering resources requested in the bid package.

Evaluate Electrical Engineering and Control Integration

Review the electrical design package

Electrical scope should define incoming power, connected loads, motor and brake control, variable-frequency drives where proposed, protection, grounding, cable systems, panel construction, operator controls, limit devices, alarms, emergency functions, and external interfaces.

Request a single-line diagram, control schematic, load list, I/O list, cable schedule, panel layout, control narrative, and device list at agreed milestones. Confirm how drawing tags, terminal numbers, software versions, and field changes will be controlled in the final as-built package.

Safety functions require explicit acceptance criteria and destination-specific review. The supplier should map applicable requirements, identify exclusions, and distinguish product design evidence from a general management-system certificate.

Check commissioning and maintainability

Controls must be testable and maintainable, not merely functional at factory release. Review access to panels and sensors, fault diagnostics, parameter backups, replacement strategy, remote-access boundaries, and the availability of manuals and training.

The FAT plan should connect each test to a requirement. It may include interlocks, limits, brakes, motions, alarms, control modes, communication interfaces, and documented punch-list closure, while site-dependent functions are reserved for commissioning.

Assess Customized Crane Engineering and Change Control

Demand engineering for the actual environment

Customized crane engineering begins with operating conditions, not optional accessories. Coastal atmosphere, heat, dust, outdoor exposure, hazardous zoning, unusual loads, restricted headroom, automation, or specialized handling attachments can affect structures, mechanisms, electrification, materials, coatings, enclosures, access, and inspection.

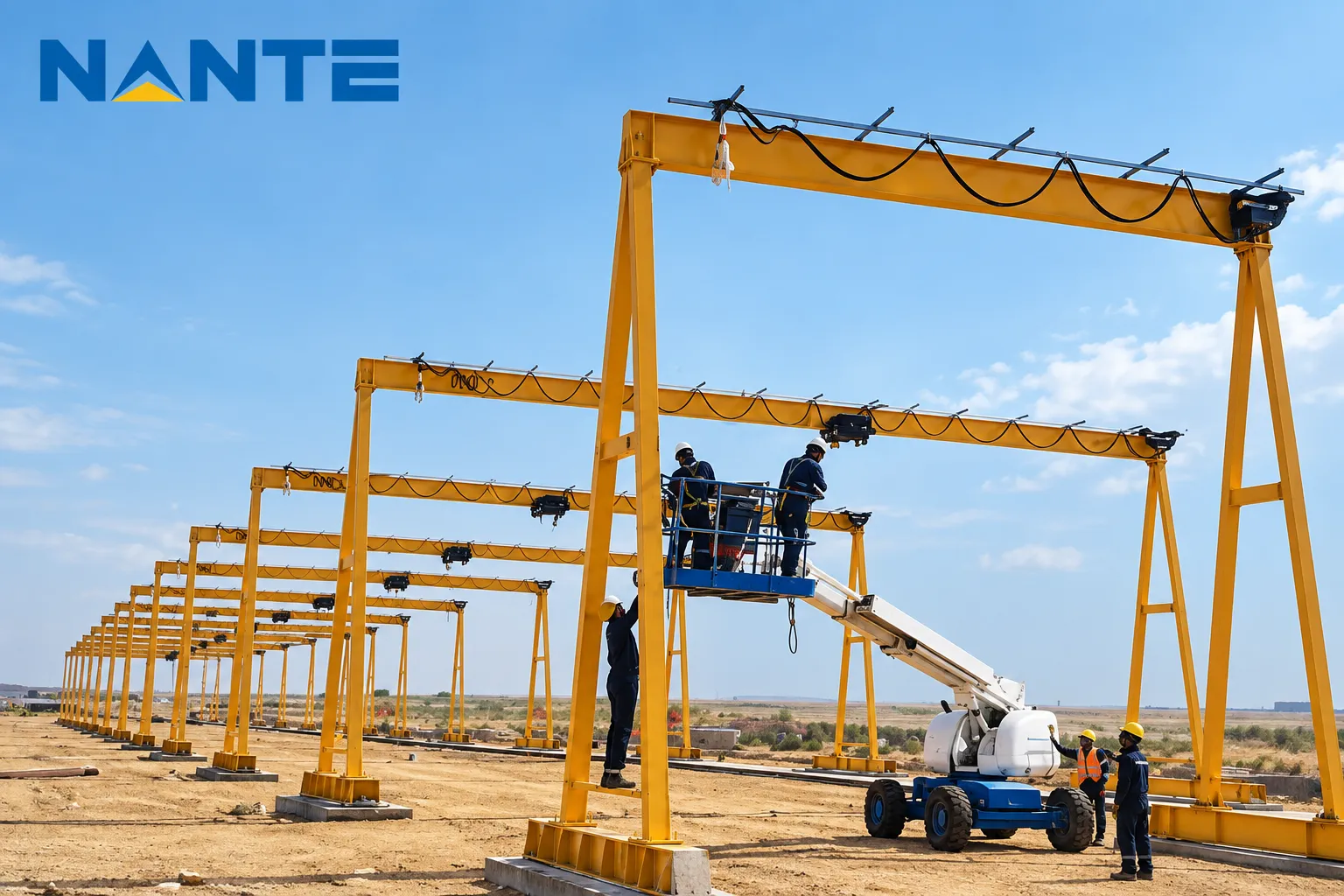

A Custom Crane proposal should show which inputs changed the baseline design and how each change is verified. Generic statements such as “heavy duty” or “special protection” are not measurable specifications.

Ask for an interface matrix covering the crane supplier, building designer, runway contractor, electrical contractor, installer, controls integrator, and project owner. Each load, dimension, utility, signal, deliverable, and approval should have one responsible party.

Control revisions after order placement

Engineering capability remains visible after contract award. The supplier should maintain revision histories, comment-response records, concession requests, nonconformance reports, software baselines, and a controlled list of approved deviations.

Define hold points before fabrication, assembly, shipment, and site energization. Changes that affect capacity, duty, geometry, interfaces, safety functions, compliance, maintenance, or spares should trigger documented impact review and customer approval.

Make the Award Decision on Comparable Evidence

Normalize scope before comparing price

Create a bid-leveling sheet covering equipment, controls, runway interfaces, documents, testing, packing, freight, installation, commissioning, training, spares, warranty, exclusions, and change terms. Record every unresolved technical issue with an owner and due date.

The preferred supplier is not automatically the bidder with the largest department or most elaborate model. It is the team that closes requirements with the clearest evidence, manages interfaces, exposes assumptions early, and provides a verifiable path from design to tested equipment.

Before award, require an agreed technical proposal, drawing and calculation register, document schedule, inspection and test plan, responsibility matrix, deviation list, and final-dossier index. These deliverables turn crane engineering capability into a contractually reviewable process.
