PLC s: Cost, Reliability, and Troubleshooting

Choosing PLC vs relay logic for crane control panels affects cost, fault visibility, spare-parts planning, control flexibility, and automation capability. Buyers also need a clear method for crane control panel troubleshooting and a practical rule for when to use PLC instead of relay for crane applications. The correct choice depends on motions, interlocks, speed control, environment, technical skills, and expansion requirements.

How Does Relay Logic Work?

Relay logic uses hardwired contacts, coils, timers, contactors, switches, and terminals to create control conditions.

When Relay Logic Works Well

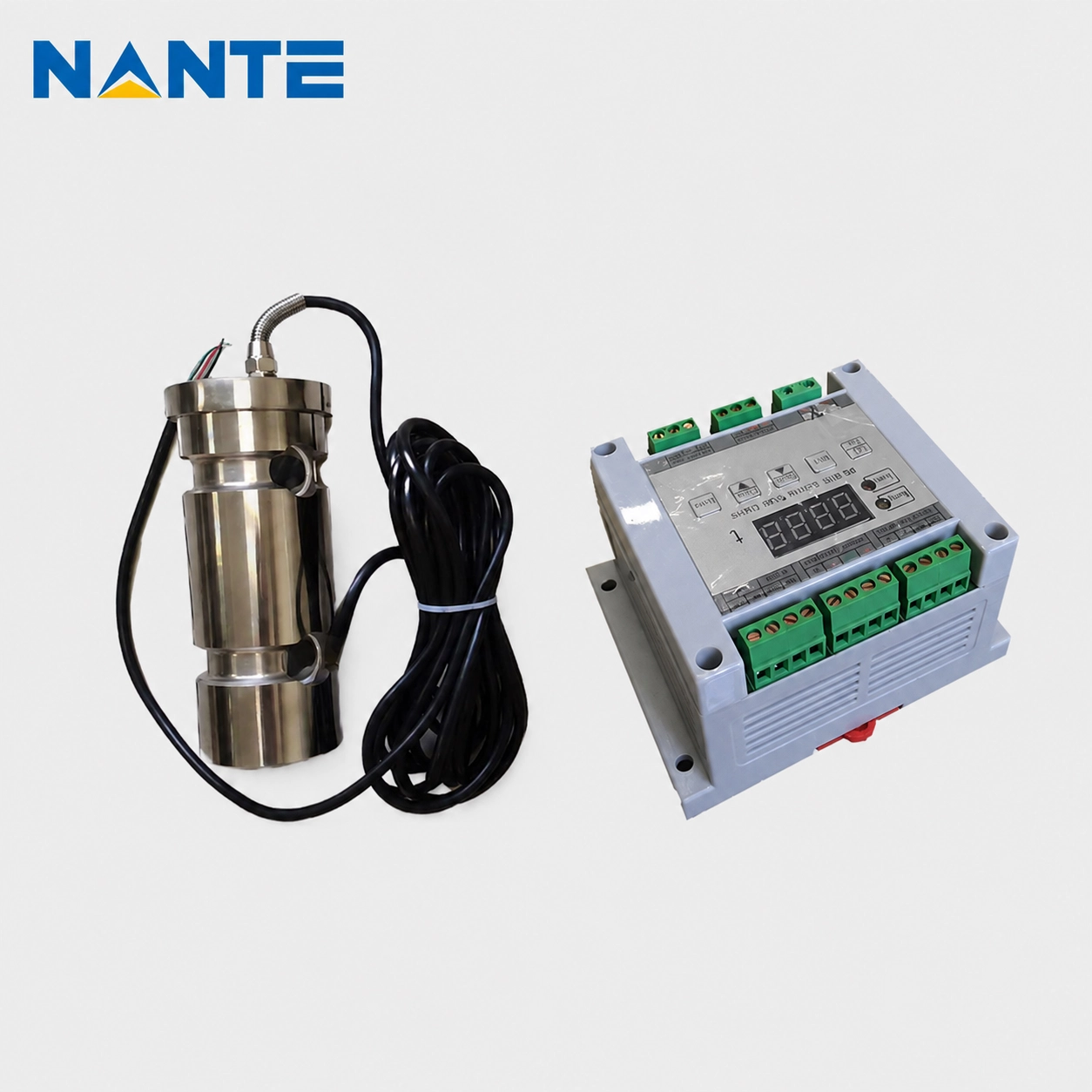

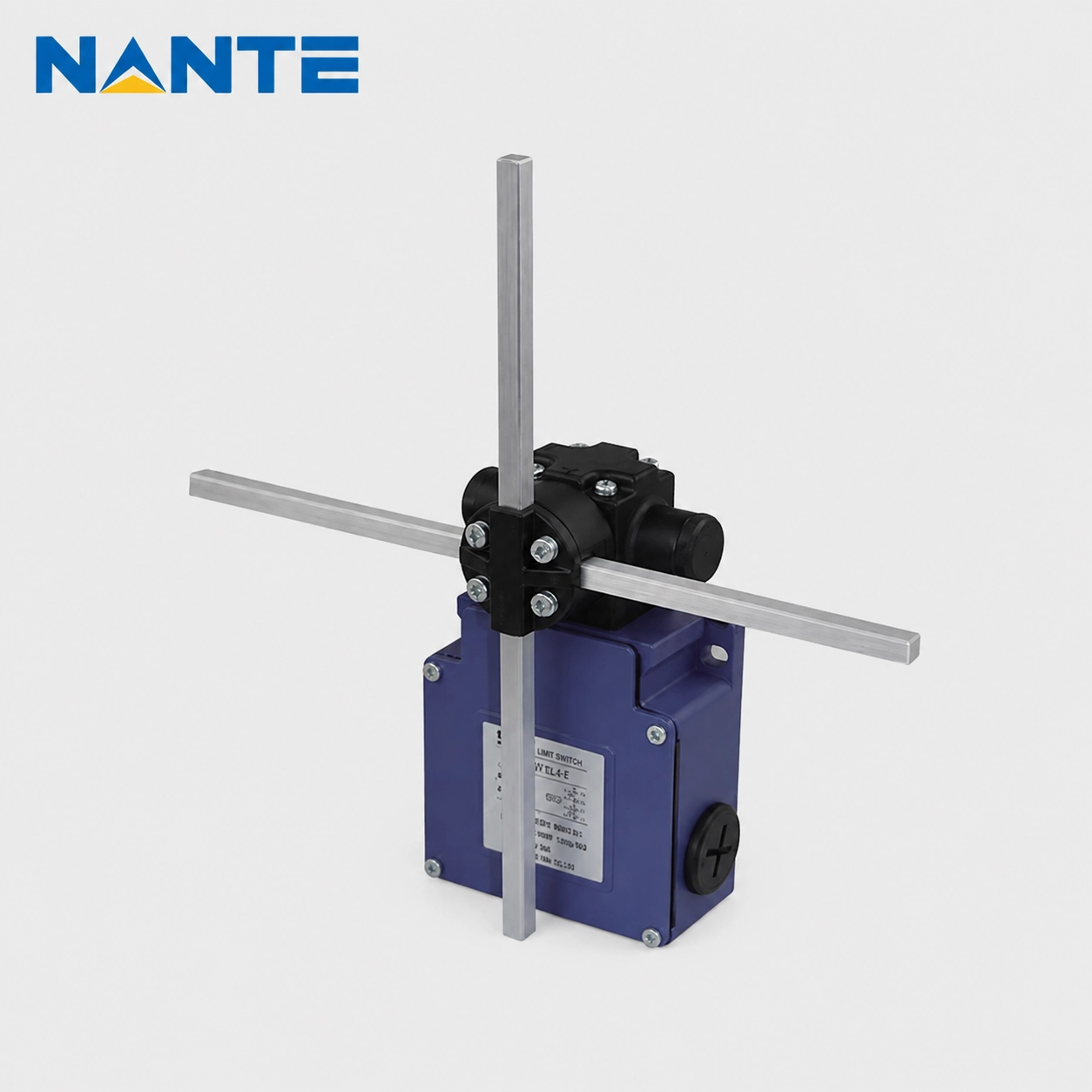

A relay panel can be economical when the crane has a small number of fixed movements. A basic hoist may only require direction control, interlocking, travel limits, overload contacts, and brake control.

A qualified electrician can often trace a small relay circuit with an accurate schematic and suitable test instruments.

Where Relay Logic Becomes Difficult

Each new sensor or interlock normally requires more contacts, conductors, terminals, and drawing changes. A complex panel can require more cabinet space and assembly time.

Fault tracing becomes slower when one command passes through many hardwired contacts before it reaches the final coil.

How Does a PLC-Based Panel Work?

A PLC reads input signals, evaluates programmed conditions, and updates output commands continuously. The PLC can process pushbuttons, limits, overload contacts, position sensors, and motor-drive status.

The PLC normally commands contactors, interface relays, motor drives, brake circuits, and alarms rather than switching a high-power motor directly.

Why PLC Control Supports Complex Logic

A PLC can consolidate many interlocks inside one documented program. The controller can also show live input, output, sequence, and alarm information.

Programmable-controller standards cover programming and communication functions. Standardized languages include ladder diagram, function block diagram, and structured text. PLC Panels Still Use Relays

A PLC panel can still contain interface relays, contactors, protective devices, and hardwired isolation. A standard PLC should not automatically become the only safety device.

Safety-related functions require risk-based design and validation regardless of the main control technology. s Relay Logic: Cost Comparison

Relay logic usually has a lower initial cost for a small, fixed circuit because the hardware count can remain limited.

A PLC panel adds controller hardware, software engineering, I/O verification, and program testing. However, a complex relay panel can lose its price advantage through extra wiring, larger enclosures, more terminals, and longer commissioning.

Buyers should compare the same scope:

1. Each quotation should include the same motors, motions, and speed-control functions.
2. Each quotation should include the same limits, interlocks, alarms, and safety functions.
3. Each quotation should include drawings, terminal plans, backups, and testing.
4. Each quotation should include any operator interface or external communication.

Which System Is More Reliable?

Neither architecture is universally more reliable. A small relay system can provide direct operation, while a well-designed PLC system can reduce physical wiring in a complex application.

Both systems remain sensitive to unstable control power, loose terminals, heat, moisture, dust, vibration, electrical interference, and poor grounding. Common panel fault sources also include relay wear, PLC signal loss, drive alarms, and grounding problems. lete cabinet design matters more than the controller label. The designer must select suitable ratings, enclosure protection, grounding, circuit separation, heat control, and safety functions.

Crane Control Panel Troubleshooting

A technician should follow the signal path from the operator command to the final actuator. Random component replacement can hide the real fault.

Troubleshooting Relay Logic

A technician should verify the supply, control voltage, emergency-stop circuit, overload contacts, and limits. The technician should then trace the requested motion through the approved schematic.

A clicking relay does not prove that its contacts carry voltage correctly. The technician must also verify relay coils, auxiliary contacts, brake outputs, contactors, and motor commands.

Troubleshooting PLC Control

A technician should verify PLC power, processor status, field inputs, interlocks, outputs, and downstream equipment. The technician should record active alarms before a reset removes useful evidence.

An active PLC output does not prove that the contactor, brake, cable, or motor circuit is healthy. A disciplined diagnostic sequence should check power, I/O signals, field wiring, control voltage, communications, interlocks, and alarm history before anyone changes program logic. Parts and Technical Skills

Relay replacement requires the correct coil voltage, contact arrangement, current rating, terminal layout, mounting method, and certification.

PLC replacement requires the controller model, module types, firmware, editable source program, software version, passwords, communication settings, and current backups.

Relay troubleshooting requires schematic-reading and electrical-testing skills. PLC troubleshooting requires the same skills plus software access, I/O knowledge, online monitoring, and backup capability.

The supplier should provide schematics, terminal diagrams, an I/O list, editable program files, parameter backups, and a critical spare-parts list.

Expansion and Automation Capability

Relay logic remains practical when the functions will stay fixed. Each major expansion can require additional devices and extensive rewiring.

PLC control is more suitable when the crane requires more sensors, several variable-speed mechanisms, an HMI, automatic sequences, position control, alarm history, data exchange, or coordinated movements.

When to Use PLC Instead of Relay for Crane Applications

The buyer should choose relay logic when the crane has simple motions, few interlocks, no communication, and little need for later changes.

The buyer should prefer PLC control when the crane has complex conditions, several motor drives, detailed diagnostics, automatic positioning, anti-sway functions, data logging, or external-system integration.

What Information Should Buyers Confirm?

A useful quotation requires confirmed project data:

• The buyer should provide the crane type, capacity, lifting height, and duty.
• The buyer should provide motor powers, brake data, supply voltage, frequency, and control voltage.
• The buyer should provide motions, speeds, controls, limits, sensors, and interlocks.
• The buyer should provide environmental and enclosure requirements.
• The buyer should provide automation, communication, standards, documentation, and test requirements.

FAQ

Is a Relay Crane Control Panel Always Cheaper?

A relay panel is usually cheaper for a small fixed circuit. A complex relay design can cost more after the buyer includes wiring, cabinet space, engineering, and testing.

Can a Crane Use PLC Control and Relay Logic Together?

A crane can use a PLC for operating logic and relays or contactors for interface and power-switching functions. The system can also use a separately designed safety architecture.

Which System Is Easier to Troubleshoot?

A small relay circuit can be easy to trace. A PLC system can provide better visibility when the crane has many inputs, outputs, alarms, and interlocks.
