How to Calculate Jib Crane Working Radius

Jib crane working radius calculation determines how far a load can travel from the slewing axis and which parts of a work area the crane can serve. The result affects column location, foundation design, aisle clearance, load positioning, and interference control.

The basic process is straightforward: establish the boom length, locate the load centerline, project the horizontal distance, and apply the available rotation angle. The final layout should also account for the hoist, trolley, hook block, structural deflection, surrounding equipment, and required exclusion zones.

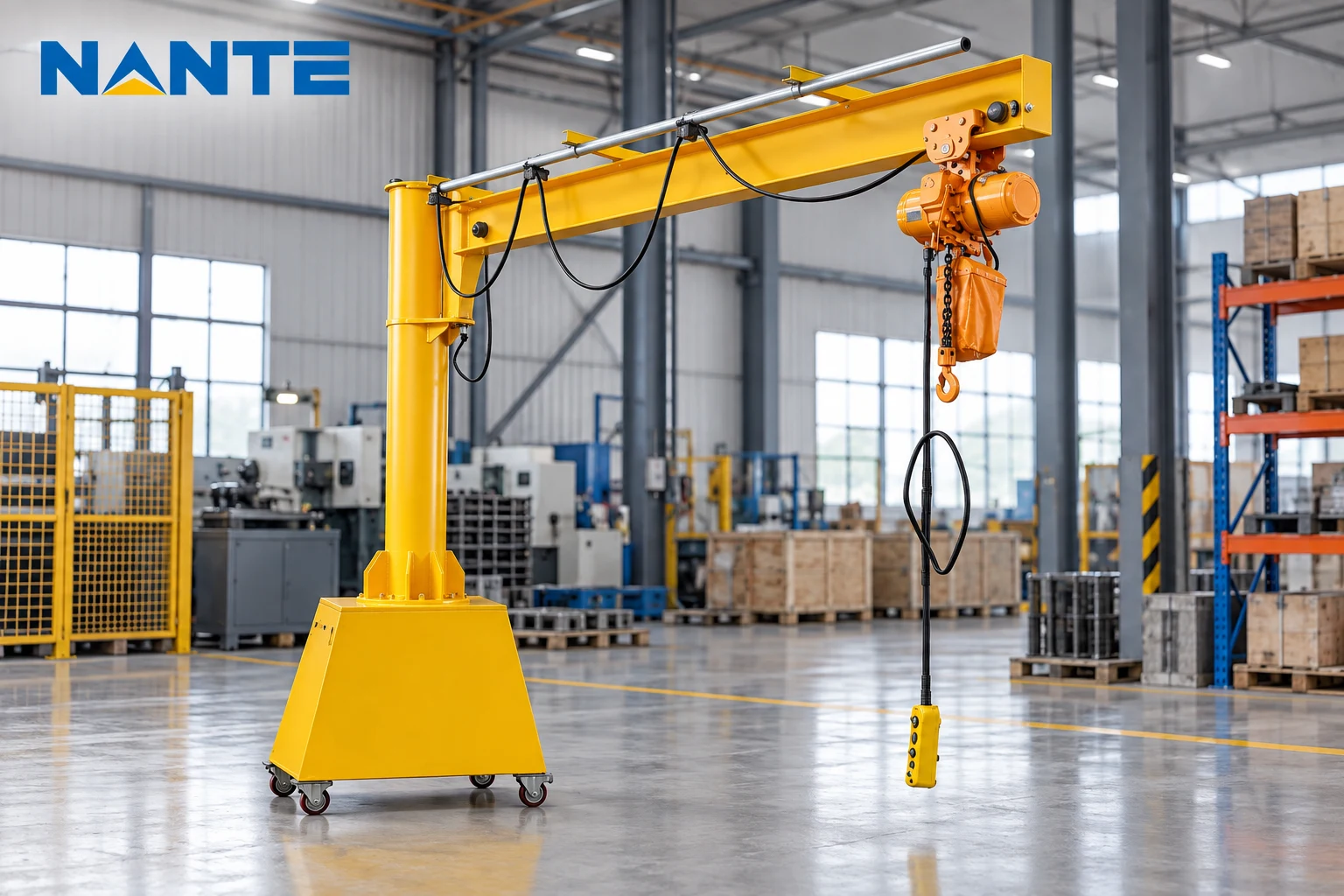

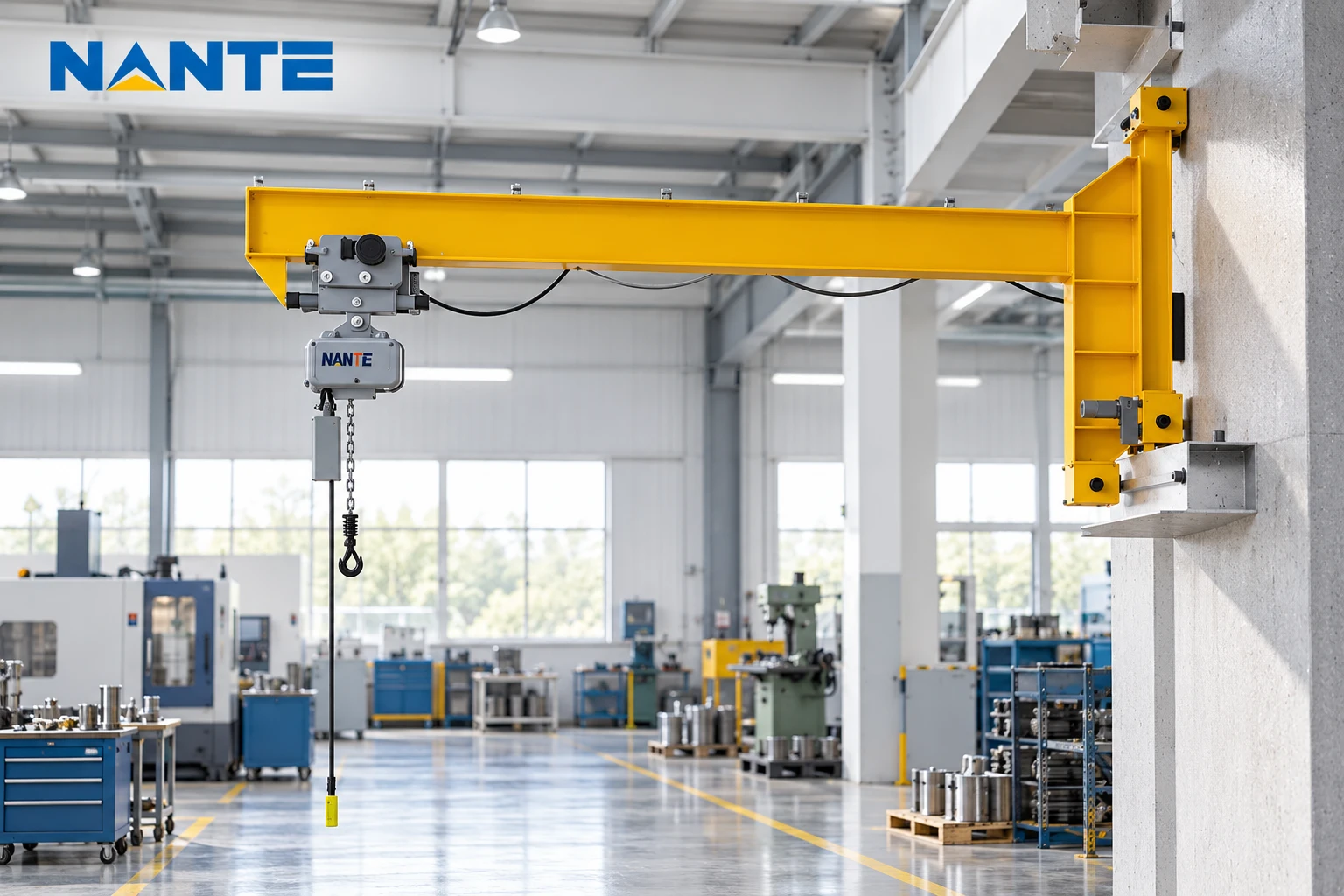

What Is Jib Crane Working Radius?

Radius, Reach, and Outreach

A jib crane radius is the horizontal distance from the crane’s slewing axis to the centerline of the suspended load. It is normally measured at the hook centerline, not at the end of the steel boom.

Jib crane reach calculation often refers to the maximum horizontal distance available to the hook. Jib crane outreach usually describes the distance from the mounting column, wall bracket, or foundation reference to the farthest hook position.

These terms can describe slightly different reference points. A purchasing specification should define the datum clearly so that engineering drawings and supplier quotations use the same measurement.

Identify the Correct Reference Point

The slewing axis is the central vertical line around which the boom rotates. For a free-standing jib crane, this axis is usually inside the support column. For a wall-mounted design, the axis may be offset from the wall face.

The working radius should be measured to the load’s center of gravity or the hook centerline, depending on the design document. Rigging length does not normally increase the crane’s structural radius, but it can change the load’s actual position and clearance requirements.

A layout drawing should show:

• Slewing axis
• Boom root and boom tip
• Trolley travel limits
• Hook centerline
• Maximum and minimum radius
• Nearby walls, machines, columns, and walkways

Jib Crane Working Radius Calculation Formula

Basic Horizontal Radius

For a level boom with a trolley, the practical radius can be estimated as:

R = E + T + H

Where:

• R = working radius
• E = horizontal distance from the slewing axis to the boom reference point
• T = trolley travel from that reference point
• H = horizontal hook or load-center offset

When the boom length is measured from the slewing axis and the trolley reaches the boom tip, the simplified calculation becomes:

Rmax ≈ L + H

Here, L is the effective boom length. The value should come from the engineering drawing rather than the overall steel length, because end plates, trolley stops, and non-load-bearing sections may reduce usable travel.

Inclined or Articulated Booms

For an inclined boom, only the horizontal projection contributes to radius. A simplified projection is:

Lh = L × cos(α)

Where:

• Lh = horizontal boom projection
• L = boom length
• α = boom angle measured from the horizontal plane

The complete layout calculation may then be written as:

R = E + (L × cos(α)) + H

Articulated jibs, knuckle booms, and offset mounting arrangements require a segment-by-segment calculation. The hook position should be evaluated at every operating configuration, especially when the load path passes near structures.

For a final design, the supplier’s approved load chart and general arrangement drawing should control the dimensions.

Rotation Angle and Jib Crane Coverage Area

180-Degree Coverage

A 180-degree jib crane serves a semicircular sector. This arrangement is common when a wall or process boundary blocks the unused side of the crane.

Maximum radius

.—————.

.-‘ ‘-.

.’ ‘.

/ \

O—————————– Reference line

180° swept sector

For a full-radius layout with no internal exclusion zone:

A180 = 180/360 × πR² = 0.5πR²

A 180-degree crane can be efficient in a narrow work bay, but the mounting position must be checked carefully. The dead side of the crane should not be counted as usable coverage.

A physical stop, electrical limit, or control setting may define the rotation range. The selected method should be documented in the equipment specification.

270-Degree Coverage

A 270-degree crane covers three quadrants and leaves a 90-degree restricted sector.

.——-.

.-‘ ‘-.

.’ |

/ |

O——————‘

270° swept area

The theoretical coverage area is:

A270 = 270/360 × πR² = 0.75πR²

The missing quadrant may be reserved for a building column, another crane, a production line, or a protected pedestrian route. The layout team should show the restricted sector on the plan instead of assuming that the boom can operate through it.

Rotation limits should be coordinated with trolley travel limits. A load that is reachable at one angle may become inaccessible when the boom approaches a stop.

360-Degree Coverage

A 360-degree jib crane can rotate through a complete circle when the structure, power supply, controls, and surrounding clearances allow it.

.———–.

.-‘ ‘-.

.’ ‘.

/ \

| O |

\ /

‘. .’

‘-. .-‘

‘———–‘

360° coverage

The theoretical area is:

A360 = πR²

Actual coverage may be smaller because of foundation guards, columns, building walls, crane-to-crane interference, or an inner no-load zone around the support column.

When the crane has an inner radius r, the usable swept area is:

A = θ/360 × π(R² − r²)

This ring-sector formula is more useful for factory layouts than the simple circle formula.

For more detail on selecting a rotation range, review the Rotation Angle engineering guidance.

Worked Jib Crane Reach Calculation

Example Inputs

Assume the layout team has the following preliminary data:

• Distance from slewing axis to boom reference: 2 ft
• Effective trolley travel: 16 ft
• Hook centerline offset: 1 ft
• Required rotation: 270 degrees
• Inner restricted radius: 2 ft

The maximum working radius is:

R = 2 + 16 + 1 = 19 ft

The crane can therefore position the hook centerline up to approximately 19 ft from the slewing axis, subject to the manufacturer’s load chart and deflection limits.

Calculate the Effective Coverage Area

The theoretical 270-degree area without an inner exclusion zone is:

A270 = 0.75 × π × 19² ≈ 850 ft²

Including the 2-ft inner restricted radius:

A = 0.75 × π × (19² − 2²) ≈ 841 ft²

The difference is small in this example, but it becomes more important when the maximum radius is shorter or the central obstruction is larger.

The calculation does not prove that every point inside the sector is safe to lift. Floor loading, headroom, load swing, rigging geometry, and process restrictions must still be checked.

Layout Checks Before Finalizing the Radius

Obstructions and Exclusion Zones

A plan view should overlay the jib crane coverage sector on the building layout. Check for:

• Fixed machinery and storage racks
• Doors, columns, and maintenance platforms
• Overhead ducts, lights, and sprinkler systems
• Forklift aisles and pedestrian routes
• Adjacent cranes or monorails
• Areas where suspended loads are prohibited

A slightly shorter radius may provide better operational coverage if it avoids a structural column or reduces the need for restrictive rotation stops.

Foundation, Wall, and Structural Interfaces

The support arrangement must resist vertical load, overturning moment, horizontal reaction, and torque from acceleration and braking. The radius calculation helps determine the moment arm, but it does not replace a foundation or structural review.

For a free-standing crane, the base plate, anchor system, concrete foundation, and local floor capacity require confirmation. For wall-mounted and traveling designs, the supporting steelwork and building connections must be checked.

The layout package should identify who is responsible for civil work, reinforcement, anchor installation, power supply, and commissioning.

Headroom and Hook Height

Working radius is a horizontal value, but the load path is three-dimensional. The hoist may require additional headroom above the boom, while the hook and rigging require clearance below it.

A project drawing should record:

• Floor-to-boom elevation
• Maximum lifting height
• Minimum hook height
• Hoist body dimensions
• Rigging and load dimensions
• Clearance from roof steel and services

The Jib Crane Dimensions reference can help organize the dimensional information required for a technical review.

How to Specify a Jib Crane for Procurement

Data Required for a Comparable Quote

A procurement request should include more than capacity and boom length. Useful inputs include:

• Rated capacity and maximum load
• Required working radius and minimum radius
• Rotation angle: 180°, 270°, or 360°
• Lifting height and hook approach
• Duty cycle and operating hours
• Indoor or outdoor environment
• Temperature, dust, moisture, and corrosive exposure
• Power supply and control method
• Mounting type and foundation conditions
• Required standards and inspection scope
• Delivery location and installation responsibility

The Jib Crane Boom product page provides a starting point for discussing boom-based workstation lifting arrangements.

Drawings and Verification Records

Before order release, the supplier should provide a general arrangement drawing showing the slewing axis, boom length, trolley limits, hook positions, and rotation stops.

The purchasing file should also identify:

• Load chart and design assumptions
• Structural calculation responsibility
• Welding and inspection records where applicable
• Factory acceptance test plan
• Electrical and control documentation
• Installation and commissioning boundaries
• Recommended spare parts and maintenance information

The exact scope depends on the project and destination. A normalized quotation makes it easier to compare suppliers without confusing a lower equipment price with a lower total project cost.

Supplier Review and Project Application

Match the Supplier to the Layout Risk

A technically suitable supplier should be able to convert the layout inputs into a project-specific arrangement. The review should cover the crane structure, hoist and trolley selection, rotation control, foundation interface, documentation, testing, and service support.

Nante Crane presents jib crane and crane-component information for industrial buyers evaluating lifting equipment. The relevant question for a project team is whether the proposed configuration, documents, and support scope match the actual operating environment.

A supplier comparison should request the same drawing and data fields from each bidder. That approach exposes differences in usable outreach, included controls, installation assumptions, and excluded civil work.

FAQ

Is jib crane radius the same as boom length?

Not always. Radius is measured from the slewing axis to the load centerline. Boom length may start at a different reference point and may not include trolley or hook offsets.

How is jib crane coverage area calculated?

For a simple sector, use A = θ/360 × πR². If an inner restricted radius exists, use A = θ/360 × π(R² − r²). The final operational area must remove obstructions and prohibited lifting zones.

Does a larger radius always improve productivity?

No. A longer outreach can increase overturning moment, structural demand, deflection, and foundation requirements. The best radius is the shortest one that covers the required pick-and-place points with adequate clearance.

Can rotation stops be changed after installation?

Changes may affect structural clearances, electrical limits, controls, and the approved operating envelope. Any revision should be reviewed and documented by the responsible engineering team.

Prepare a Project-Specific Radius Review

A purchasing team preparing a jib crane inquiry should submit the required capacity, hook height, boom reference, desired radius, rotation angle, load dimensions, duty cycle, floor or wall conditions, and a marked-up layout.

The engineering review can then confirm the hook envelope, coverage sector, interference points, foundation inputs, and documentation scope. For a project-specific quotation and layout review, submit the marked drawing and operating data through the jib crane inquiry contact page.
