How to Choose the Right Jib Crane Capacity

Selecting the right jib crane capacity requires more than matching the crane to the heaviest product in a facility. The purchasing team must also account for the load’s working radius, lifting accessories, operating frequency, duty class, support structure, and possible future production changes.

An undersized crane creates safety and productivity risks. An oversized crane can increase structural, electrical, installation, and operating costs without adding useful value. A sound capacity decision begins with a complete load profile and ends with a supplier-verified technical specification.

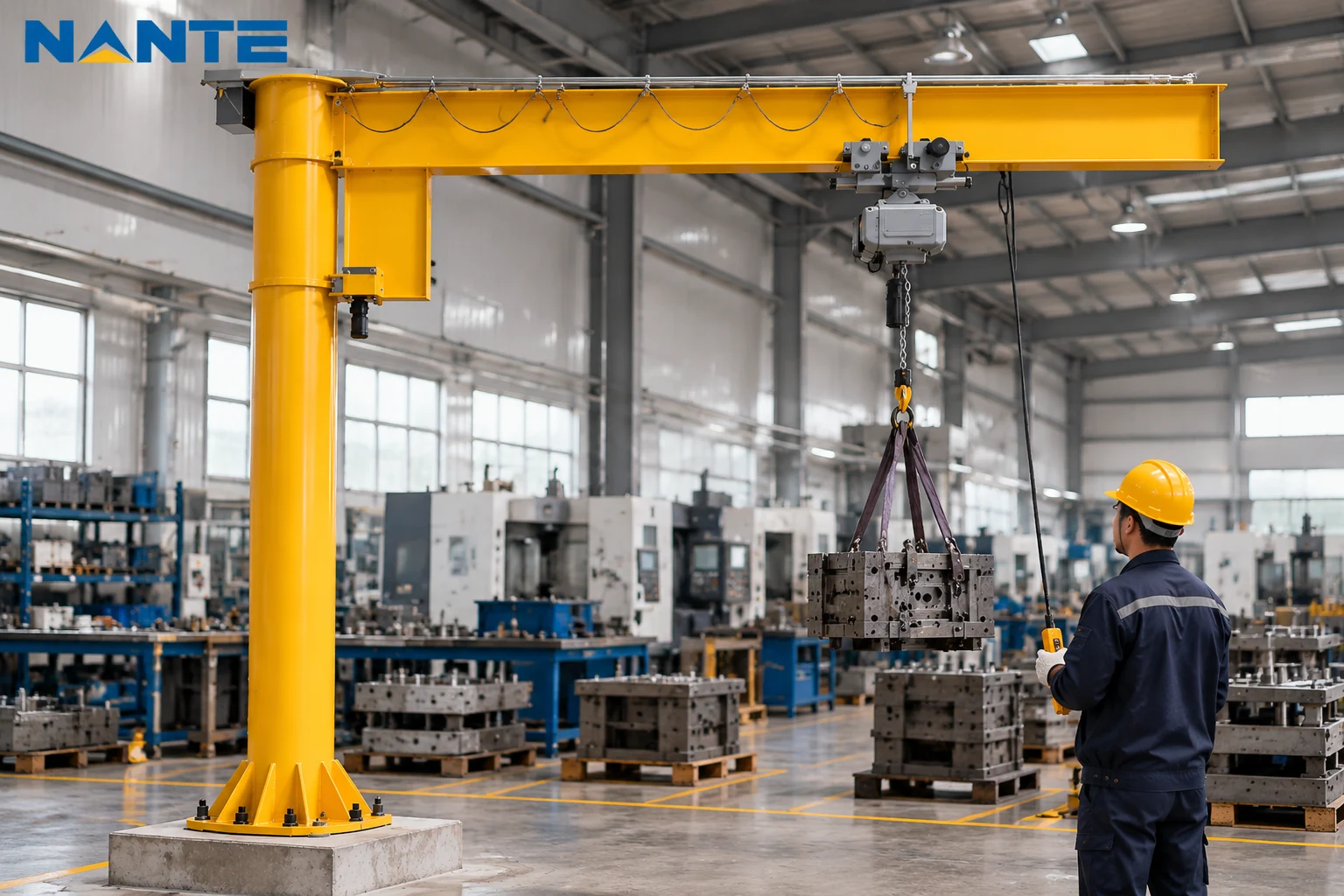

What Jib Crane Capacity Actually Means

Rated Capacity Versus Practical Lifting Capacity

Jib crane capacity is the maximum rated load that the crane is designed to lift under defined operating conditions. It normally refers to the suspended load, but the final design must clarify how the hoist, hook, slings, spreader beams, grabs, lifting magnets, and other accessories are included.

The practical lifting capacity is therefore limited by the weakest approved component in the complete lifting system. A hoist may be rated for a certain load while the hook block, trolley, boom, foundation, or anchoring arrangement requires a lower limit.

A product page such as this Jib Crane reference can help identify the crane configuration, but the final rating must come from the project-specific design and documentation.

Capacity at the Working Radius

For a jib crane, capacity is closely linked to the working radius. The boom and support structure experience different forces when the load moves farther from the column or wall.

A capacity rating should therefore be reviewed together with:

• Maximum working radius
• Minimum and maximum hook position
• Boom length and usable travel
• Available headroom
• Rotation angle
• Foundation or wall connection
• Load position during lifting and slewing

A crane that lifts a given load near the column may require a different design when the same load is handled at the end of the boom.

Start With the Complete Load Envelope

Identify the Heaviest Planned Load

The first input is the gross weight of the heaviest load that will be lifted. This should include the product, pallet, container, fixture, tooling, and any material that remains attached during the lift.

The purchasing team should review both current and planned loads. A crane selected only for today’s average load may become a bottleneck when a larger die, motor, mold, or assembly enters production.

Useful information includes:

1. Heaviest load in normal operation
2. Heaviest load during maintenance or changeover
3. Load dimensions and center of gravity
4. Lifting points and attachment method
5. Required hook height
6. Maximum radius at which the load must be handled

Include Lifting Accessories

Lifting accessories contribute to the suspended weight. A sling set may be light, while a spreader beam, lifting frame, magnet, vacuum lifter, or custom fixture can add a significant amount.

The crane hook and connection arrangement should be specified as part of the capacity review. A Crane Hook reference is useful when comparing hook-block configurations, but the working load limit and compatibility must be confirmed for the selected hoist.

The design load should consider the full lifted assembly:

Gross lifted load = product or material + fixture + rigging + lifting accessory

The resulting figure should be checked against the supplier’s rated capacity and the applicable engineering and safety requirements.

How to Calculate Jib Crane Capacity

A Practical Calculation Method

A basic capacity-screening calculation can be written as:

Required rated capacity ≥ maximum gross lifted load × project margin

The project margin is not a universal number. It depends on the design standard, dynamic effects, operating method, environment, and the supplier’s engineering basis. It should not be used to replace a formal design review or to justify lifting beyond the crane nameplate.

For example, assume a production line handles:

• Product: 1,650 kg
• Fixture: 120 kg
• Slings and hardware: 30 kg
• Required project margin: established by the design team

The gross lifted load is 1,800 kg. A 1-ton crane is clearly unsuitable. A 2-ton jib crane may be considered only after checking the working radius, duty class, structural loads, and accessory ratings. If the load must be handled at the maximum boom reach or the process is demanding, the design team may select the next capacity class.

Worked Example: Why Radius Changes the Decision

Suppose a 2,400 kg assembly must be lifted at a radius near the end of a long boom. The gross load is already above a 2-ton rating before accessories and project-specific allowances are considered.

A 3-ton jib crane may provide a better starting point, but the supplier still needs to verify:

• Boom deflection at the design radius
• Column or wall reaction forces
• Foundation bolts and concrete capacity
• Hoist and trolley selection
• Slewing forces during rotation
• Operating frequency and expected cycles

This is why “how to calculate jib crane capacity” should be treated as a specification process, not as a single arithmetic exercise.

Match Capacity to Frequency and Duty Class

Load Frequency Affects Equipment Selection

Two cranes with the same rated load may require different components if one operates occasionally and the other runs throughout every shift.

The project brief should describe:

• Lifts per hour and per shift
• Average lifted load
• Percentage of lifts at or near maximum capacity
• Travel and slewing frequency
• Daily, weekly, and annual operating hours
• Indoor, outdoor, corrosive, dusty, or high-temperature conditions

High-frequency lifting can influence hoist motor selection, brake duty, trolley design, controls, bearings, gearbox sizing, and maintenance intervals.

Specify Duty Class Separately From Capacity

Capacity answers “how heavy is the load?” Duty class helps answer “how often and under what load spectrum will the crane work?” These are related but different decisions.

A low-frequency maintenance crane may not require the same design basis as a production crane that repeatedly lifts near its rated load. The quotation should identify the proposed duty classification, load spectrum assumptions, design life, and inspection requirements.

For additional planning context, the purchasing team can review these duty class planning notes and then request the supplier’s exact classification basis.

Compare 1 Ton, 2 Ton, 3 Ton, and 5 Ton Jib Cranes

Capacity Selection Table

Choosing a 1 Ton or 2 Ton Jib Crane

A 1 ton jib crane can be appropriate when the maximum gross lifted load remains comfortably below 1,000 kg and the accessory package is light. It is often considered for workstation handling, tool changes, and maintenance tasks.

A 2 ton jib crane is more suitable when loads approach the upper end of a 1-ton design or when a heavier fixture may be introduced. The additional capacity should not be selected without checking whether the existing slab, column, or wall can accept the increased reactions.

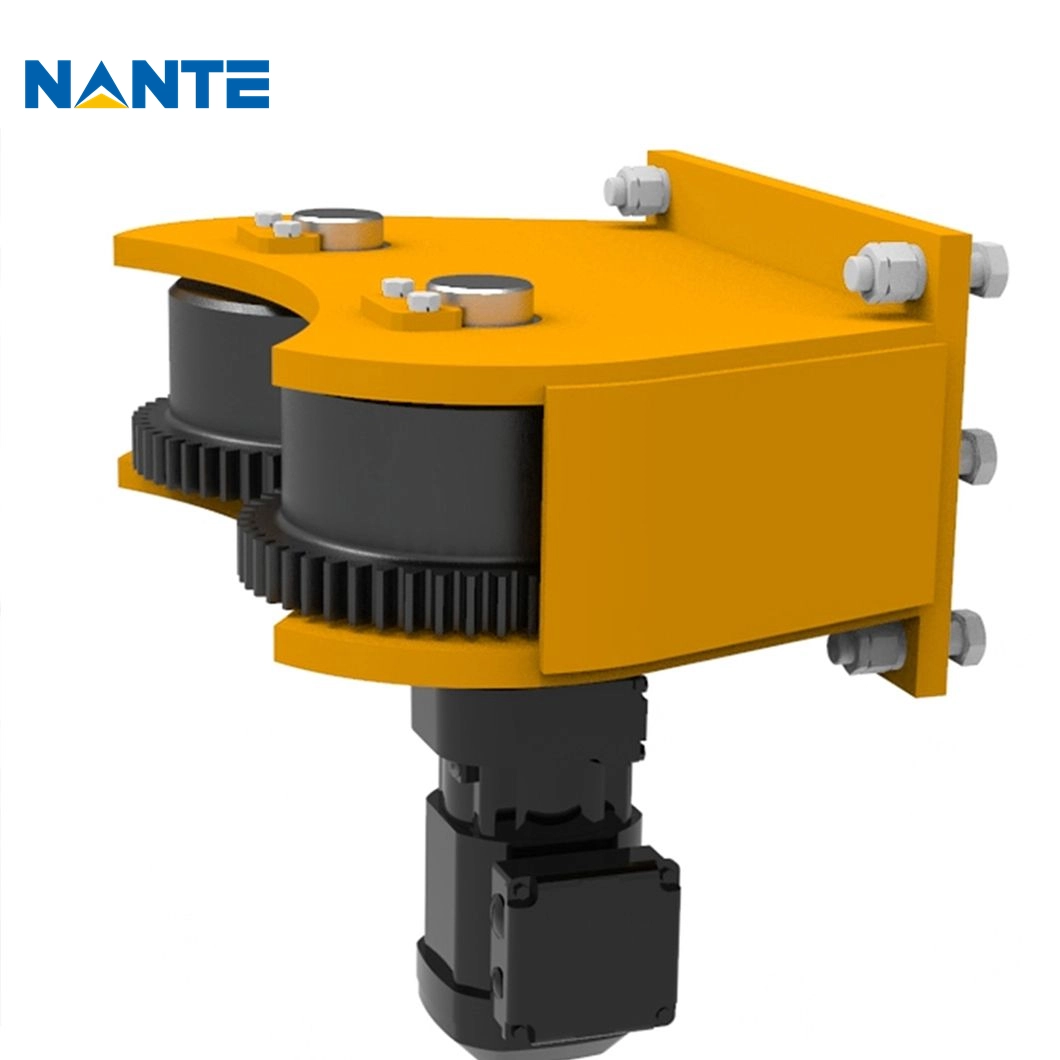

Choosing a 3 Ton or 5 Ton Jib Crane

A 3 ton jib crane may fit facilities handling medium-heavy machinery or repeated changeovers. It can provide useful headroom when the current maximum load is around 2 tons but future equipment is expected to become heavier.

A 5 ton jib crane is a major structural and commercial decision. The project may require reinforced foundations, larger electrical equipment, stronger anchoring, more substantial boom construction, and a higher-duty hoist. The capacity should be justified by the load schedule and future handling plan rather than selected only as a general safety buffer.

Check the Hoist, Hook, and Crane Structure Together

Hoist and Hook Compatibility

The hoist must match the rated capacity, lift height, lifting speed, control method, duty class, and operating environment. A Wire Rope Hoist may be appropriate for industrial lifting, but the supplier should confirm drum, rope, reeving, brake, motor, and control specifications.

The hook block, rope, sheaves, trolley, and upper limit arrangement must also be compatible. A high-capacity hoist cannot compensate for an under-rated hook or an unsuitable support structure.

Foundation, Wall, or Column Support

Freestanding, wall-mounted, wall-travelling, and workstation jib cranes transfer forces differently. The support method affects installation cost, usable floor space, rotation, maintenance access, and allowable capacity.

The supplier should receive foundation drawings, slab thickness and reinforcement information, column details, wall construction, clearance constraints, and any restrictions on drilling or welding. Structural assumptions should be documented before the quotation is compared on price.

Allow for Future Requirements

Review Planned Production Changes

Capacity selection should consider foreseeable changes such as larger molds, heavier motors, new fixtures, automation upgrades, or expanded maintenance responsibilities.

A modest capacity reserve may be justified when the future load is well defined. However, selecting a much larger crane without checking the building structure can create avoidable cost and installation problems.

Put the Assumptions in the Purchase Specification

The request for quotation should state:

• Rated capacity and maximum gross load
• Working radius and boom length
• Lift height and headroom
• Duty class and load spectrum
• Lifting accessories
• Rotation and control requirements
• Operating environment
• Foundation or support information
• Applicable standards and documentation
• Installation, testing, training, warranty, and spare-parts scope

Clear assumptions make supplier quotations comparable and reduce change orders after engineering begins.

Verify the Supplier Before Ordering

Request Evidence, Not General Claims

A technically complete quotation should identify the design basis and provide drawings, calculations or load data where appropriate, component specifications, inspection records, test plans, and operating manuals.

The purchasing team should also confirm how the supplier handles factory testing, installation supervision, commissioning, operator training, preventive maintenance, spare parts, and warranty support.

Use a Project-Specific Review

Nante Crane presents jib crane and crane-component information through its official site. For a real project, the supplier review should still be based on the submitted load schedule, layout, duty class, support conditions, and documentation requirements rather than on a generic capacity label.

FAQ

Is jib crane lifting capacity the same as hoist capacity?

Not automatically. The crane rating must be coordinated with the hoist, hook, trolley, boom, support structure, and lifting accessories. The lowest approved limit governs the complete system.

Can a 2 ton jib crane lift 2 tons at any radius?

Not necessarily. The rated capacity may depend on the specified working radius, configuration, support method, and operating conditions. The approved load chart and nameplate should control operation.

Should a future load justify moving from 3 tons to 5 tons?

Only when the future load, frequency, and handling location are reasonably defined. A larger crane may require stronger foundations, supports, controls, and installation work, so the total project impact should be reviewed.

What information should be included in a jib crane capacity inquiry?

The project brief should include maximum gross load, accessories, radius, boom length, lift height, duty class, operating hours, load frequency, environment, support details, controls, standards, delivery location, and installation scope.
