How to Calculate Crane Travel Motor Power

Crane travel motor power calculation starts with the force required to move the bridge or trolley. The motor must overcome rolling resistance, acceleration force, slope, wind, and mechanical losses at the specified travel speed.

The result is not simply a function of crane capacity. A light trolley carrying a heavy load may require less power than a heavy bridge moving at high speed. Correct sizing also depends on wheel diameter, gearbox efficiency, duty cycle, starts per hour, and the number of driven wheels.

What the Calculation Must Define

Identify the Moving Mass

The first step is to define the mass that the travel mechanism must move.

For bridge travel, include:

• Bridge girders and end trucks
• Trolley or hoist
• Rated lifted load
• Hook block, grabs, magnets, or other load-handling tools
• Festoon cable drag or other attached equipment, when significant

For trolley travel, include the trolley frame, hoist, hook block, rated load, rigging, and any equipment permanently mounted on the trolley. Do not include the bridge because the trolley motor does not move the complete crane structure.

Use mass in kilograms for the calculation. If the project data is given as weight in newtons, divide by gravitational acceleration to obtain mass.

Separate Bridge and Trolley Travel

Bridge travel and trolley travel use the same basic physics, but their operating conditions are different.

Bridge travel usually involves a larger moving mass, longer rail distance, multiple drive units, and possible rail alignment or wind effects. Trolley travel normally has a shorter path but may require frequent starts, stops, and positioning movements.

The calculation should therefore produce two separate results:

1. Required bridge travel motor power
2. Required trolley travel motor power

This separation prevents a bridge drive from being selected using trolley assumptions, or an end carriage motor from being sized only from the lifted load.

Build the Total Tractive Force

Wheel Resistance

Rolling resistance is commonly expressed as:

Fᵣ = Cᵣ × m × g

Where:

• Fᵣ = rolling resistance in newtons
• Cᵣ = total rolling-resistance coefficient
• m = moving mass in kilograms
• g = gravitational acceleration, approximately 9.81 m/s²

The coefficient should reflect wheel bearing losses, rail contact, flange friction, rail condition, and alignment. It must come from the design basis, test data, or an accepted engineering standard rather than an unsupported guess.

A poorly aligned rail or damaged wheel can increase resistance substantially. The design review should include wheel condition, rail straightness, wheel load distribution, and end-truck alignment.

Acceleration Force

Acceleration force is calculated as:

Fₐ = m × a

The acceleration value is:

a = (v₂ − v₁) / tₐ

Where tₐ is the selected acceleration time. A short acceleration time produces a higher force and higher motor torque. A variable-frequency drive can provide controlled acceleration and reduce wheel slip, but the motor still needs enough torque for the programmed ramp.

Slope and Wind Force

For an inclined runway, include the slope component:

Fₛ = m × g × sin θ

Where θ is the runway angle. Even a small slope can matter when the moving mass is high.

Outdoor cranes may also require wind force:

F𝓌 = 0.5 × ρ × C𝒹 × A × v𝓌²

Here, ρ is air density, C𝒹 is the drag coefficient, A is projected area, and v𝓌 is the relative wind speed. The wind case should match the operating condition, not the parked or storm condition unless the drive is specifically required to move during that event.

Convert Force to Motor Power

The total tractive force is:

Fₜ = Fᵣ + Fₐ + Fₛ + F𝓌

The mechanical power at the wheel rim is:

Pᵣᵢₘ = Fₜ × v

Motor output power must account for gearbox, bearing, coupling, and other mechanical losses:

Pₘ = (Fₜ × v) / ηₘ

Where:

• Pₘ = required motor output power in watts
• v = travel speed in m/s
• ηₘ = total mechanical efficiency

If several motors drive the crane, divide the force according to the expected load share. The selected motor torque should also include a design margin and any required acceleration or starting factor.



Overhead Crane Travel Motor Sizing

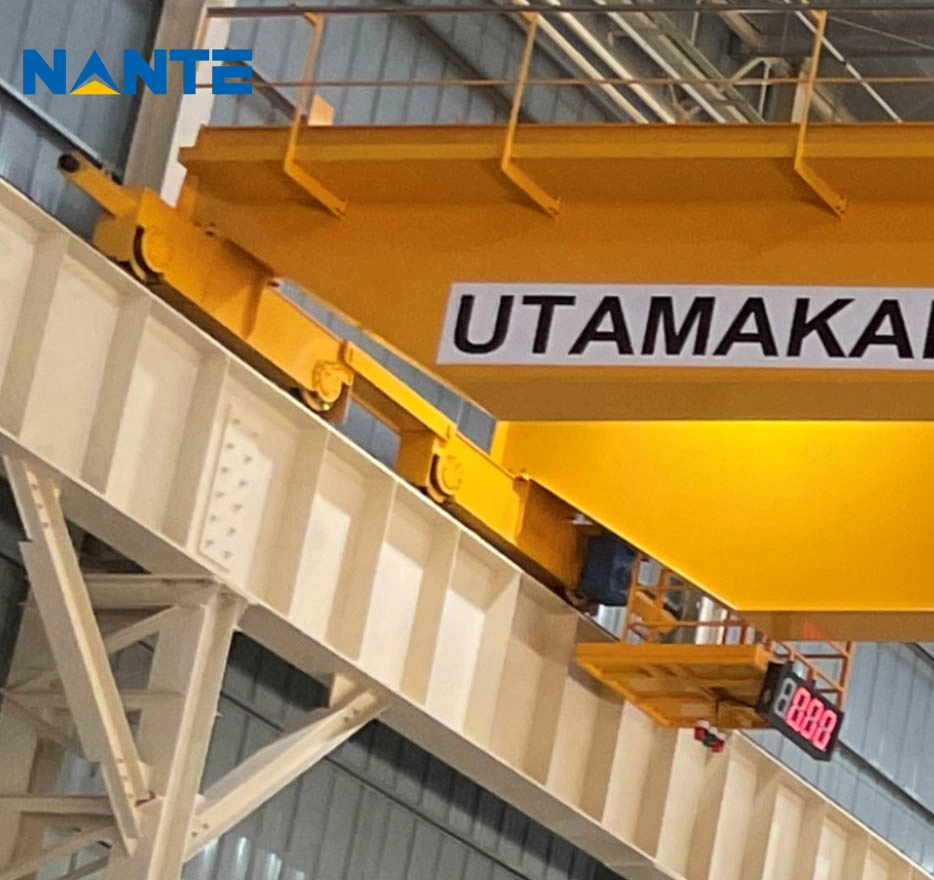

Bridge Travel Motor

Bridge travel motors move the complete crane across the runway. The calculation should include the bridge, end carriages, trolley, lifted load, and attached equipment.

A practical bridge travel sizing sequence is:

1. Define total moving mass for the worst operating load.
2. Confirm wheel diameter, number of wheels, and number of driven wheels.
3. Select travel speed and acceleration time.
4. Calculate rolling, acceleration, slope, and wind forces.
5. Divide force between drive units using the actual mechanical arrangement.
6. Convert wheel force to shaft torque and motor power.
7. Check thermal duty, starts per hour, braking, and wheel slip.

The wheel torque for one drive unit can be estimated as:

T𝓌 = (F𝓌 × r𝓌) / η𝓰

Where F𝓌 is the force assigned to that wheel or drive group, r𝓌 is wheel radius, and η𝓰 is gearbox efficiency.

The motor speed must match wheel speed through the gearbox ratio:

nₘ = (60 × i × v) / (π × D𝓌)

Where i is the gearbox ratio and D𝓌 is wheel diameter.

When reviewing a crane motor selection, the purchasing team should compare both rated power and rated torque. A motor with adequate kilowatts but insufficient starting torque may fail to accelerate the crane reliably.

Trolley Travel Motor

Trolley travel motor sizing uses the trolley, hoist, hook, load, and rigging mass. The bridge and end carriages are excluded.

Trolley travel often has a higher number of starts and stops than bridge travel. Positioning accuracy, low-speed torque, acceleration jerk, and braking response may therefore be more important than maximum speed.

For a trolley with frequent inching movements, the calculation should check:

• Minimum controllable speed
• Number of starts per hour
• Acceleration and deceleration ramps
• Brake response and stopping distance
• Wheel slip during rapid direction changes
• Thermal capacity during repeated cycles

The end carriage does not carry the trolley motor, but its wheel arrangement and alignment affect the resistance used in bridge travel calculations.



Worked Calculation Example

Illustrative Bridge Calculation

Assume an indoor, level crane with:

• Moving mass: 40,000 kg
• Travel speed: 0.50 m/s
• Acceleration: 0.10 m/s²
• Rolling-resistance coefficient: 0.01
• Mechanical efficiency: 0.85
• No wind or slope

Rolling resistance is:

Fᵣ = 0.01 × 40,000 × 9.81 = 3,924 N

Acceleration force is:

Fₐ = 40,000 × 0.10 = 4,000 N

Total force is:

Fₜ = 3,924 + 4,000 = 7,924 N

Required motor output is:

Pₘ = (7,924 × 0.50) / 0.85 = 4,661 W

The preliminary result is approximately 4.7 kW for the complete drive system. A design margin, catalog rating, thermal duty, and load-sharing arrangement must then be applied before selecting individual motors.

Illustrative Trolley Calculation

Assume:

• Trolley and load mass: 8,000 kg
• Travel speed: 0.40 m/s
• Acceleration: 0.20 m/s²
• Rolling-resistance coefficient: 0.02
• Mechanical efficiency: 0.80
• Level indoor operation

Rolling resistance is approximately 1,570 N, and acceleration force is 1,600 N. Therefore:

Fₜ = 1,570 + 1,600 = 3,170 N

Pₘ = (3,170 × 0.40) / 0.80 = 1,585 W

The preliminary trolley requirement is approximately 1.6 kW before design margin and duty-cycle checks. These examples explain the method only. A final selection requires project-specific dimensions, component data, and applicable design requirements.

Operating Conditions That Change Motor Size

Duty Class and Thermal Loading

Travel motors are not selected only by short-time peak power. The motor must withstand the expected duty class, operating time, starts per hour, direction changes, and load spectrum.

A crane with occasional long movements may have a lower thermal demand than a crane that performs hundreds of short positioning cycles. The supplier should provide motor duty classification, allowable starts, brake rating, insulation class, and thermal limits for the intended service.

Controls, Environment, and Safety

A variable-frequency drive can improve acceleration control, reduce mechanical shock, and coordinate multiple bridge motors. The specification should define control voltage, speed feedback, braking method, emergency-stop behavior, and synchronization requirements.

Environmental conditions also affect selection. Check ambient temperature, dust, humidity, washdown exposure, altitude, outdoor wind, corrosive atmosphere, and hazardous-area requirements. An enclosure rating suitable for a clean indoor plant may not be appropriate for an outdoor steel yard.

Check Wheels, Gearboxes, and End Carriages

Mechanical Interface

Motor power cannot be separated from the wheel and gearbox design. Confirm:

• Wheel diameter and tread profile
• Maximum wheel load
• Rail size and gauge
• Gearbox ratio and efficiency
• Shaft, key, and coupling dimensions
• Brake torque and stopping duty
• Number of driven wheels
• Expected load sharing between motors

A crane wheel set with unsuitable load capacity can limit the crane even when the motor has sufficient power.

Supplier Documentation

For procurement, request a calculation sheet showing mass assumptions, resistance coefficients, acceleration time, speed, efficiency, and design margin. The quotation should identify the motor, gearbox, brake, inverter compatibility, wheel load, and testing scope.

Nante Crane publishes crane systems and components, including travelling mechanisms and end-carriage solutions. The project team can use the technical data as a starting point for matching the travel drive to the crane arrangement. A related crane travelling mechanism guide can also help organize the mechanism review.

For a complete system context, compare the travel drive with the selected overhead crane range, runway interface, controls, and maintenance plan. The motor should be treated as part of the complete travel mechanism rather than an isolated catalog item.

Commissioning and Validation

No-Load and Loaded Tests

Commissioning should verify travel speed, acceleration, stopping distance, current draw, brake release, brake application, and direction control.

Perform no-load tests first, followed by controlled loaded tests. Observe wheel slip, abnormal noise, rail tracking, gearbox temperature, and differences in current between multiple drive motors.

Record Actual Performance

Record measured current, voltage, acceleration time, travel speed, starts per hour, and motor temperature. These records provide a baseline for preventive maintenance and help identify increasing resistance caused by wheel wear, rail misalignment, bearing damage, or gearbox problems.

FAQ

Is crane travel motor power based on lifting capacity?

Not by itself. Lifting capacity contributes to moving mass, but bridge mass, trolley mass, rolling resistance, acceleration, speed, efficiency, and operating conditions also determine travel power.

How many travel motors does an overhead crane need?

The number depends on crane span, wheel arrangement, end-carriage design, wheel loads, control strategy, and required redundancy. The force and torque calculation should be completed for each drive group.

Why can two cranes with the same capacity use different motors?

Their bridge masses, wheel diameters, travel speeds, acceleration times, duty classes, runway conditions, and outdoor exposure may differ. Equal lifting capacity does not mean equal travel resistance.

Prepare a Project-Specific Calculation

Information to Send for Review

A useful inquiry should include rated capacity, bridge and trolley masses, span, runway length, wheel diameter, rail details, travel speeds, acceleration times, duty class, starts per hour, indoor or outdoor environment, wind or slope conditions, power supply, control method, and installation location.

With these inputs, the engineering team can verify total force, motor torque, gearbox ratio, brake duty, and thermal selection for bridge and trolley travel separately. For a project-specific review, submit the crane layout and operating data through Contact Nante Crane.
