How Duty Cycle Affects Electric Open Winch Performance and Lifespan

Understanding Electric Open Winch Duty Cycle is essential before selecting lifting equipment for construction, manufacturing, logistics, mining, bridge projects, or heavy industrial operations. Duty cycle directly affects winch working duty and service life, motor temperature, gearbox wear, brake reliability, wire rope fatigue, and overall industrial electric winch performance. Choosing the wrong duty cycle may lead to overheating, frequent downtime, high maintenance costs, and premature equipment failure.

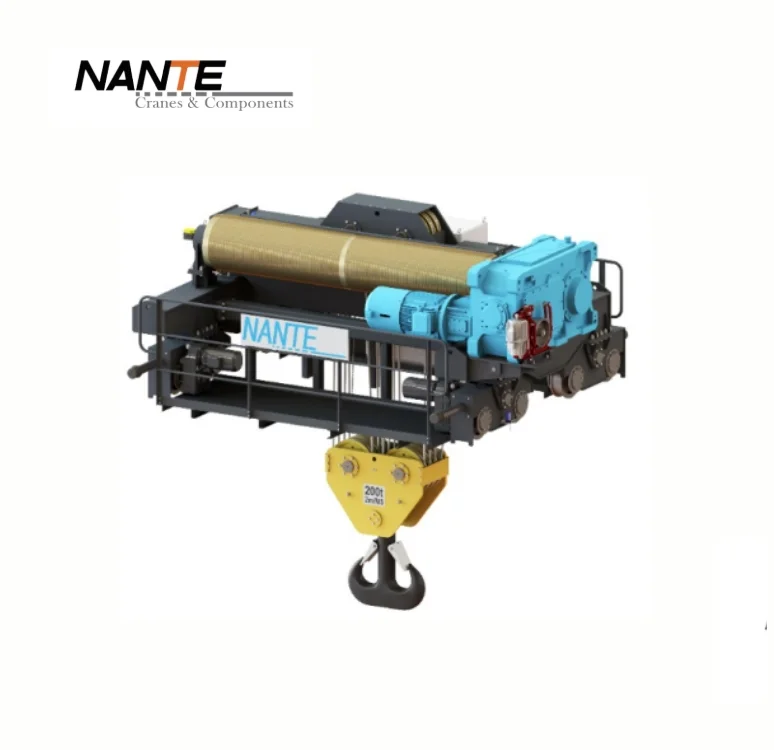

What Is Electric Open Winch Duty Cycle?

Electric open winch duty cycle refers to the percentage of time a winch can operate within a fixed cycle period before it needs rest or cooling time.

A simple formula is:

Duty Cycle (%) = Operating Time ÷ Total Cycle Time × 100

For example, if a winch runs for 4 minutes and rests for 6 minutes in a 10-minute cycle, the duty cycle is:

4 ÷ 10 × 100 = 40%

This means the winch is suitable for intermittent operation, not continuous heavy-duty operation.

Run and Rest Time Diagram

A higher duty cycle means the winch can work longer within each cycle. A lower duty cycle means it requires more rest time to prevent heat buildup.

Electric Winch Duty Cycle Classification

Electric winch duty cycle classification helps users match the winch to real working conditions. It is not enough to choose a winch only by rated load capacity. A 20-ton winch used once per hour and a 20-ton winch used every few minutes have completely different duty requirements.

Duty classification usually considers:

1. Operating time
2. Number of starts per hour
3. Load spectrum
4. Lifting frequency
5. Working environment
6. Expected service life

FEM Duty Class for Electric Winches

FEM duty class for electric winches is commonly used to describe how intensively lifting equipment can work. A higher FEM class usually means the winch is designed for heavier workload, more frequent operation, and longer total working life.

For electric open winches, FEM class should be selected according to real site conditions instead of ideal catalog values.

ISO Duty Classification for Electric Winches

ISO duty classification of winches gives information about their working intensity and their service life. In discussions about the operating characteristics of winches between engineers, buyers and manufacturers it is often useful to have a common basis of technical language.

Utilizing ISO and FEM classification will help in preventing under-specification, especially in projects where demand on duty cycle is high.

How Duty Cycle Influences Industrial Electric Winch Performance

The duty cycle of an industrial electric winch has a great influence on the performance of said winch. If the winch is correctly chosen, it shall guarantee a constant lifting speed as well as adequate braking. This results in a lower number of standstills and a longer service life of the winch.

If the chosen duty cycle is too low for your application, problems will show up quickly. This could cause the motor to overheat, the gearbox to wear out faster, the brake to lose efficiency and the wire rope to experience accelerated fatigue.

A high-duty winch is not only stronger than a standard winch. Also it is better suited for frequent starts, changing loads and long operating periods.

For projects requiring stable lifting performance, selecting the right hoisting mechanism is also important because it affects lifting efficiency, control accuracy, and long-term equipment reliability.

Intermittent vs Continuous Winch Operation

Intermittent versus continuous winch operation is a major criterion for the selection of winches.

Intermittent Operation

Intermittent operation of a winch, means that the winch is periodically in operation and then in idle again. Intermittent operation of winches is used during installation work of construction companies, during maintenance work of equipment, during work on bridges and during temporarily required lift operations.

Benefits include:

• Lower motor temperature
• Reduced energy consumption
• Less component stress
• Lower initial investment

Continuous Operation

The winch is used for continuous operation. This type of operation requires high performance for long periods of time in production lines, in stockyards for forwarding and revising, in mining, in shipbuilding and in other industries.

Continuous operation requires:

• Higher duty class
• Stronger motor insulation
• Better heat dissipation
• Durable gearbox design
• Reliable brake system

Motor Heating and Duty Cycle Effects

The heating of the motor and the influence of the duty cycle are two related items. The electric motor heats up when in operation. If the motor does not get enough time to cool down between the operating periods, the temperature can increase faster than it can dissipate.

This can cause:

1. Reduced insulation life
2. Lower motor efficiency
3. Thermal overload trips
4. Unexpected shutdowns
5. Premature motor failure

When selecting a suitable motor for high-frequency winch operation it is not only necessary to check the power rating but also the thermal rating, start frequency, cooling method and duty rating.

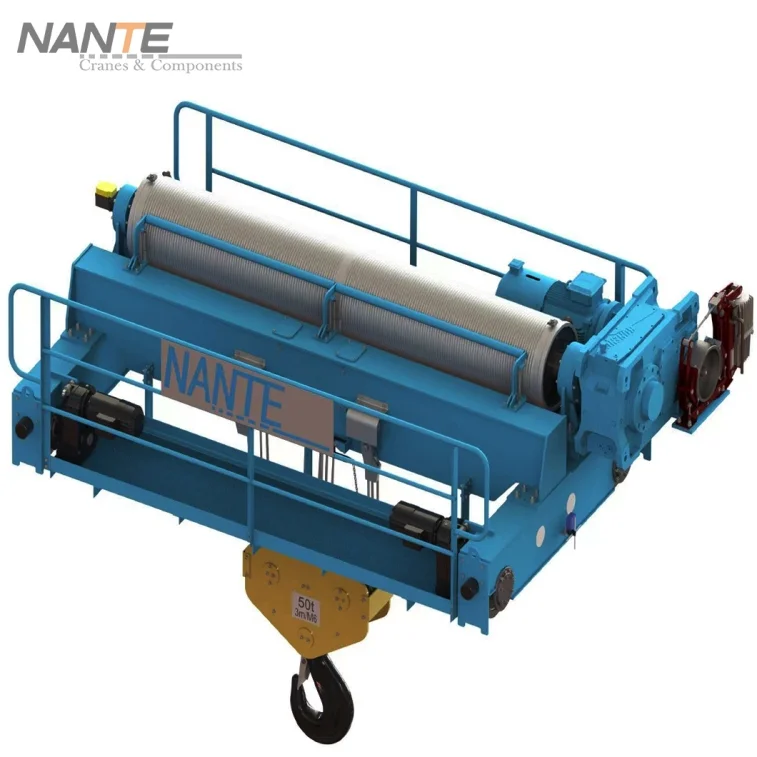

Impact on Gearbox, Brake, and Wire Rope

Duty cycle not only has an influence on the motor, but also on the complete winch system in terms of wear.

Gearbox

A higher duty cycle increases gear mesh cycles and bearing load. If lubrication is not suitable, heat and friction can accelerate wear.

Brake

Brake engages frequently during lift, lower and stop operations. High-duty operation generates excessive brake heat and causes premature wear of friction material.

Wire Rope

As wire rope goes through lifting cycles it is subject to bending, tension, abrasion, and fatigue. The more lifting cycles the wire rope goes through the more inspections it will require.

Selecting the right duty cycle will ensure that the winch can operate safely and effectively in the long term.

Winch Duty Cycle Calculation Methods

When selecting a winch for purchase, use of Winch duty cycle calculation methods are key prior to purchase. Project managers can then determine required duty cycle by means of a realistic analysis of the typical operating process.

Example 1:

• Running time: 2 minutes
• Rest time: 8 minutes
• Total cycle: 10 minutes

2 ÷ 10 × 100 = 20% duty cycle

Example 2:

• Running time: 6 minutes
• Rest time: 4 minutes
• Total cycle: 10 minutes

6 ÷ 10 × 100 = 60% duty cycle

20% duty cycle occasionally lifting – 60% duty cycle frequent industrial lifting – Continuous use more so.

Common Mistakes in Electric Open Winch Selection

Many problems encountered with winches can occur prior to installation. The most common mistake in selecting a winch is choosing one based on rated capacity only.

Mistake 1: Ignoring Duty Cycle

A winch may be rated for lift of a certain load but is not necessarily designed for repeated use.

Mistake 2: Underestimating Daily Working Hours

Occasional lifting would typically require a lower duty class than production lifting.

Mistake 3: Ignoring Peak Workload

There are instances where a project will have short periods of intense lifting. These peak periods need to be taken into account.

Mistake 4: Overlooking the Environment

The combined effects of dust, humidity, outdoor exposure, high temperature, and corrosive conditions can all affect a winch’s service life.

Mistake 5: Ignoring Future Expansion

If production volume may increase in the future, selecting a higher duty class will reduce future replacement costs.

Real-World Application Examples

Construction Project Example

A number of construction sites of bridges use electric open winches for positioning of steel structures or for moving heavy components. They are used from a few times an hour up to several times an hour and with several hours in between the lifts. Therefore medium duty will be more appropriate than light duty.

Industrial Manufacturing Example

When repeated material handling is required in a manufacturing facility every few minutes a higher duty winch is required together with strong thermal design and good braking performance.

Logistics or Mining Example

Winches in logistics yards or mining applications are often subjected to heavy loads and harsh operating conditions. Therefore higher FEM or ISO classes have to be taken into account in order to guarantee the required reliability and to avoid unnecessary downtimes.

FAQ

What is the ideal duty cycle for an electric open winch?

An appropriate duty cycle for a lifting device depends on several aspects such as the frequency of lifts, the load spectrum, the working hours in a day and the environment in which the work is performed. For light operations a lower duty cycle may be appropriate, whereas in industrial production environments a higher duty cycle is often required.

Why are FEM and ISO classifications important?

FEM and ISO classes clearly describe the working intensity, the expected service life and the area of application of a winch, therefore a more precise selection is possible.
