Crane Hook Safety Factor: How Safety Factors Influence Crane Hook Design

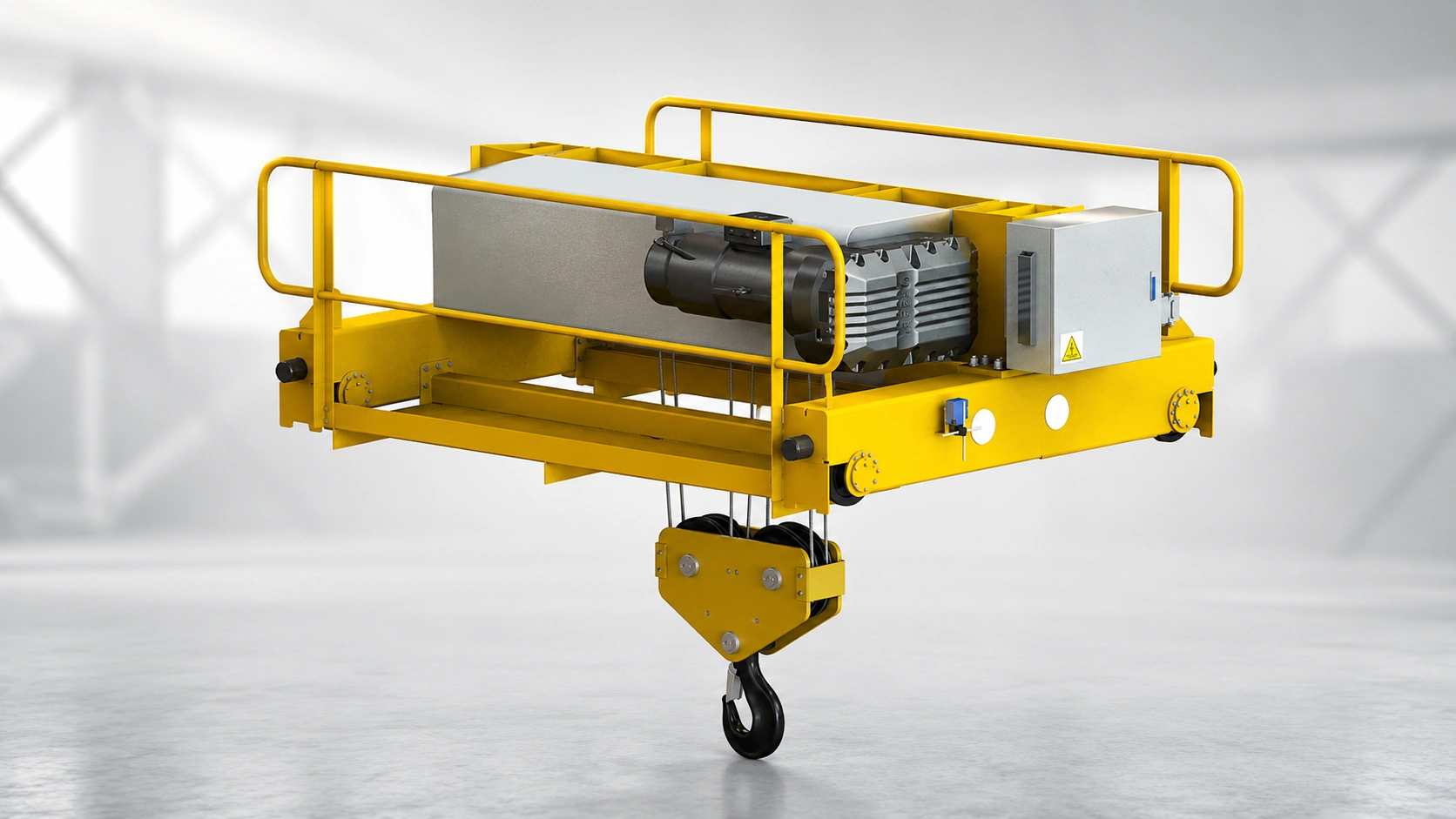

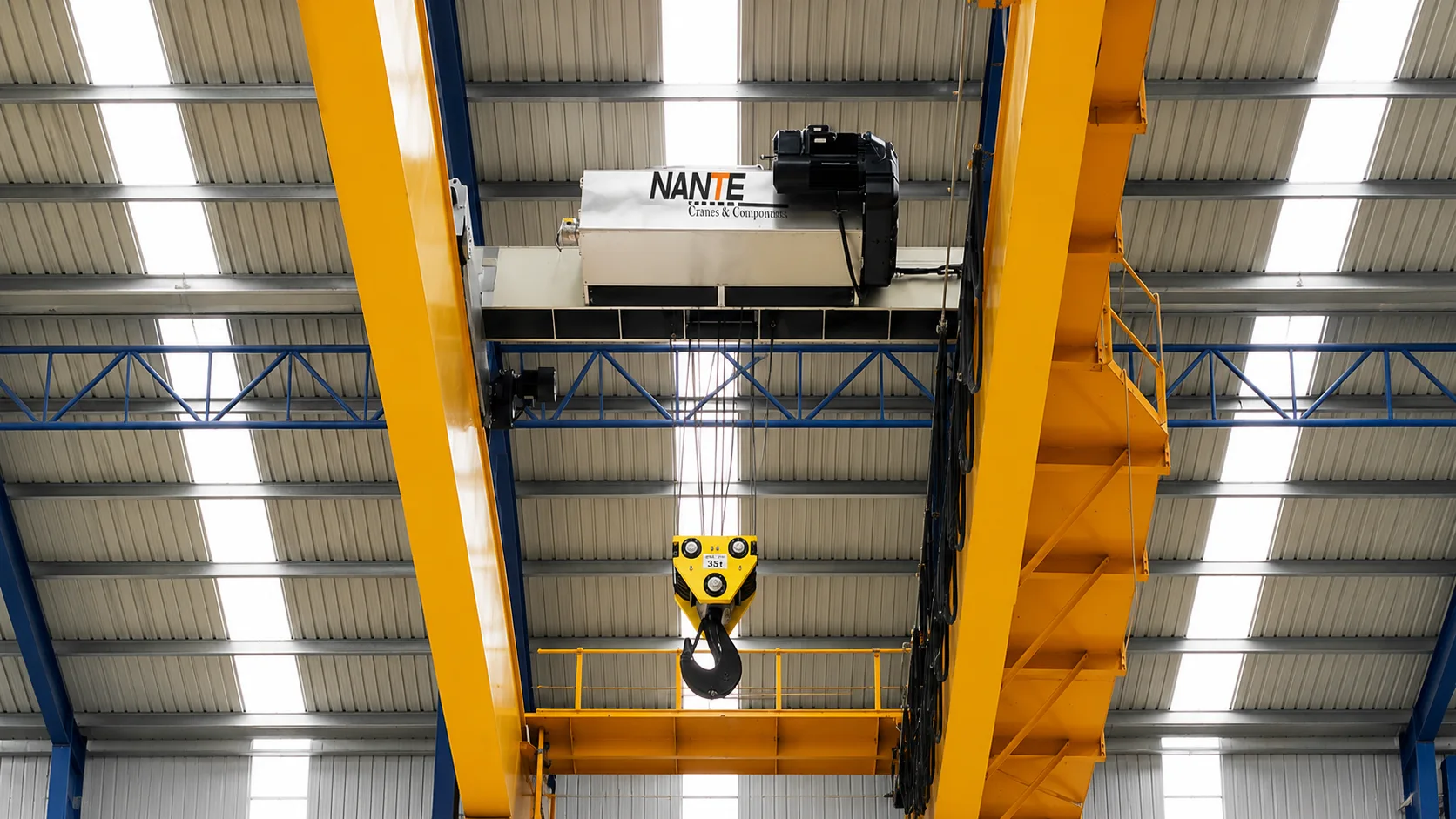

Crane Hook Safety Factor is a key design parameter for safe lifting systems. It defines the engineering margin between a hook’s rated working load and its strength capacity. In forged hook design, engineers must combine hook load calculation, material selection, DIN hook geometry, FEM hook duty class, fatigue life, and inspection requirements. A properly selected safety factor helps reduce the risk of deformation, cracking, overload damage, and premature hook replacement. Because the crane hook works as part of the complete hoisting mechanism, hook safety factor should be evaluated together with the hoist, wire rope, pulley, hook block, brake, and control system.

What Is Crane Hook Safety Factor?

Crane hook safety factor is the ratio between a hook’s strength capacity and its working load limit. A simple expression is:

Safety Factor = Ultimate Load Capacity / Working Load Limit

This margin exists because real lifting conditions are never perfectly static. Loads may swing, accelerate, stop suddenly, or create shock forces. Rigging tools and below-the-hook devices also add weight. Material properties, wear, temperature, and manufacturing tolerances can further influence actual performance.

A safety factor does not mean the hook can be overloaded. The rated working load must always be followed. The safety factor is a design margin, not an operating allowance.

ISO 17440:2014 is highly relevant because it covers limit states and proof of competence for forged steel crane hooks. Its scope includes hook bodies made from steel forgings and machined shanks with thread/nut suspension, and it aims to reduce risks related to yield strength, ultimate strength, fatigue, temperature limits, and unintentional load disengagement.

How Safety Factor Influences Forged Hook Design

Forged hook design is not only about making the hook thicker. It is about controlling stress, geometry, material flow, and fatigue performance.

Hook Geometry and Stress Distribution

The inner curve of a crane hook is one of the most highly stressed areas. When the hook carries a load, the body experiences bending, tension, and localized contact pressure. If the hook profile is too sharp or too thin, stress concentration increases.

A higher crane hook safety factor may require:

• A larger load-bearing cross-section
• A smoother inner curve
• Stronger shank geometry
• Better transition radii
• Controlled throat opening
• Improved hook seat design

These design choices help distribute stress more evenly and reduce the chance of permanent deformation.

Hook Throat Opening and Load Seating

The hook throat must allow safe attachment while keeping the load properly seated. If the load is placed near the hook tip, bending stress increases. If the hook is side-loaded, the hook may be exposed to forces outside its intended design direction.

Good hook design encourages the load to sit correctly in the hook seat. This improves safety, extends service life, and supports more predictable inspection results.

Hook Load Calculation: From Rated Load to Real Load

Hook load calculation should include more than the nominal weight of the object being lifted. The real design load must consider everything suspended below the hoist.

Key Factors in Hook Load Calculation

A practical hook load calculation should include:

1. Maximum lifted object weight
2. Sling, spreader beam, grab, magnet, or lifting fixture weight
3. Dynamic forces from acceleration and braking
4. Shock loading during sudden starts or stops
5. Uneven load distribution
6. Crane duty class
7. Required working load limit
8. Applicable safety factor and inspection rules

If the accessory weight or dynamic load effect is ignored, the selected hook may be unsafe even when the crane capacity appears sufficient.

Static Load vs. Dynamic Load

A static load hangs without movement. A dynamic load changes when the crane starts, stops, lifts, lowers, or travels. These actions can create peak forces higher than the visible load weight.

This is why hook load calculation must be linked with safety factor, duty class, and fatigue evaluation.

DIN Hook and FEM Hook Design Considerations

Standards give engineers a structured way to select, verify, and inspect crane hooks. They also help keep hook dimensions and performance expectations consistent.

DIN Hook Design

A DIN hook generally refers to a hook designed around DIN-style dimensions and technical requirements. DIN hook selection normally considers hook type, shank size, throat opening, material, rated capacity, and compatibility with the hook block.

For buyers and engineers, the value of a DIN hook is repeatability. Standardized geometry makes it easier to select replacement hooks, inspect wear, and verify dimensional limits.

FEM Hook Design

A FEM hook should be evaluated according to duty class, load spectrum, and expected service life. FEM lists 1.001 as “Rules for the design of hoisting appliances,” published as eight booklets.

This matters because two hooks with the same rated capacity may work under very different conditions. One may lift occasionally. Another may perform thousands of cycles in a production line. The second hook needs stronger fatigue consideration.

ISO and CMAA Context

ISO 17440:2014 states that it applies to hooks made from materials with ultimate strength not more than 800 N/mm² and yield stress not more than 600 N/mm². It also identifies strength limits, fatigue, temperature limits, and load disengagement as key hazards.

CMAA specifications also support crane system design. CMAA Specification 74-2025 covers single girder cranes and includes general specifications, crane service classifications, structural design, mechanical design, electrical equipment, inquiry data sheet, and glossary. CMAA Specification 70-2025 applies to multiple girder cranes and helps purchasers, users, engineers, and architects compare and select crane equipment.

Material Selection and Heat Treatment

Safety factor depends on both geometry and material performance. A crane hook material should provide a reliable balance of strength, ductility, toughness, hardness, and fatigue resistance.

Why Toughness Matters

A safe hook should resist sudden brittle fracture. In many cases, visible deformation is easier to detect than sudden cracking. This is why toughness and elongation are important, not only tensile strength.

If a hook material is too brittle, failure can occur with limited warning. If it is too soft, the hook may deform during repeated lifting. The correct material depends on load capacity, operating temperature, lifting frequency, and service environment.

Heat Treatment and Quality Control

Heat treatment affects the final strength, hardness, toughness, and fatigue resistance of the hook. Poor heat treatment can reduce the true safety margin even when the nominal material grade appears suitable.

Quality control should include dimensional inspection, surface inspection, material traceability, and non-destructive testing when required.

How Safety Factor Affects Hook Service Life

A crane hook must survive more than a single lift. It must perform safely through repeated load cycles.

Fatigue Life

Fatigue damage can begin at the inner curve, worn load-bearing point, surface defect, or stress concentration area. A proper safety factor helps reduce stress amplitude, but service life also depends on duty class, load spectrum, inspection quality, and operating discipline.

Wear and Deformation

A hook may lose its original safety margin through:

• Throat opening increase
• Hook twist
• Surface wear
• Cracks or nicks
• Corrosion
• Heat damage
• Damaged safety latch
• Missing or unreadable markings

Regular inspection is essential because the original crane hook safety factor only applies when the hook remains within acceptable condition.

Common Mistakes in Crane Hook Safety Factor Selection

Ignoring Accessory Weight

Rigging tools and lifting fixtures can significantly increase the total suspended load.

Confusing Safety Factor with Overload Capacity

A higher safety factor does not permit lifting beyond the working load limit. To reduce overload-related risks, a properly selected overload limitor should be considered as part of the crane safety system.

Ignoring Duty Cycle

A high-cycle crane hook needs stronger fatigue evaluation than a hook used occasionally.

Oversizing Without System Review

A larger hook can increase hook block weight, reduce lifting height, and affect crane performance.

FAQ

What is crane hook safety factor?

Crane hook safety factor is the design ratio between the hook’s strength capacity and its rated working load.

Why is forged hook design important?

Forged hook design can improve strength consistency, toughness, and fatigue performance when the hook is properly manufactured and inspected.

What should hook load calculation include?

It should include the lifted object, rigging weight, below-the-hook devices, dynamic load effects, uneven load distribution, and crane duty class.

What is a DIN hook?

A DIN hook is a crane hook designed according to DIN-style dimensional and technical requirements.

What is a FEM hook?

A FEM hook is evaluated with duty class, load spectrum, fatigue life, and hoisting appliance design principles.

Can a crane hook lift above its rated load?

No. The working load limit must always be followed.
