Why Semi-Gantry Cranes Are Ideal for Large Workshop Handling

A semi gantry crane acts as a flexible lifting tool made for large workshops. It has one side held up by a runway beam. The other side moves on ground rails. This mixed setup joins the accurate control of overhead cranes with the easy movement of gantry types. As a result, it works very well as a workshop material handling crane in factory settings.

In big workshops with little room and tight money, a semi gantry crane fixes real problems. It provides solid load lifting. At the same time, it avoids the heavy building needs of regular cranes. Capacities usually go from 1 ton to 20 tons. Spans reach up to 30 meters. These sizes fit just right for moving medium to heavy materials.

Companies in manufacturing and assembly pick this option because of its lower costs, better space use, and easy adjustment. No matter if they lift steel beams or machine parts, a semi gantry crane for large workshop use raises output. It also matches current setups without trouble.

What Is a Semi-Gantry Crane?

A semi gantry crane works as a clever mixed lifting choice. It mixes the steady nature of overhead cranes with the movable side of gantry cranes. This makes it great for large workshop areas where full raised runways do not work well.

The design suits places with bumpy floors or only some building support. It raises work speed without big changes to the site.

Definition of Semi-Gantry Crane

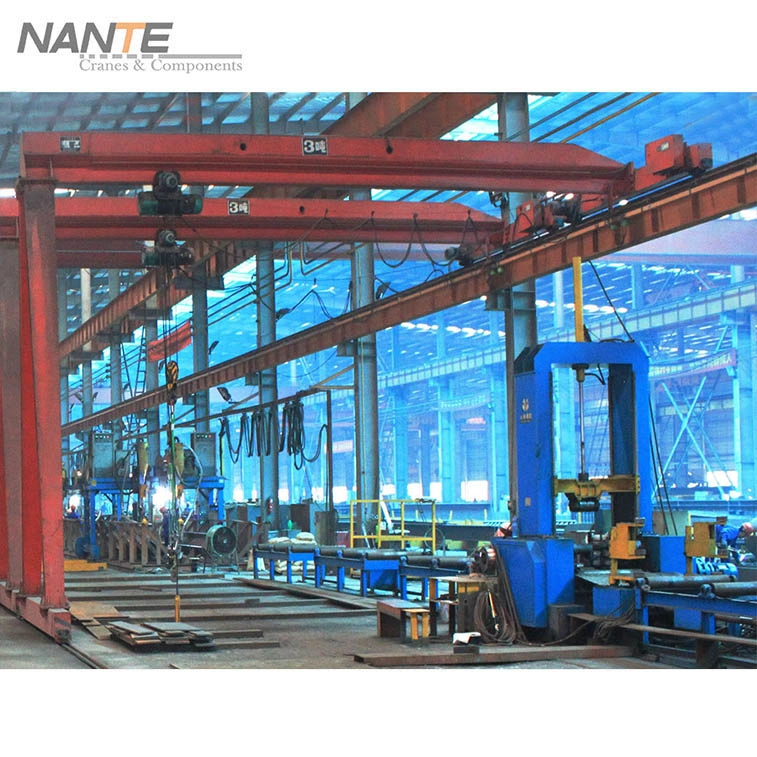

A semi gantry crane has one end carriage that travels on an elevated runway beam attached to the workshop building. The other side has a leg that moves straight on ground-level rails.

This one-side support cuts down on the need for complete overhead setup. It changes easily to fit current large workshop buildings. In this way, it gives steady lifting over big spaces.

Main Structure and Components

Important parts include the main girder, end carriages, hoist and trolley, one-sided legs, running mechanisms, and power supply systems. The girder uses strong steel. This gives long life and keeps weight low.

Alloy wheels and exact drive parts make sure the crane runs smoothly. Festoon cables and control panels finish the system. They bring tight, effective work suited to workshop material handling crane jobs.

How It Works in Workshop Environments

The crane travels along the fixed runway beam on one side. Meanwhile, the ground leg moves on rails. The hoist and trolley slide along the girder to place loads exactly.

Operators use pendant or remote controls for careful lifts. This arrangement fits nicely into large workshop daily work. It does not block floor movement. It also needs no large changes.

Key Advantages of Semi-Gantry Cranes for Large Workshops

Semi gantry cranes deal with main issues in large workshop work. They bring down expenses, make better use of space, and change with new demands. At the same time, they handle tough loads well.

Lower Installation Cost

Installation needs just one runway beam instead of two full supports. This reduces steel use and limits changes to the building in current large workshops.

Places skip costly building fixes. So they get quicker setup and big early savings on industrial lifting work.

Efficient Use of Workshop Space

The single-leg style opens up useful floor space on one side. Equipment and storage go more easily under or next to the crane in crowded large workshop areas.

This makes the most of available space without losing lifting reach. Daily work gets better because operators have open routes for moving and putting things together.

Flexible Operation and Layout Adaptability

Semi gantry cranes manage odd shapes, growth, or uneven floors without difficulty. They fit around partial blocks that often appear in expanding large workshops.

Moving or changing the setup helps production lines that grow. This ability lets work continue well when layouts shift.

Strong Load Handling Capacity

These cranes handle medium to heavy loads in a steady way over wide spans. They back up frequent jobs that push output in workshop material handling.

Exact control and firm build stop lost time. Teams shift materials quicker. This raises total work in hard settings.

Design Features of Semi-Gantry Cranes

Built for real use, semi gantry cranes include parts that improve work in workshops with low height or small space.

Single Girder and Double Girder Options

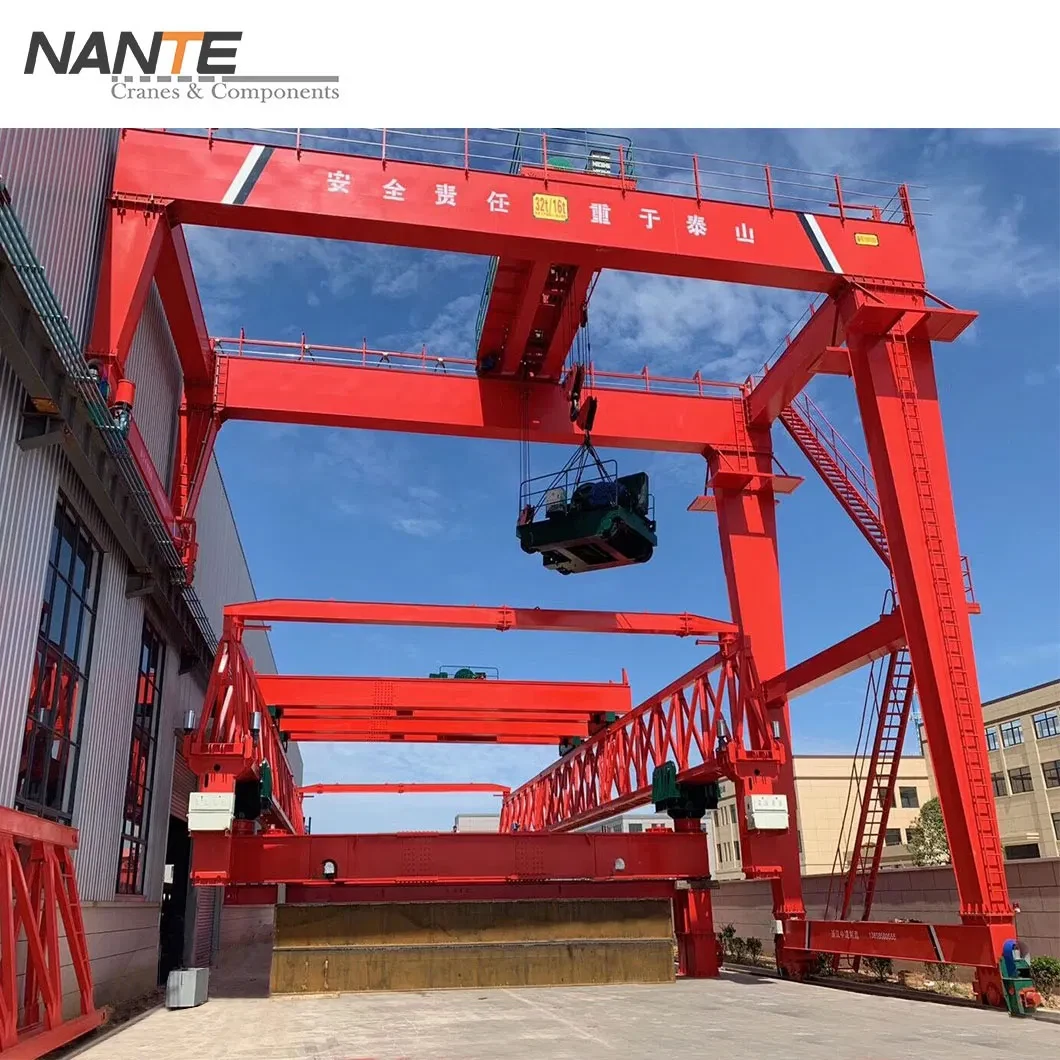

Single girder types give light weight and good results for smaller loads with lower cost. Double girder kinds offer more power for bigger weights and wider spans in busy workshop settings.

Both choices give steady work. The pick depends on exact load and length needs.

Low Headroom Hoist Design

Low headroom hoists raise hook height as much as possible under low ceilings. They suit large workshops with little up-and-down room very well.

This style keeps complete lifting power without lifting the whole structure. It fixes height limits in a good way.

Compact and Lightweight Structure

The girder and whole frame remain small with less self-weight. This lowers stress on building supports when put in large workshop places.

Lighter build makes moving simpler while it keeps strong build. It allows wider use in different factory sites.

Energy-Efficient Drive System

Inverter-controlled motors and high-efficiency parts give smooth, low-power movement. Cross speeds hit 20 m/min and long travel reaches 32 m/min for quick response.

This backs up regular use without too much power use. It matches green workshop habits.

Typical Applications in Large Workshops

Semi gantry cranes do very well in wide-span, frequent-use cases across main industrial fields.

Steel Structure Workshops

They shift long beams, frames, and plates in an effective way. Exact placement helps building and welding without taking floor room in big steel workshops.

Machinery Manufacturing Plants

Cranes carry heavy parts and groups along production lines. They make setup and part moving simpler in machinery plants.

Assembly and Maintenance Workshops

Flexible lifting backs exact placement during builds or fixes of equipment. Operators finish work fast in special assembly spots.

Warehouse and Material Transfer Areas

Loading, unloading, and inside moves go well. The design joins workshop and storage parts for smooth material movement.

Why Semi-Gantry Cranes Are Cost-Effective for Industrial Use

Semi gantry cranes bring good value with clever build that focuses on basic setup and long use.

Reduced Infrastructure Investment

Small runway needs cut building change costs a lot. One-side support uses current structures for lower total project costs.

Long Service Life and Durability

High-quality materials and standards like FEM and EN make sure steady work year after year. Strong build stands up to hard factory conditions in large workshops.

How to Choose the Right Semi-Gantry Crane for Your Workshop

Picking the best semi gantry crane means matching parts to specific large workshop situations.

Load Capacity and Span

Find maximum weight and needed coverage first. Match 1-20 ton capacities and spans up to 30 meters to material sizes and workshop measurements.

Workshop Layout and Space Conditions

Check ceiling height, floor strength, and blocks. Make sure the design fits ground rail paths and current supports.

Rail Installation and Ground Conditions

Check that ground rails stay firm and runway beam attaches well. Good alignment ensures safe, lasting work.

Future Expansion Needs

Pick modular choices that let upgrades or moves happen. This gets the crane ready for production increase without full replacement.

Conclusion: A Smart Solution for Large Workshop Handling

A semi gantry crane stands out as one of the most useful workshop material handling crane picks for large workshops. Its lower costs, better space use, and good flexibility bring true benefits.

Cost savings ✔ maximized space ✔ adaptable operations ✔ — these points make it the top choice for industrial lifting that works well and stays reliable.

Ready to Optimize Your Workshop with a Semi-Gantry Crane?

Nante Crane is a leading manufacturer with over 30 years of experience, specializing in high-quality industrial cranes and crane components, including semi-gantry cranes designed for efficiency, energy savings, and durability. Serving global industries with reliable solutions, we offer customized options to fit your large workshop needs. Contact us today to explore our semi gantry crane offerings and get expert guidance on your material handling project.

FAQ

What is the main structure of a semi gantry crane?

One side runs on an elevated runway beam while the other leg travels on ground rails, creating a hybrid design perfect for workshops.

Can a semi gantry crane handle heavy loads in a large workshop?

Yes, models support 1-20 ton capacities across spans up to 30 meters, making them suitable for medium to heavy industrial tasks.

How does a semi gantry crane improve space in industrial facilities?

The single-leg design frees floor area on one side, allowing better equipment placement and workflow in dense workshop environments.

What factors matter most when selecting a semi gantry crane?

Focus on load capacity, span, workshop layout, ground conditions, and future expansion plans to ensure the best fit.

Are single or double girder options available for semi gantry cranes?

Both are offered. Single girder suits lighter loads while double girder handles heavier demands and larger spans.

Does a semi gantry crane work well with existing workshop structures?

Absolutely. It adapts to current buildings using one runway beam, reducing installation complexity and costs.
