What to Consider When Buying a Portable Gantry Crane with Electric Hoist?

Lifting heavy items smoothly is important in places like warehouses, factories, and construction sites. It shifts things from one place to another quickly and easily. This makes work faster. A portable gantry crane with an electric hoist is a handy tool. It moves without trouble and lifts items strongly. But picking the right one can be tough. Things like weight limit, size, and hoist type need to fit the job. A bad choice might slow work, cause risks, or cost lots to fix.

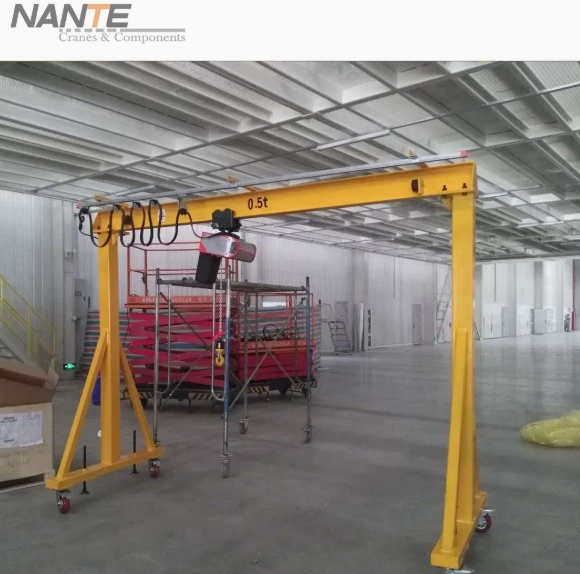

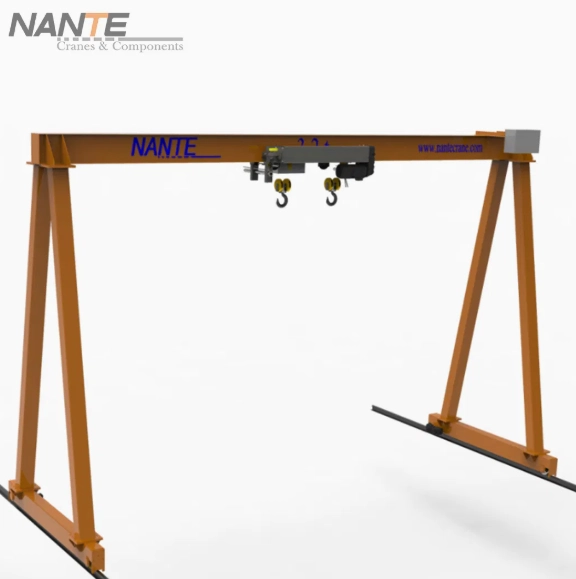

What’s a Portable Gantry Crane with an Electric Hoist?

A portable gantry crane is a machine that lifts things and stands on its own. It has tall legs, often with wheels or casters, for easy moving to new spots. Adding an electric hoist makes lifting simple with little effort. The electric hoist uses a motor to raise or lower items. This beats hand-lifting, especially for heavy or repeated tasks. These cranes work in warehouses, workshops, building sites, and shipyards for many kinds of jobs.

Cool Features

• Moves Easily: Wheels or casters let the crane roll to new places. It can be set up wherever needed, perfect for jobs that change often.
• Electric Hoist: It lifts items by itself. This keeps workers from getting worn out and makes lifting more precise.
• Uses: These cranes shift pallets in warehouses or pick up machines in factories.

Why They’re Great

• Works Anywhere: They fit indoors or outdoors and suit many tasks.
• Saves Money: They’re cheaper than fixed cranes. They’re smart for jobs that don’t need lifting all the time or move around.
• Safe and Quick: Electric hoists speed up work and are safer than lifting by hand.

Things to Think About When Buying a Portable Gantry Crane with an Electric Hoist

Choosing the right portable gantry crane with an electric hoist takes careful planning. It should work well, stay safe, and not cost too much. Here are the main things to look at:

A. Load Capacity

Load capacity is how much weight the crane can handle, from 0.5 to 20 tons. It must match the items being lifted. A weak crane might break or cause accidents if overloaded. A too-strong crane wastes cash. Think about current and future lifting needs. The electric hoist’s capacity should match the crane’s for balance and safety. Check the maker’s load charts. Always add a 25% safety buffer above the heaviest load to keep the crane safe and long-lasting.

B. Span and Lifting Height

Span is the width between the crane’s legs. Lifting height is how high it can raise items. These decide the space the crane covers. Measure the work area to make sure the crane fits without blocking other tasks. Spans are usually 2 to 12 meters, and heights go from 2 to 15 meters. Some cranes let the height or span change, great for lifting over objects or through doors. Watch for low ceilings or beams that might get in the way. An adjustable crane is awesome for different tasks.

C. Material and Durability

Cranes are often made of steel or aluminum alloy. Steel is very tough for hard jobs, like building sites or ports. Aluminum is lighter, easier to move for workshops or cleanrooms. For outdoor use, pick rust-proof coatings, like shot blasting to ISO8501-1 SA 2.5 standards, to handle rain or salty air. Make sure bolts and welds are strong, meeting standards like ISO 15614, for a lasting crane. Choose materials that fit the workplace to keep the crane sturdy with less fixing.

D. Mobility and Assembly

Moving the crane easily is a big win. Heavy-duty casters with brakes or locks keep it safe when rolling. Some cranes come in parts for quick setup or takedown without special tools, ideal for short jobs. For larger cranes, trackless or motorized options make moving easier. The crane must stay steady when empty to avoid tipping. Ensure casters use tough materials, like polyurethane or reinforced nylon, to handle rough floors without breaking.

E. Electric Hoist Specifications

The electric hoist is the core of the lifting system. Chain hoists work for lighter items, while wire rope hoists are better for heavy, frequent tasks. Check lifting speed, around 8 meters per minute, and trolley speed for smooth moves. Make sure the power supply, like 220–440V, 50/60Hz, 3-phase, fits the workplace. Safety features are vital, like overload protection, emergency stop buttons, and limit switches to keep workers safe. Pick hoists with pendant or wireless controls for precise lifting in small spaces.

F. Safety and Compliance

Safety is a top concern with cranes. Ensure the crane and hoist meet standards like ISO 9001 or CE for quality. Look for safety tools like overload limit switches, anti-collision systems, and phase sequence relays to stop accidents. Train workers and check the crane often to follow local rules and keep things safe. Standards like FEM or CMAA set guidelines for safe crane design and use. A load display or LED screen helps by showing what’s happening right away.

G. Budget and Cost-Effectiveness

Think about costs now and later. Manual hoists are cheaper but slower for frequent lifting. Electric hoists perform better but cost more at first. Include costs for upkeep, extras like trolleys or remotes, and setup. Look for warranties, like one year for motorized parts, and good after-sales support. A customizable crane means paying only for needed features.

Where Portable Gantry Cranes with Electric Hoists Can Be Used

These cranes fit many places:

• Warehousing: They shift heavy pallets or goods fast, making storage simpler.
• Manufacturing: They lift machines, parts, or help put things together carefully.
• Construction: They pick up steel beams or concrete blocks at work sites.
• Special Industries: They work in aerospace, military, or cleanrooms with light, rust-proof models.
  They make work faster with automatic lifting, save money by needing fewer workers, and handle all kinds of tasks and places. These cranes keep work smooth and prioritize safety.

About Nante Crane and Its Products

Nante Crane, a leading China company, builds smart lifting tools for warehouses, ports, and factories. They focus on safety, strong performance, and saving energy. Their products meet standards like ISO, CE, FEM, and CMAA.

Product Highlights

• Portable Gantry Cranes with Electric Hoists: These handle 0.5 to 20 tons. They’re light, simple to set up, and adjustable for height and span. They include safety features like overload protection and rust-proof coatings for indoor or outdoor use.
• Single Girder Gantry Cranes (1–20t): Small and low-cost for lighter loads.
• Double Girder Gantry Cranes (3.2–300t): Very tough for big, heavy jobs with open winch systems.
• Customization: Cranes are built to match specific load, span, and height needs.

Why Pick Nante Crane?

Nante Crane provides trusty, ISO/CE-certified products that are simple to use. They offer great support, like setup help or worker training. Their focus on new ideas ensures cranes work well for many tasks with accuracy and strength. Learn more at Nante Crane.

FAQs

What’s the max load capacity of a portable gantry crane with an electric hoist?
It ranges from 0.5 to 20 tons, depending on the model and custom options.

Can portable gantry cranes be used outside?
Yes, with rust-proof materials and good care, they work well outdoors.

What safety features should be looked for in an electric hoist?
Look for overload protection, emergency stop buttons, and limit switches for safety.

Are portable gantry cranes easy to put together?
Most have designs for quick setup or takedown without special tools.

How to pick between a chain or wire rope hoist?
Chain hoists are good for lighter items; wire rope hoists suit heavy, frequent jobs.

Conclusion

A portable gantry crane with an electric hoist makes lifting heavy items simple. Contact Nante Crane to check out their custom, ISO/CE-certified lifting tools. Whether for warehousing, manufacturing, or construction, their cranes are safe and reliable. Ask for a quote to find the best crane for specific work needs.
