Single vs Double Girder Overhead Crane: Which Is Right for Heavy-Load Workshops?

In the busy field of industrial material handling, picking between a single girder vs double girder crane is a vital buying choice for heavy-load workshops. These overhead cranes boost speed, but the best pick relies on your exact needs. A single girder overhead crane gives simple design and low price for easier jobs, while a double girder overhead crane brings strong power for tough work. This guide looks at their kinds, capacities, spans, costs, and setup to help workshop owners, production engineers, and distributors choose with ease. Check real-life cases and a choice table to improve your work.

Understanding Single Girder Overhead Cranes

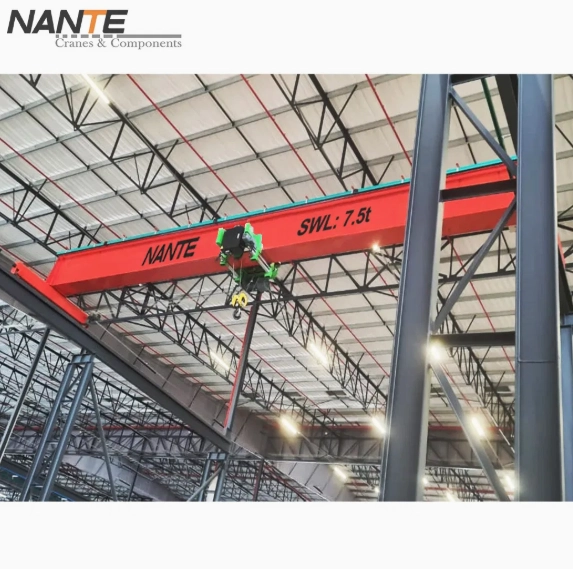

Definition and Basic Design

A single girder overhead crane has one main beam (girder) held up by end trucks that move on runway rails. The hoist and trolley slide along the lower edge of this beam. This makes a small, light build perfect for under-running setups. It cuts down on needed height and fits smoothly into current buildings. Workshop owners like this for tight spaces.

Key Components and How It Works

Main parts include the single main girder (often an I-beam), end trucks for bridge motion, an electric hoist for raising, and a trolley for side travel. The crane runs with pendant or remote controls. The hoist hangs under the girder to raise loads up to fair weights. Safety items like limit switches and overload guards keep things steady. Daily tasks go well with little training.

Typical Applications

Single girder cranes shine in light to medium tasks. Think of assembly lines, repair shops, and basic making. They deal with normal material moves without stressing building frames. This speeds up flow in busy workshops. Production engineers value the fast setup for changing plans.

Understanding Double Girder Overhead Cranes

Definition and Basic Design

A double girder overhead crane uses two side-by-side main girders. The hoist trolley moves on top rails between them. This top-running plan offers better balance and strength. It holds heavier loads and longer reaches. The two-beam build allows taller hook lifts. It fits top-heavy jobs where bending must stay low.

Key Components and How It Works

Key pieces include two box or I-section girders, end trucks, a hoist (often wire rope for big lifts), and trolley setup. The crane covers wide areas. The hoist sits between girders for max lift space. Modern controls, like variable frequency drives, allow exact, fast moves. This aids ongoing heavy work in hard settings.

Typical Applications

Double girder cranes are made for hard-duty spots. Examples cover forging, steel work, and big assembly. They handle often, large lifts. This keeps safety and speed in high-risk lines. Distributors suggest them for clients with round-the-clock work.

Single Girder vs Double Girder Crane: A Detailed Comparison

Capacity Comparison

• Single Girderoverhead crane: Usually 1-20 tons. Great for light-medium loads like tools or parts. Going over this risks beam bend and shorter life.
  · Double Girder overhead crane:5-500+ tons. Strong in heavy raising, such as machines or coils. Little bend means safer work.
• Insight:Pick single girder if loads stay below 15 tons.

Go for double girder for heavier to skip often swaps.

Span Comparison

• Single Girderoverhead crane: Up to 30-65 feet. Good for smaller areas. Likely to sag on long runs, limiting use in big spaces.
  · Double Girder overhead crane: Over 65 feet, up to 100+ feet.
  Two beams share weight well. This covers large workshop floors.
• Insight:Short spans like single girder for money save. Long ones need double girder for solid build.

Cost Comparison

• Single Girderoverhead crane: Lower start costs (e.g., $40,000 for 5-ton, 40-foot span including installation). Uses less steel and easy making.
• Double Girder overhead crane: Higher first spend (e.g., $65,000+ for 10-ton equivalent). Worth it for lasting and less long care.
• Insight: Tight budget buyers pick single girder for fast return. Spend on double for high work to cut stop costs.

Installation and Maintenance Requirements

• Single Girderoverhead crane: Simpler and quicker setup (1-2 weeks). Light weight cuts runway strength needs. Care is easy with open parts.
• Double Girder overhead crane: Harder setup (2-4 weeks) from heavy build and exact fit. Needs stronger building holds but gives add-ons like walkways.
• Insight: Single girder fits updates in old buildings. Double girder calls for pro design for best safety and long use.

Real-World Examples: Single Girder vs Double Girder Crane in Action

Single Girder overhead crane in Warehouses

In a medium warehouse moving packed goods (e.g., electronics or building materials), a 10-ton single girder crane speeds loading/unloading from trucks. Its small size fits low roofs. This drops setup costs by 30%. It raises output by 20% without big frame changes. Logistics spots use this for smooth, low-amount heavy moves. Workshop owners get quick work gains.

Double Girder overhead crane in Steel Plants

A 50-ton double girder crane in a steel plant workshop raises hot slabs and coils over 80-foot spans. It lasts 24/7 work in hot spots. With anti-sway tech, it cuts place time by 80%. This boosts safety in risky areas. Such cranes are key in metal work. They give exact, high-power handling that single girders can’t reach.

Cross-Industry Insights

From car assembly (single girder for parts) to shipyards (double girder for hull sections), these cases show matching crane kind to load needs. This betters output. Workshops mixing both—e.g., single for storage, double for making—gain flexible material move. Production engineers build mixed systems for top choice.

Decision Table: Single Girder vs Double Girder Crane

Use this table to check your workshop needs. For instance, if spans go over 50 feet and loads top 15 tons, go toward double girder. It eases the single girder vs double girder crane buying choice.

About Nante Crane: Your Trusted Partner in Overhead Cranes

Nante Crane started over 30 years ago, leads as a Chinese manufacturer and global provider of cranes and parts. New ideas push them. Nante holds ISO9001, ISO14001, and ISO45001 certifications. They have A-level government approval for crane making. Their R&D team has 12 invention patents. They serve 5,000+ clients across 50+ countries in steel, logistics, and energy.

Nante Crane ‘s overhead crane lineup includes 1-20t single girder models for smooth light-duty raising. They offer 3.2-300t double girder options with hoist or open winch for heavy loads. Parts like electric hoists (2-63t) and rails ensure flexible, custom fixes. Safety and speed commit them. Nante Crane designs match EN ISO, FEM, and CMAA standards. This cuts energy use and costs. Distributors trust their steady supply chain.

Ready to improve your heavy-load workshop? Please talk to our engineers to learn your load setup. Contact Nante Crane today for a free quote on single girder vs double girder crane fixes suited to your work.

FAQ

What is the main difference between single girder and double girder cranes? Single girder cranes use one beam for lighter loads and shorter spans. Double girder models use two beams for heavier capacities and more balance in tough workshops.

How do I choose between single girder vs double girder crane for my workshop? Check load weight (under 20 tons favors single), span length (over 65 feet needs double), budget, and work cycle. Use our decision table for fast help in your buying choice.

Are Nante Crane products suitable for international standards?

Yes, Nante cranes meet global standards like FEM, CMAA, and EN ISO. Third-party checks from BV and SGS ensure trust worldwide.

What maintenance tips apply to these overhead cranes?

Regular checks of hoists, rails, and controls. Oil moving parts every three months. Single girders need less care. Both gain from Nante’s modular designs for easy reach.
