Shipyard Gantry Cranes: Specialized Lifting Solutions for Shipyard Operations

Introduction



Shipyards are super important for building, fixing, and keeping ships in shape. These jobs need careful work, speed, and safety, especially when moving heavy stuff like steel plates, engines, or containers. Gantry cranes are awesome for these tasks. They’re flexible, strong, and perfect for the busy, outdoor shipyard world. Unlike regular cranes, gantry cranes move easily, adapt to needs, and lift big loads, making them a must-have in tough settings.



This blog dives into how shipyard gantry cranes boost work, keep things safe, and get more done. We’ll look at real examples and cool features of their design. These neat lifting tools help shipyards work smoothly and meet the big needs of global sea trade.





Understanding Gantry Cranes in Shipyards



What is a Gantry Crane?



A gantry crane is a lifting machine held up by its own legs or rails. It doesn’t need a building to support it. This makes it great for shipyards with big, open spaces and bumpy ground. It has parts like beams (one or two), hoists for lifting, legs or wheels for moving, and smart controls for exact work. Unlike tower or bridge cranes, gantry cranes are easy to move and adjust. They handle big outdoor jobs, lifting heavy things like ship hulls or machines with no trouble. This flexibility fits the special needs of shipbuilding and repair where fixed setups don’t work well.



Types of Gantry Cranes Used in Shipyards



Single Girder Gantry Cranes



Single girder gantry cranes have one beam and a light design. They lift 1 to 20 tons. These cranes are perfect for careful lifting in shipyard assembly spots, like moving small ship parts or tools during repairs or modular builds. Their small size makes them easy to move in tight spaces, keeping work smooth in smaller jobs.



Double Girder Gantry Cranes



Double girder gantry cranes have two beams for extra strength. They lift 3.2 to 300 tons. Some use hoists (3.2-63 tons) for controlled lifts, while others use open winches (10-300 tons) for heavy tasks. These cranes are key for lifting big hull pieces or engines during shipbuilding. They give strong support for tough jobs.





Truss Gantry Cranes



Truss gantry cranes use a lattice frame to stay light and fight wind. They lift up to 300 tons. They’re built for tough weather, making them great for outdoor stockyards handling steel plates during ship fixes.



Rubber Tyre Gantry Cranes (RTG)



Rubber tyre gantry cranes (RTGs) move on rubber tires, so they don’t need rails. They lift 5 to 100 tons. RTGs are super flexible, perfect for moving containers or repositioning stuff in shipyard ports. Their easy movement helps with busy logistics.



Semi Gantry Cranes



Semi gantry cranes have one leg on a rail and one free leg. They lift 0.5 to 32 tons. This mix of fixed and mobile features fits indoor-outdoor spots in shipyard workshops, like fixing engines or assembling parts.



Key Features of Shipyard Gantry Cranes



Structural and Design Features



Shipyard gantry cranes are built to be small and light. This makes them easy to set up in changing layouts. They have energy-saving parts, like speed controls and anti-sway tech, to place loads exactly and avoid delays.



Safety and Reliability Enhancements



Safety is a big deal in shipyards. Gantry cranes have overload protection, emergency stops, and strong brakes to cut risks in tough spots. Weather-proof coatings fight rust from saltwater and bad weather, keeping cranes trusty.



Operational Efficiency Features



Cool features like remote controls and automation make work faster. Modular designs let you tweak things, like adding longer spans or higher lifts, to fit shipyard needs. This helps cranes blend into different tasks smoothly.



Benefits of Gantry Cranes in Shipyard Operations



Improved Productivity and Efficiency



Gantry cranes speed up moving materials. They cut ship turnaround times by quickly loading and unloading heavy parts. They can do many tasks at once, avoiding slowdowns. This helps big shipyards keep work flowing and meet tight deadlines.



Enhanced Safety and Risk Reduction



Gantry cranes cut down on manual lifting, lowering injury risks. Exact controls place loads right, preventing damage to pricey ship parts. This boosts overall safety at work.



Cost-Effectiveness and Versatility



Compared to fixed setups, gantry cranes cost less to install. They save money over time with energy-saving designs and low upkeep. Their flexibility helps with tasks like building new ships or fixing old ones, making global sea trade more efficient.



Real-World Applications of Gantry Cranes in Shipyards



Shipbuilding Processes

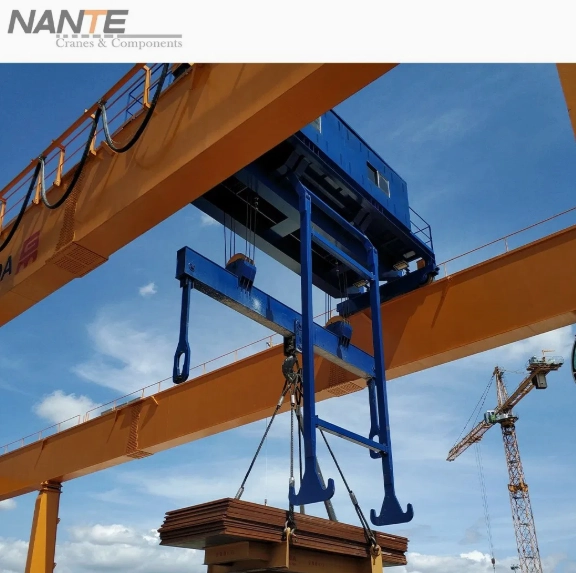

In shipbuilding, double girder gantry cranes are super important. They lift big hull pieces. For example, a 200-ton crane can move steel plates into place for welding across dry docks. This speeds up building and keeps things exact.



Ship Repair and Maintenance



Semi gantry cranes are great for repair jobs, like fixing engines in tight workshop spaces. Their mixed design reaches small areas while handling heavy gear, making repairs fast and cutting downtime.



Container and Cargo Handling



RTG cranes stack and move containers from ships to storage spots, making port work smoother. In stockyards, truss gantry cranes handle big materials like steel coils, helping manage supplies near shipbuilding areas.



Challenges and Solutions in Actual Deployments



Wind and rust are big problems in coastal shipyards. Truss gantry cranes fight these with wind-strong designs and rust-proof materials. Modular cranes adjust to small repair yards or big builders, keeping work flexible.



Technological Advancements in Shipyard Gantry Cranes



Automation and Smart Controls



Modern gantry cranes use IoT and smart sensors to check loads and spot issues early, cutting downtime. Auto-positioning systems make lifting exact, easing worker tiredness and boosting speed in tough tasks.



Eco-Friendly Innovations



Energy-saving motors and braking systems use less power, helping green goals. Tough, eco-friendly materials make cranes last longer, cutting environmental harm in marine spots.



Customization for Specialized Needs



Custom options, like adjustable heights or spans, fit unique shipyard setups. Safety features, like anti-crash systems, support multi-crane work, keeping things safe and fast in busy shipyards.



Factors to Consider When Selecting a Gantry Crane for Shipyards



Load Capacity and Span Requirements



Pick a crane based on the heaviest weights and distances in your shipyard. This ensures it can lift the biggest parts and cover needed areas.



Environmental and Site-Specific Considerations



Check the ground to decide if rail or tire cranes work best. Marine-grade materials keep cranes strong in rusty spots.



Customization and Integration Options



Smart controls or IoT for early issue detection boost performance. Meeting global rules ensures safety and speed.



Maintenance and Safety Best Practices



Routine Maintenance Strategies



Regular checks on structure, electrics, and hoists keep cranes lasting long. Lubing and part checks stop sudden breakdowns.



Safety Protocols in Shipyard Settings



Train workers on emergency steps and load limits. Monitoring systems catch problems early, keeping work safe.



Long-Term Performance Optimization



Energy-saving upgrades and regular care make cranes more eco-friendly. This keeps them trusty and saves money over time.



About Nante Crane: Leading Provider of Gantry Cranes



Nante Crane, a top maker in China, builds cool cranes for over 30 industries, including shipbuilding. With a reach in 50+ countries and 200+ partners, Nante offers all kinds of gantry cranes, from single girder (1-20t) to double girder (up to 500t), truss, rubber tyre (5-100t), and semi gantry (0.5-32t). Made for light, small designs, safety, easy upkeep, and energy savings, their cranes meet global rules (EN ISO, FEM). They include smart, green solutions for shipyard tasks like ports and stockyards. Nante’s many patents show their focus on new ideas and quality.



Discover how Nante Crane’s neat gantry cranes can change your shipyard work. Visit https://www.nantecrane.com/ for product details or contact their team for custom advice to boost speed and work.



Frequently Asked Questions (FAQ)



What capacities do gantry cranes offer for shipyard use?

They range from 0.5 tons for light jobs to 500 tons for heavy shipbuilding.



How do gantry cranes improve shipyard efficiency?

They move materials fast and exactly, cutting labor and downtime.



Are gantry cranes suitable for harsh marine environments?

Yes, with weather-strong designs and rust-proof materials.



What maintenance is required for shipyard gantry cranes?

Regular checks on parts, lubing, and safety systems are key.



How can I customize a gantry crane for my shipyard?

Use modular options for span, height, and controls to fit your needs.
