Nante Double Girder Truss Gantry Cranes: Built for Strong Wind Outdoor Yards

I. Introduction



A. The Critical Role of Reliable Lifting Equipment in Harsh Outdoor Environments



Outdoor yards face tough weather. Strong winds blow hard. Temperatures change a lot. Rain or snow can hit suddenly. Regular cranes struggle in these conditions. High winds make them sway, which isn’t safe. Hot or cold weather can hurt their parts, causing delays and costly breaks.



Industries like ports, construction, and factories need strong cranes. These cranes must work well no matter the weather. Double girder truss gantry cranes are built for this. Their light but tough truss design handles wind well. They lift heavy loads and stay steady. This makes them perfect for places like coastal ports or high-up building sites where winds go over 20 m/s. These cranes keep work going smoothly and safely, even in bad weather.







B. Why Nante Crane Leads the Way in Wind-Resistant Gantry Solutions



Nante Crane is a top name in lifting equipment. They focus on making cranes tough, efficient, and safe. Their cranes meet global rules like FEM and CMAA. Nante’s double girder truss gantry cranes lift up to 300 tons. They’re made for heavy outdoor jobs.



These cranes are great for windy places like ports or construction sites. This article explains their features, uses, and benefits. It shows why Nante sets the standard for cranes in strong winds.



II. Overview of Nante Double Girder Truss Gantry Cranes



A. Core Design Principles: Truss Structure for Superior Wind Resistance

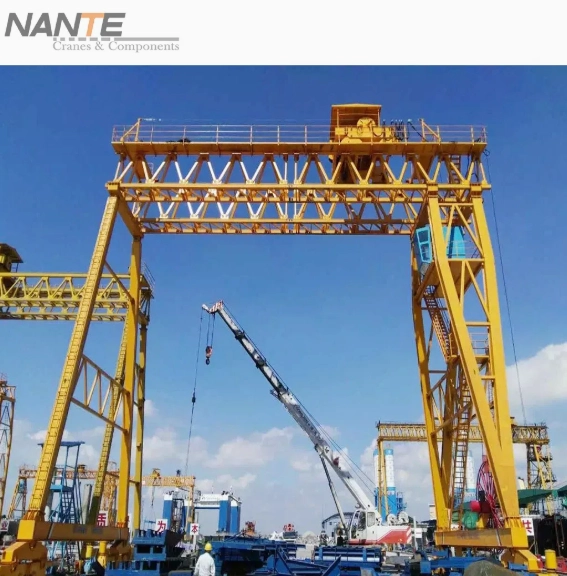

The main part of Nante’s cranes is a triangular truss beam. It’s made from strong S355 steel. This design is up to 30% lighter than old-style box girders but still super sturdy. The open truss shape cuts down on wind push. It handles winds up to class 11 when not working and class 6 when loaded. This is great for coastal or high places. Even in winds over 20 m/s, the crane stays steady. It lifts loads accurately. Also, forged steel wheels with heat treatment move smoothly on rough outdoor tracks. This keeps the crane reliable in tough spots.



B. Key Components: Hoists, Winches, and Modular Assembly



Nante cranes have strong lifting parts. For loads up to 63 tons, NHA-D European-standard hoists work well. For heavier loads up to 300 tons, NW-series winches do the job. These have direct-drive gearboxes, two brakes, and optional drum disk brakes for exact control with big loads.



The end carriages use hollow shafts for smaller loads or bogie systems for bigger ones. These give over 95% efficiency and small wheelbases for easy movement. Walkways and handrails on the girders keep operators safe. The crane’s flex is kept low, between 1/700 and 1/1000, so it stays solid during work.



C. Technical Specifications at a Glance



Parameter	Hoist Model (5–63t)	Winch Model (10–300t)
Lifting Height	3–30m	6–60m
Span	5–40m	5–45m
Control Methods	Pendent + Remote	Pendent + Remote + Cabin
Power Supply	380V/50Hz (Custom)	380V/50Hz (Custom)
Duty Class	A3–A5	A4–A6



This table shows how flexible these cranes are. They fit many outdoor jobs with custom setups.



III. Advanced Features for Unmatched Performance



A. Safety and Compliance: Built to International Standards



Nante cranes follow strict global rules like FEM, CMAA, EN ISO, and GB codes. They have safety tools like overload protection, emergency stops, and phase-lack detection. These keep the crane safe to use. IP55 cases protect control panels that meet IEC rules. Inverters help the crane start gently, cutting wear by up to 40%. For outdoor use, SA2.5 surface blasting and C3–C5 ISO 12944-5 coatings fight rust. This is perfect for wet or salty places like ports or factories.





B. Drive Systems: Energy-Efficient and Smooth Operation



The cranes’ gear motors have IP55 ratings, F-class insulation, and IE3 efficiency. They save 20–30% energy compared to older systems. Electromagnetic brakes with manual release hold loads safely. Inverter control lets the trolley move at speeds up to 20 m/min. This stops load swaying in windy weather. Festoon systems on I-beams give steady power and signals. Operators can choose pendent, remote, or cabin control to suit their needs.



C. Customization Options for Tailored Outdoor Use



Nante lets you customize cranes for specific weather. In cold places, IP65 cases with heaters keep things working. In hot areas, air conditioners help. Winches can get extra disk brakes for heavy loads. Rail clamps and wind sensors lock the crane during storms to avoid derailment. Finite element analysis keeps stresses below 70% of yield strength. This makes cranes last 25% longer in tough conditions, making them a smart choice.



IV. Real-World Applications in Outdoor Yards



A. Port and Dock Operations: Handling Containers Amid Coastal Winds



In busy ports, Nante double girder truss gantry cranes lift 20–50-ton containers across spans up to 40 meters. Their low wind shape keeps them precise in 15 m/s gusts. A Southeast Asian port said these cranes cut ship turnaround time by 15%. They stacked containers safely without weather delays, speeding up work.



B. Construction Sites: Erecting Structures in Open, Windy Fields



For big projects like bridges or highways, these cranes lift 100-ton girders to 50 meters high. Their modular design lets you take them apart and move them every 2–3 months. This fits changing construction plans. In a Middle Eastern project, Nante cranes handled 25 m/s sandstorms. They kept installing beams without stops, cutting project time by 20%.



C. Industrial Yards: Steel and Lumber Handling in Exposed Areas



In steel mills, 200-ton winch models move slabs in open yards. Lumber yards use 30-meter lifts for heavy logs. At a European biomass plant, the cranes’ light design saved 15% on rail foundation costs. Remote controls kept workers safe in windy shifts, boosting output by 25%.



V. Benefits: Economic and Operational Advantages



A. Cost Savings Through Lightweight and Modular Design



Nante’s truss cranes weigh 20–30% less than box girder cranes. This lowers wheel pressure and cuts track setup costs by up to 25%. Bolt and pin connections let you assemble them in under 48 hours. This saves time during yard growth or moves, making them a budget-friendly pick.



B. Enhanced Safety and Efficiency in Adverse Weather



These cranes resist winds up to class 12 when not working. Sensors lock loads during storms to avoid tipping. Users report zero weather-related accidents in over 1,000 hours of work.



Inverter systems cut energy use by 25%, making work faster and cheaper.



C. Long-Term Durability and Low Maintenance



Forged parts and ultrasonic weld checks give a 15–20-year lifespan. Modular parts keep cranes running 95% of the time. Users say maintenance costs are 40% lower than older designs. This saves money for main operations and keeps cranes reliable in tough weather.



VI. About Nante Crane: Pioneering Lifting Innovation



A. Company Profile and Global Reach



Since 2018, Nante Crane has been a high-tech company. They serve over 5,000 clients in 50+ countries with 200+ partners. With 12 invention patents and 100+ utility models, Nante leads in smart, light lifting for 30+ industries, like ports and factories.



B. Commitment to Excellence in Crane Products



Nante makes overhead cranes, launching cranes, electric hoists, and travel units. All are ISO-certified for safety and efficiency. Their double girder truss gantry cranes show 30 years of research. They bring top wind-resistant tech for tough outdoor jobs.



Ready to make your outdoor yard strong against weather? Contact Nante Crane at info@nantecrane.com or visit https://www.nantecrane.com/ for a custom quote. Boost your work with proven, wind-ready lifting power—book a consultation today!



VIII. FAQ



Q: What capacities does Nante offer for truss gantry cranes?



A: 5–63t with hoists; 10–300t with winches.



Q: Are they suitable for extreme winds?



A: Yes, rated to class 11 non-working, with anchors for security.



Q: How easy is installation?



A: Modular design allows assembly in 1–2 days.



Q: What warranties apply?



A: 12–18 months standard, extendable.
