Nante Crane – Trusted RTG Crane Manufacturer for Advanced Global Container Handling Systems

Introduction

Rubber Tyre Gantry (RTG) cranes are vital tools in today’s container handling systems. They transform how ports and terminals work. Unlike old-style rail-mounted cranes, RTG cranes move easily on rubber tires. They don’t need fixed tracks. This freedom, along with smart technology, makes container management safe and quick. It also saves yard space and makes work smoother.

RTG cranes handle millions of containers each year with great accuracy. They are key to meeting global trade needs. As a trusted name, Nante Crane provides smart RTG solutions. These improve efficiency and dependability for ports worldwide.

What is a Rubber Tyre Gantry (RTG) Crane?

Definition and Overview

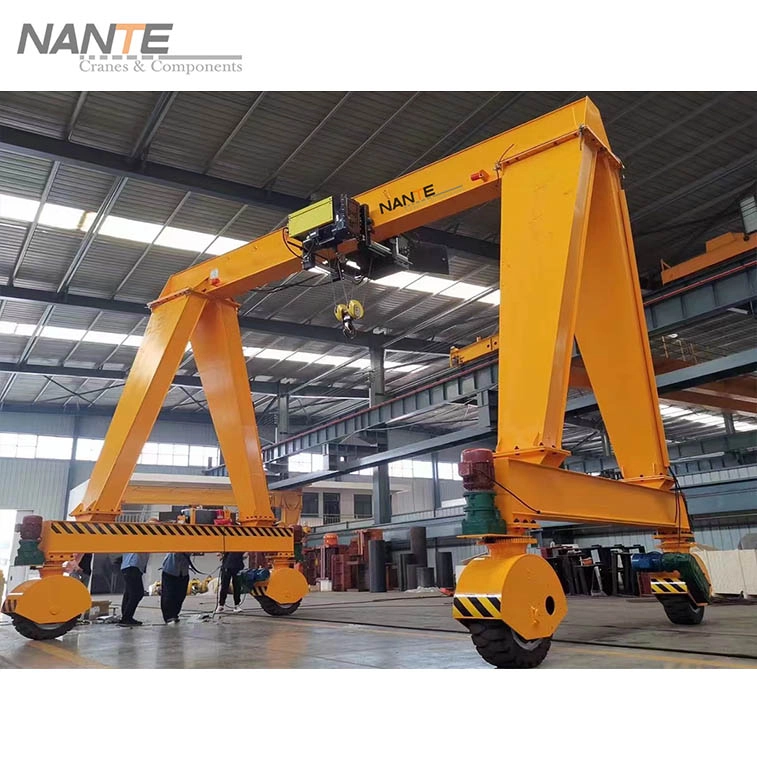

A Rubber Tyre Gantry (RTG) crane is a movable gantry crane. It’s built for handling containers in ports and intermodal yards. Unlike rail-mounted cranes, RTG cranes use rubber tires. This lets them move freely across terminal yards without tracks.

Key Characteristics

RTG cranes are very flexible. They can lift 2 to 100 tons. Their lifting height ranges from 3 to 60 meters. Their span goes from 5 to 40 meters. These measurements depend on whether the crane has a single or double girder design. Operators control them using a pendant, remote, or cabin. This allows exact movements in any direction.

Advantages Over Traditional Cranes

RTG cranes have big benefits compared to rail-mounted cranes. They don’t need tracks, which cuts down on setup costs. No need for costly track systems. Their flexibility lets them fit different terminal layouts. This makes them great for new or existing facilities.

Technical Features of RTG Cranes

Design Standards and Compliance

RTG cranes follow strict global standards like FEM, CMAA, EN ISO, and GB. This ensures they are safe and reliable. They use strong S355 steel for girders, built to last. Welding meets ISO 15614 and AWS D14.1 standards. Deflection stays between 1/700 and 1/1000. Tests like MT or PT for fillet welding and UT for joint welding ensure the structure is solid.

Hoisting and Winch Systems

The lifting systems use European-standard NHA hoists or NW series winches. Both have dual brake designs for extra safety. An optional disk brake on the drum adds more security. The motor connects directly to the gearbox for smooth power flow. Custom winch options let users pick solutions for specific needs, like heavy lifting or fast handling.

Mobility and Steering

RTG cranes use solid or pneumatic tires. They have advanced steering with gears or slewing bearings. This allows precise and easy movement. Operators can guide the crane any way using remote control or cabin controls. This helps adjust quickly to terminal layouts.

Control Systems

The control panel follows IEC standards. It’s housed in an IP55 enclosure, which can upgrade to IP65 for tough conditions. Stainless resistors improve inverter performance. Optional heaters or air conditioners keep the crane working in extreme weather.

Durability and Surface Treatment

RTG cranes are built for harsh port conditions. They get SA2.5 surface blasting per ISO8501-1 for a smooth, rust-resistant finish. The C3-C5 painting system, per ISO12944-5, protects against rust and wear. This extends the crane’s life and cuts maintenance needs.

Applications of RTG Cranes in Container Handling

Port and Terminal Operations

RTG cranes are essential in busy ports. They stack, retrieve, and move containers quickly. They can stack containers up to six high, saving yard space. This is vital for high-traffic terminals. Fast container handling cuts vessel turnaround times, which boosts port efficiency and output.

Intermodal Facilities

In intermodal yards, RTG cranes move containers between rail, truck, and ship. Their flexibility handles different container sizes, like 20ft and 40ft units. This ensures smooth shifts between transport modes. It reduces delays and supports complex logistics networks.

Real-World Case Studies

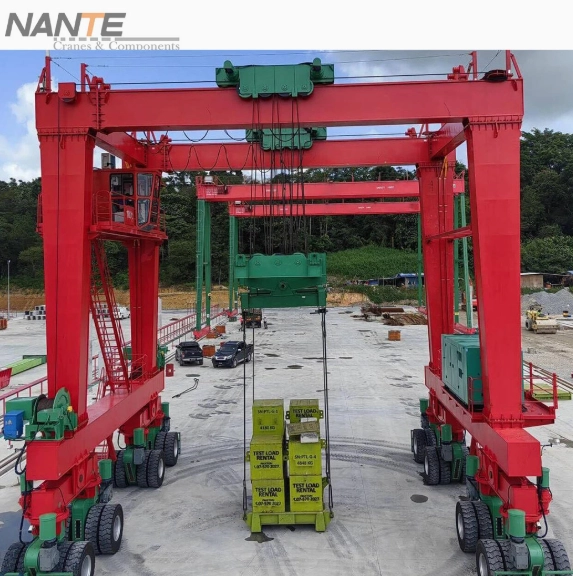

In one busy port, 63-ton RTG cranes handled peak container volumes. Their high lifting power and mobility cut turnaround times by 20%. This let the port manage more traffic without adding infrastructure. In another case, an intermodal yard used 100-ton RTG cranes with winches for heavy tasks.

Environmental and Efficiency Benefits

RTG cranes use energy-saving designs, like optimized movement patterns. These cut fuel use and emissions. Their ability to move through crowded terminals reduces idle time, which improves efficiency.

Benefits of Using RTG Cranes

Operational Efficiency

RTG cranes’ mobility and high lifting power reduce downtime. They handle containers faster. They work well in tight spaces and adapt to different terminal layouts. This keeps productivity high, even during busy times. They are perfect for demanding settings.

Safety and Reliability

Safety is a top priority in RTG crane design. Features like dual brake systems and strong control panels lower risks. They meet global standards. High-quality materials and strict testing ensure the crane is dependable. Operators can handle heavy loads with confidence.

Cost-Effectiveness

RTG cranes don’t need rail setups, which lowers initial costs. Their sturdy build and rust-resistant coatings reduce maintenance expenses. This saves money over time.

Flexibility and Scalability

RTG cranes work in terminals of all sizes, from small ports to big global hubs. With lifting capacities from 2 to 100 tons, they meet varied needs. They offer scalability for growing facilities or changing demands.

Intelligent Design

Smart features like remote control and precise steering make operations easier. Integrated control systems reduce human mistakes. They streamline work and improve terminal performance. This ensures RTG cranes meet modern logistics needs.

About Nante Crane

Company Overview

Nante Crane, based in Shaoxing, China, is a global leader in crane solutions. They focus on innovation, quality, and customer satisfaction. Nante Crane delivers advanced equipment to ports and terminals worldwide. Their engineering expertise ensures reliable, high-performing solutions tailored to clients.

RTG Crane Offerings

Nante Crane provides a wide range of RTG cranes. These include single girder models (2t–20t), double girder with hoists (5t–63t), and double girder with winches (10t–100t). Each crane can be customized with special winches and control systems. All meet global safety and performance standards.

Global Reach

Nante Crane serves clients worldwide, supplying dependable RTG cranes to ports and intermodal facilities across continents. Their focus on quality and innovation ensures equipment that meets tough logistics demands. This makes them a trusted partner in container handling.

Discover how Nante Crane’s RTG solutions can improve your container handling. Email Sales@nantecrane.com for custom inquiries. Or visit the website to download resources on advanced crane solutions tailored to your needs.

Frequently Asked Questions (FAQ)

What is the lifting capacity range of RTG cranes?

RTG cranes lift 2 to 100 tons. The capacity depends on single or double girder designs with hoists or winches. They meet a wide range of needs.

How do RTG cranes improve port efficiency?

Their mobility and high stacking ability cut turnaround times. They optimize yard space and streamline container handling. This boosts terminal productivity.

Are RTG cranes customizable?

Yes, Nante Crane offers tailored solutions. Custom winch designs and control systems meet specific needs, ensuring flexibility and performance.

What safety features do RTG cranes include?

They have dual brake systems and IEC-standard control panels. Strong welding ensures structural integrity. This makes them safe for tough environments.
