How Crane Duty Class Impacts Overhead Crane Lifespan and Performance

Crane duty class serves as a basic specification. It decides how well an overhead crane works in actual operating conditions. Knowledge of overhead crane duty classification aids buyers. They pick equipment that fits load frequency, intensity, and operational demands. Standards like FEM crane duty class and CMAA crane classifications supply organized frameworks. These ensure safety, reliability, and cost efficiency. Selection of the wrong class, such as a comparison of A3 vs A5 crane duty class, can change crane duty cycle impact on lifespan, maintenance needs, and total ownership costs in major ways. This guide explains the meaning of duty class, main standards, real effects, and ways to choose the correct one for best performance.

What Crane Duty Class Means

Crane duty class forms a standard rating system. It sorts overhead cranes according to expected usage patterns. It looks at load spectrum, which means average load as a percentage of rated capacity. It also examines number of lifts per hour, total operating cycles, and daily duty cycle, or active running time versus rest periods.

It avoids a one-size-fits-all method. Duty class makes sure the crane’s structural, mechanical, and electrical parts receive engineering for particular applications. Main factors include frequency of full-load lifts, average load intensity, number of operational shifts, and environmental conditions like temperature, dust, or corrosiveness.

Correct classification stops early fatigue. It cuts unplanned downtime. It also raises return on investment. A mismatch between a crane and its duty cycle often causes faster wear on important components like hoists, ropes, bearings, and girders.

Key Standards for Overhead Crane Duty Classification

CMAA Crane Classifications (A to F)

The Crane Manufacturers Association of America (CMAA) sets six service classes for overhead cranes. These classes see primary use in North America. They extend from infrequent standby service to continuous severe duty.

Class A (Standby or Infrequent Service) allows up to 2 lifts per hour. It supports precise handling with long idle periods. This class fits power plants or maintenance shops.

Class B (Light Service) covers 2–5 lifts per hour. It includes occasional full loads. The class appears often in repair shops and light warehousing.

Class C (Moderate Service) involves 5–10 lifts per hour. Average load stays at 50%. It works well for machine shops.

Class D (Heavy Service) handles frequent heavy loads. Such use occurs in foundries or heavy fabrication.

Class E (Severe Service) deals with high-frequency, near-capacity loads and minimal idle time.

Class F (Continuous Severe Service) applies to steel mill or high-cycle applications with very demanding duty.

FEM Crane Duty Class Overview

The European Materials Handling Federation (FEM) sorts cranes based on load spectrum and total operating cycles. It often uses notations like 1Am, 2m, 3m, or 4m, sometimes aligned with M1–M8. FEM pays attention to design life in hours and mechanism groups. This approach gains popularity for international projects. Higher FEM classes, for example 3m or 4m, allow more cycles and heavier average loads over the crane’s lifetime.

Comparing CMAA and FEM Standards

CMAA pays attention to practical service classes and usage frequency. FEM stresses quantitative load spectra and cycle counts. Approximate equivalents appear as follows.

Use CMAA for U.S.-style projects. Apply FEM for global or cycle-intensive applications. Many manufacturers design to both standards.

A3 vs A5 Crane Duty Class and Other Common Comparisons

In systems aligned with ISO/GB standards, A3 (often M3 or FEM 1Bm) stands for light-moderate duty with fewer cycles. A5 (M5 or FEM 2m) manages heavier average loads and more frequent operation.

Light duty vs heavy duty cranes show big differences. Light duty (A1–A3) carries a lower initial cost. It suits infrequent use with simpler components and longer idle times. Such cranes fit workshops with occasional lifts. Heavy duty (A5–A8 or higher) uses reinforced structures, higher-service motors, better brakes, and fatigue-resistant materials. These cranes serve heavy-duty overhead crane applications such as steel mills, foundries, container handling, or multi-shift fabrication shops.

A5-class cranes provide greater robustness than A3. They need higher upfront investment and more structured maintenance. Selection of A5 for light applications wastes capital. Use of A3 in heavy service shortens lifespan in a dramatic way.

How Duty Class Affects Overhead Crane Lifespan

Crane duty cycle impact on lifespan remains substantial. A properly matched crane can provide 20–30+ years of service with good maintenance. Under-specified cranes experience faster fatigue. Their components reach design limits sooner.

Higher duty classes receive construction with stronger materials and safety factors. These endure more stress cycles. Still, operation of any crane beyond its class speeds up wear on structural girders and joints through fatigue cracks, wire ropes and sheaves, hoist gears, motors, and brakes, plus bearings and travel wheels.

For example, a light-duty crane in continuous heavy use may need major overhauls in under 10 years. A correctly classed heavy-duty unit keeps its integrity for a much longer period. Regular duty cycle monitoring helps predict needs and extend life.

Impact on Performance, Maintenance, and Operating Costs

Performance Differences

Higher duty class cranes supply smoother operation. They allow faster duty cycles when required. They also give higher reliability under load. These cranes reduce downtime in demanding environments. They support production continuity in heavy-duty overhead crane applications.

Maintenance Requirements

Duty class influences inspection frequency and component longevity in a direct manner. Higher classes often require more frequent checks. They still show predictable and manageable wear. Lower classes in mismatched service face risks of sudden failures.

Typical practices include daily visual checks and operator logs, periodic lubrication and brake testing, annual or semi-annual structural and electrical inspections scaled to duty class, and load testing plus non-destructive examination for high-duty units.

Cost Implications

Initial cost rises with duty class. This happens because of heavier components and advanced engineering. However, total cost of ownership often favors the right higher class. Reduced downtime, lower repair frequency, and extended service life create the advantage.

Comparison tables of light versus heavy duty show one fact. Heavy-duty cranes cost more at the start. They deliver better long-term ROI in moderate-to-high usage scenarios. They avoid premature replacement.

Selecting the Right Duty Class for Your Application

Follow these steps. First, assess maximum and average load weights. Next, calculate lifts per hour and daily or weekly operating hours. Then, determine load spectrum as the percentage of time at various load levels. After that, consider number of shifts, environment, and future expansion. Finally, consult standards (CMAA or FEM) or a manufacturer for precise classification.

For heavy-duty overhead crane applications like metal processing or mining, lean toward Class D/E or FEM 2m–4m. Always include safety margins and potential changes in operations.

Best Practices for Maximizing Lifespan and Performance

Implement preventive maintenance schedules tailored to the duty class. Train operators on proper load handling and duty cycle awareness. Monitor actual usage against design parameters with data logging when possible. Perform regular inspections of wear-prone parts. Maintain proper lubrication, alignment, and environmental protections. Plan component replacements proactively based on cycle counts.

Consistent adherence to these practices extends crane life in a significant way. It also sustains performance.

Choose Reliable Overhead Crane Solutions

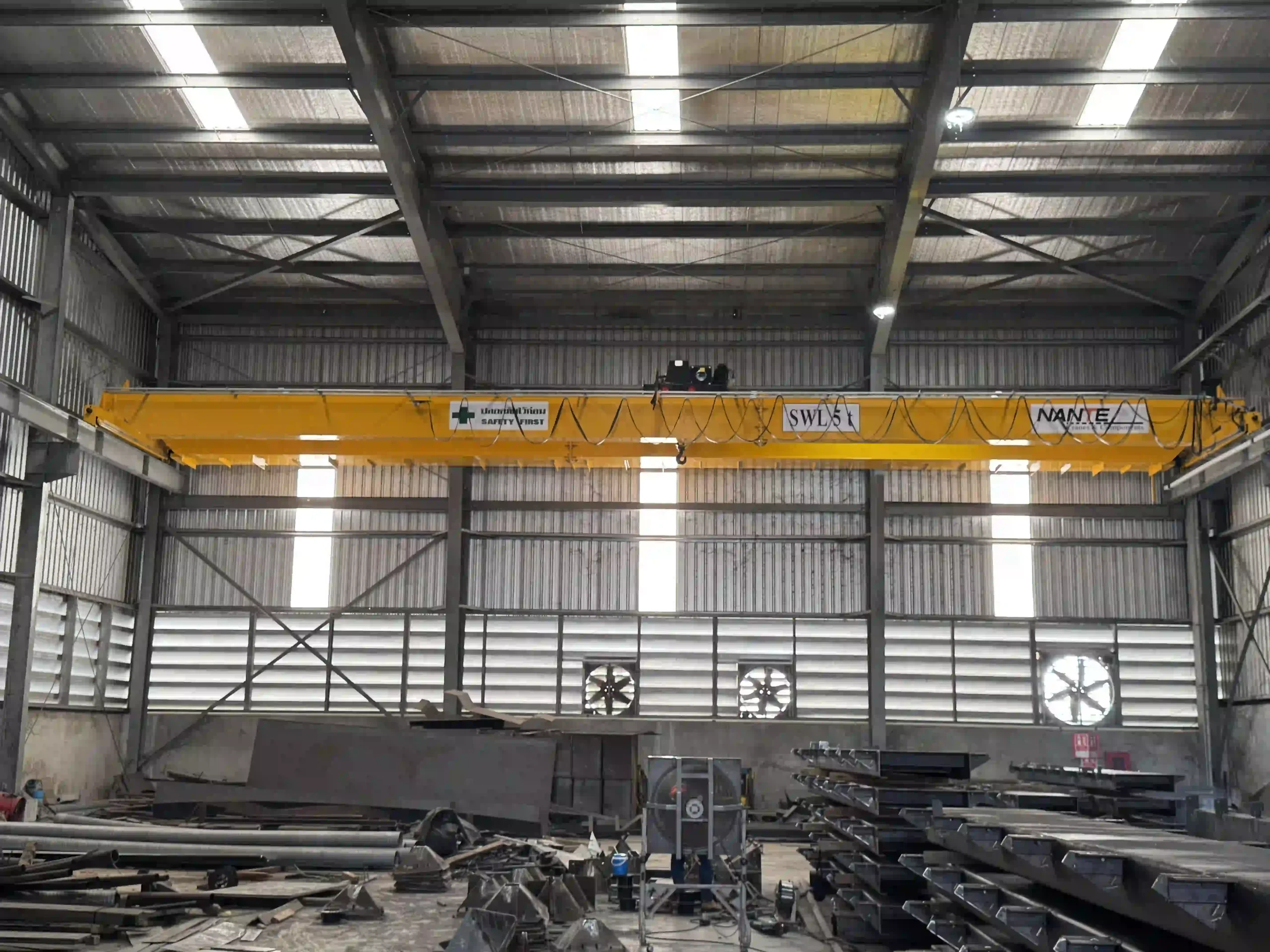

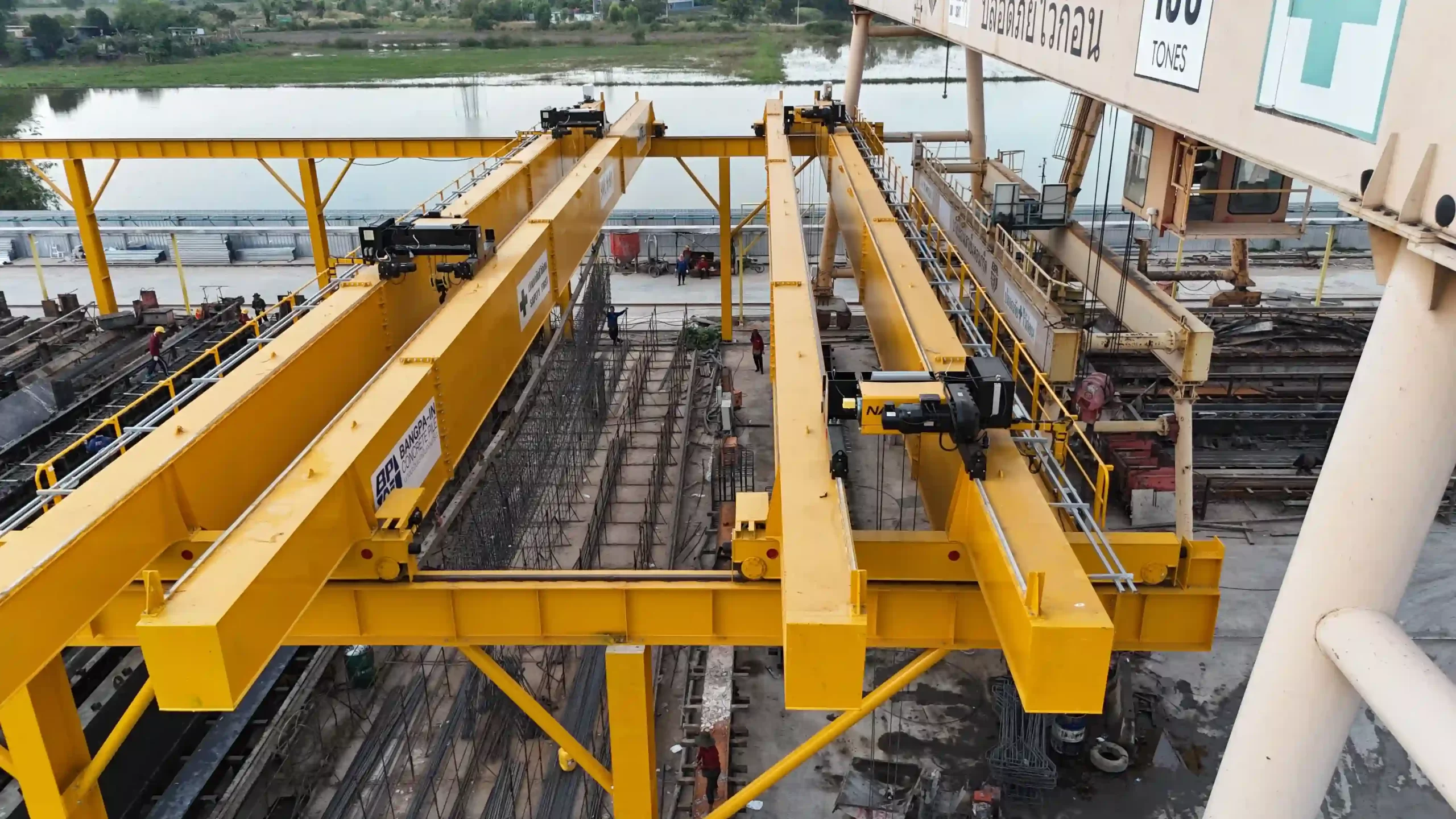

When selecting an overhead crane that matches precise crane duty class needs, partner with a manufacturer experienced in custom engineering for optimal lifespan and performance. Nante Crane is a leading designer and manufacturer with over 30 years of expertise. It offers a comprehensive range of single girder, double girder, and specialized overhead cranes built to FEM, CMAA, and international standards. Their products emphasize light self-weight, energy efficiency, safety, and customization for diverse industries. Contact Nante Crane today.

FAQ

What is the difference between CMAA Class D and FEM 2m?

CMAA Class D suits heavy service with frequent loads. It roughly aligns with FEM 2m–3m. This standard emphasizes cycle life and load spectrum for similar demanding applications.

How does a higher duty class affect maintenance costs?

Higher classes may increase routine inspection frequency. They typically lower overall costs. They reduce unexpected breakdowns and extend service intervals compared to mismatched lower-class equipment.

Can I use a light-duty crane for heavy applications?

No. This leads to rapid wear, safety risks, frequent repairs, and significantly shortened lifespan. Always match or exceed the required duty class.

What duty class is best for steel mill or foundry use?

Heavy or severe service fits best. This means typically CMAA Class D/E or FEM 3m/4m. These handle continuous high loads and harsh conditions.

How do I calculate my required duty class?

Evaluate lifts per hour, average load percentage, operating hours. Consult CMAA/FEM guidelines or an experienced supplier for accurate assessment.
