Bridge Launching Gantry Cranes for Precast Segmental Construction: Fast & Reliable Solutions

The Evolution of Bridge Construction Technology

As global infrastructure demands rise, bridge construction is becoming increasingly complex. From urban viaducts to mountainous terrains and water crossings, modern bridge projects face tight schedules, spatial constraints, and strict safety requirements. In this context, efficiency and precision have become non-negotiable.

One solution gaining widespread adoption is precast segmental bridge construction—a modular approach that improves quality, speeds up project delivery, and minimizes on-site disruption. Central to the success of this method is the bridge launching gantry crane, a specialized system designed to transport, lift, and place precast segments with high accuracy.

Precast Segmental Construction: Fast, Efficient & Modular

Precast segmental construction involves manufacturing bridge segments off-site in controlled environments, then assembling them on-site. This modular technique delivers multiple advantages:

Factory-controlled quality of concrete segments.

Less dependence on weather, enabling year-round progress.

Reduced on-site labor and traffic disruption, essential in urban and highway environments.

Two primary segment erection techniques dominate the industry:

Span-by-Span: Entire spans are assembled sequentially on temporary supports or gantries, ideal for repetitive span structures.

Balanced Cantilever: Segments are placed in pairs on either side of a pier, balancing each other out. This method excels on curved alignments, long spans, or over active roadways.

A prime example is the Westlink M7 Motorway project in Sydney, which deployed over 2,700 precast segments using both methods to construct 150 bridge structures in record time.

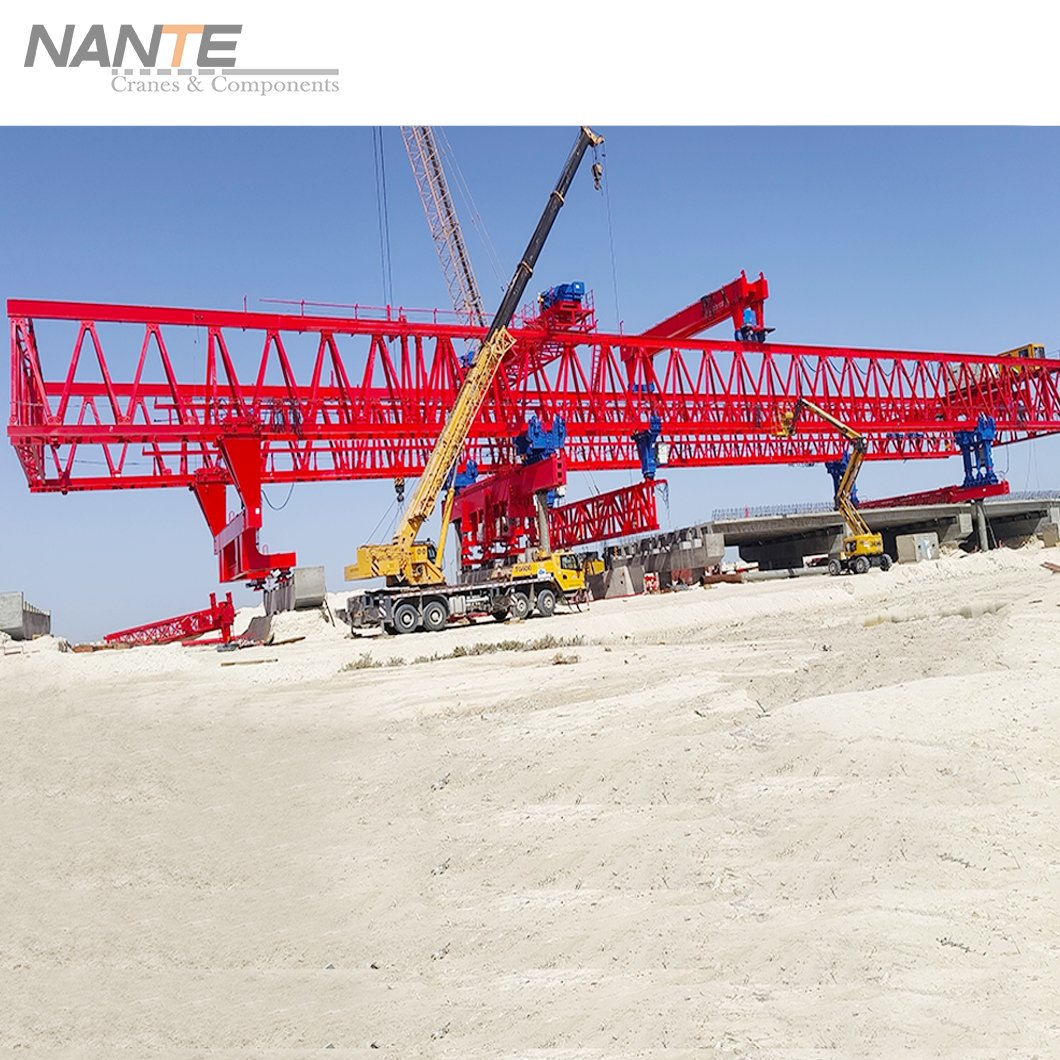

How Launching Gantry Cranes Streamline Precast Segmental Bridge Construction

Launching gantry cranes are purpose-built for the unique requirements of segmental bridge construction. Their key roles include:

Transporting precast segments along the gantry’s truss.

Lifting segments into position with precise vertical control.

Aligning each segment to millimeter tolerances before post-tensioning.

These gantries can be adapted to different techniques:

Span-by-Span: The gantry erects a full span using multiple lifting trolleys. Once post-tensioning is complete, it moves to the next span. This method can achieve erection cycles of two days per span, as seen on the M7 Viaducts.

Balanced Cantilever: The gantry handles asymmetrical loading conditions, installing pairs of segments on both sides of the pier and supporting them during post-tensioning. It’s especially useful for spans exceeding 50 meters or those with curves and height variations.

In both methods, gantries minimize ground disturbance and offer safer, faster, and more precise installations compared to cranes or falsework.

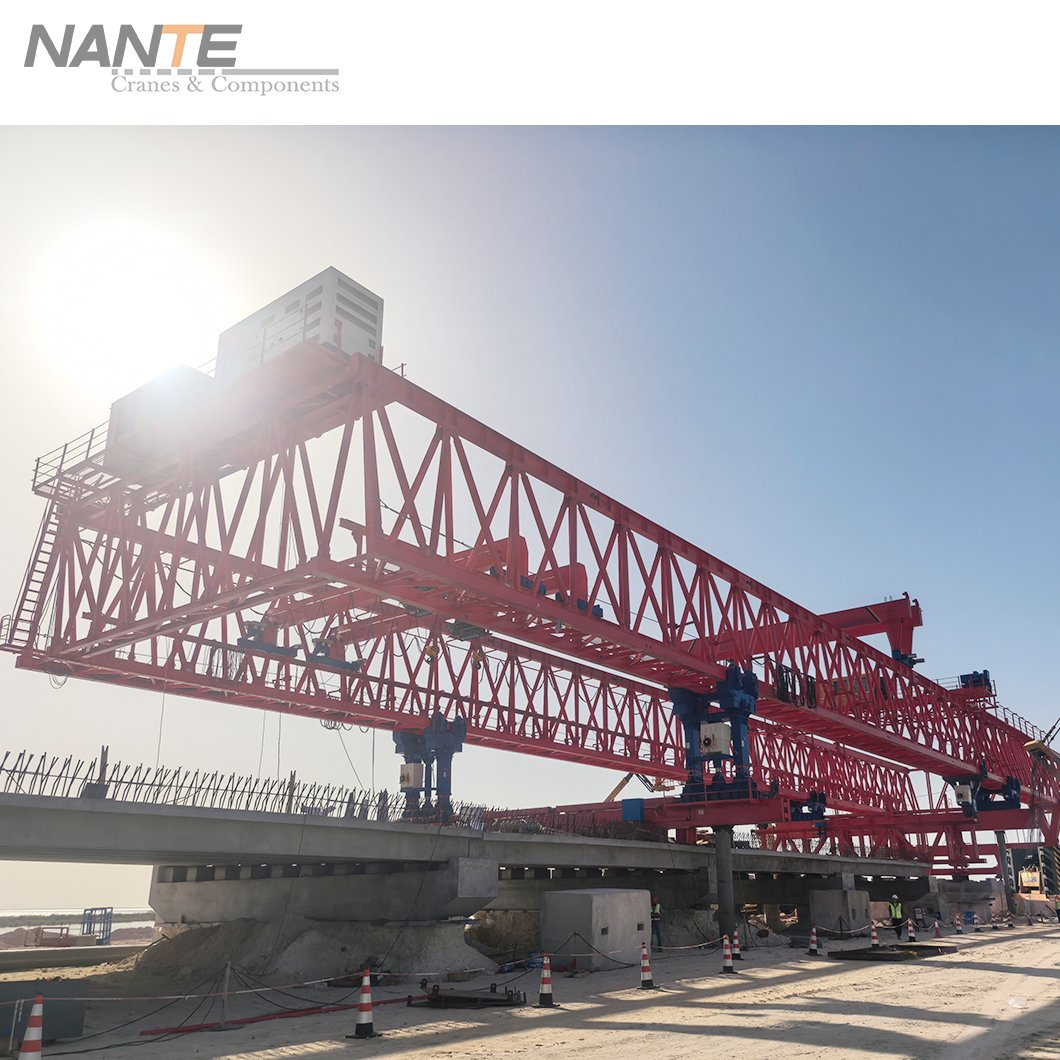

Key Features of Modern Launching Gantries

Nante’s launching gantries are designed to meet the demanding conditions of today’s infrastructure projects. Their core features include:

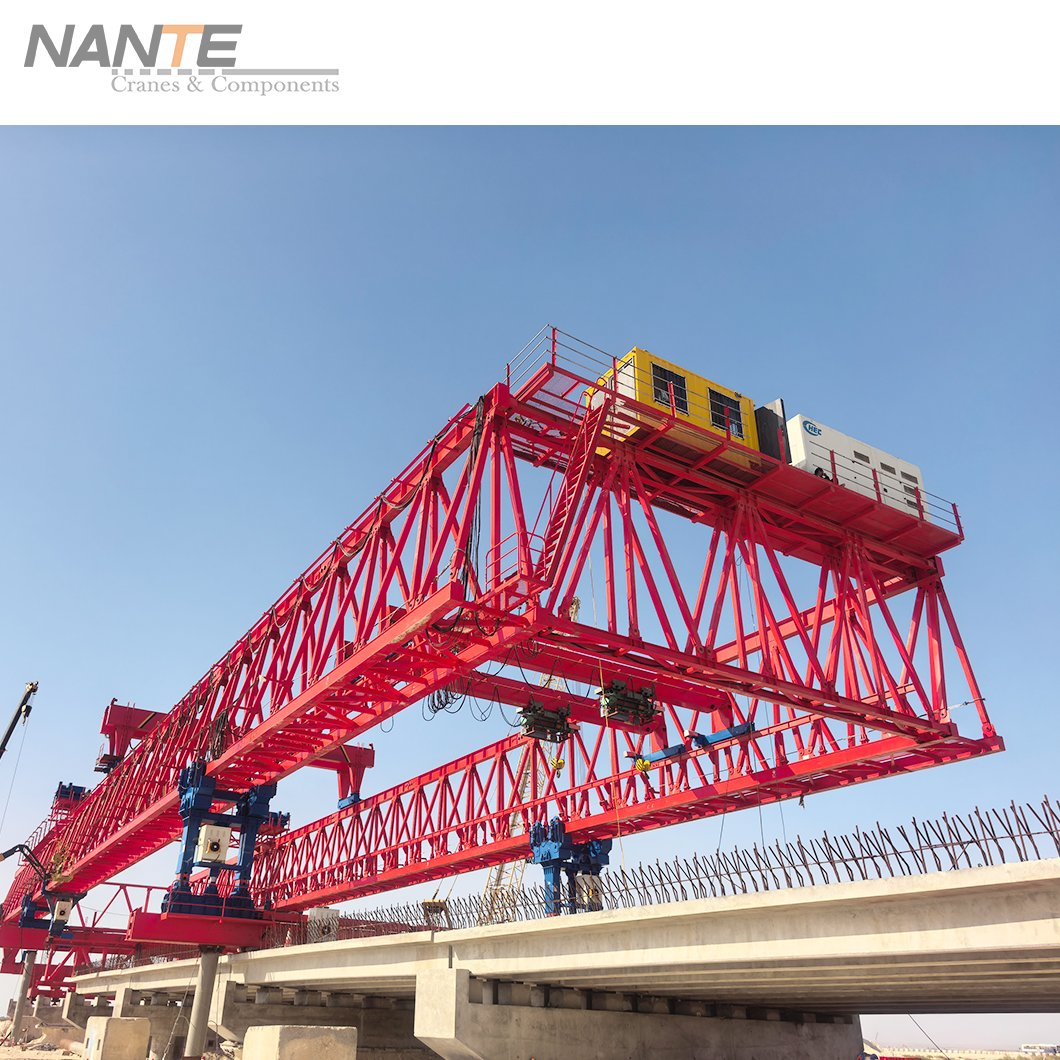

Truss Structure: Engineered with S355 high-strength steel, the lightweight truss design maintains structural integrity while reducing self-weight for longer spans.

High-Precision Mechanisms: Anti-roller systems are CNC-machined for smooth, accurate travel—essential when aligning segments on curved or inclined bridges.

Smart Control Systems: All gantries feature IEC-standard electrical control panels, integrated with monitoring systems for real-time load and speed data.

Flexible Operation: Nante’s gantries can erect segments on curves, in both directions, and even without auxiliary support for side beams.

Winch Integration: Equipped with NWC construction winches or NW European standard winches, using a multi-layer rope drum for compact, efficient lifting systems.

These features ensure that each launching gantry not only meets international safety and performance standards, but also adapts to diverse and challenging construction sites.

Case Applications of Launching Gantries

Launching gantries have proven their versatility across a wide range of applications:

Urban Viaducts: In congested cities, gantries allow multi-level ramp construction without occupying ground space. On the M7 project, curved ramp bridges at interchanges were erected using balanced cantilever methods with self-launching gantries.

Mountain or River Crossings: Where ground access is limited, gantries bridge the span from pier to pier, minimizing environmental impact.

Large-span Projects: For spans over 50m, segmental gantries enable the handling of heavy segments up to 900 tons, while maintaining stability and precision.

From elevated expressways to high-speed rail viaducts, launching gantries prove to be flexible and reliable in all construction environments.

Choosing the Ideal Launching Gantry for Your Precast Bridge Project

Selecting the right launching gantry depends on several factors:

Segment Weight: Gantries must handle segments ranging from 50t to 900t.

Span Range: Effective for spans between 20m and 50m.

Lifting Height: Nante’s systems support vertical lifts from 6m to 50m.

Nante’s Product Range:

Single-Girder Launching Gantries (50t–100t): Ideal for small and repetitive span structures.

Double-Girder Launching Gantries (120t–300t): Suited for mid-sized bridges with greater lifting needs.

Segmental Launching Gantries (700t–900t): Designed for heavy segments and long-span viaducts.

Customization Options:

Curved alignment capabilities

Real-time digital monitoring

Remote operation and diagnostics

Need help determining the right configuration? Our engineers can guide your selection based on site conditions and bridge specs.

Advantages of Nante Launching Gantries

Choosing Nante means choosing durability, innovation, and industry-leading quality. Key advantages include:

International Compliance: Fully adherent to FEM, EN, GB, and CMAA standards.

Advanced Systems: Equipped with IEC-compliant control panels and European-standard winches.

Welding Excellence: Trusses are welded to ISO 15614 and AWS D14.1 specifications.

Durability & Longevity: CNC-machined parts and high-quality materials ensure long service life.

Built-In Safety & Monitoring: Real-time data systems enhance operational safety and control.

Reusability: Easily relocated for multiple projects, providing excellent return on investment.

Sustainability and Safety Considerations

Launching gantries contribute to sustainable infrastructure in several key ways:

Promote Off-Site Fabrication: Minimizes wet work and on-site emissions.

Quiet & Clean Operation: Ideal for environmentally sensitive or urban areas.

Integrated Safety Systems: Features like load limiters, overload alarms, and emergency stops ensure a secure job site.

Logistical Efficiency: Streamlines site access and reduces construction congestion, improving the overall carbon and resource footprint.

As infrastructure projects prioritize sustainability and safety, launching gantries offer a smart, compliant solution.

Conclusion

As the global demand for high-performance infrastructure grows, precast segmental bridge construction has emerged as a powerful and efficient solution.At the core of this construction method are launching gantry cranes.

From span-by-span viaducts to balanced cantilever ramps, launching gantries provide unmatched flexibility and technical reliability. With advanced control systems, durable truss structures, and adaptive configurations, modern gantries not only streamline the construction process but also contribute to safer, more sustainable bridge building.

For contractors and project managers seeking a dependable and forward-looking erection method, choosing the right launching gantry crane is critical—and Nante offers the tools and expertise to make it happen.

About Nante Crane

Nante Crane is one of China’s leading designers and manufacturers of cranes and crane components. Our launching gantries are engineered to meet international standards and designed for efficiency, precision, and safety in modern bridge construction. With a full range from 50t to 900t, we provide solutions for every scale and complexity.

Looking for a reliable launching gantry for your next bridge project? Contact Nante today to get a customized solution that ensures faster, safer, and smarter construction. Let’s build the future—together.
