Underhung End Carriage

Product Description

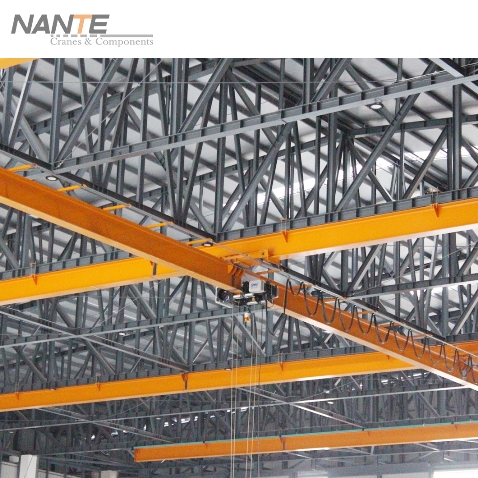

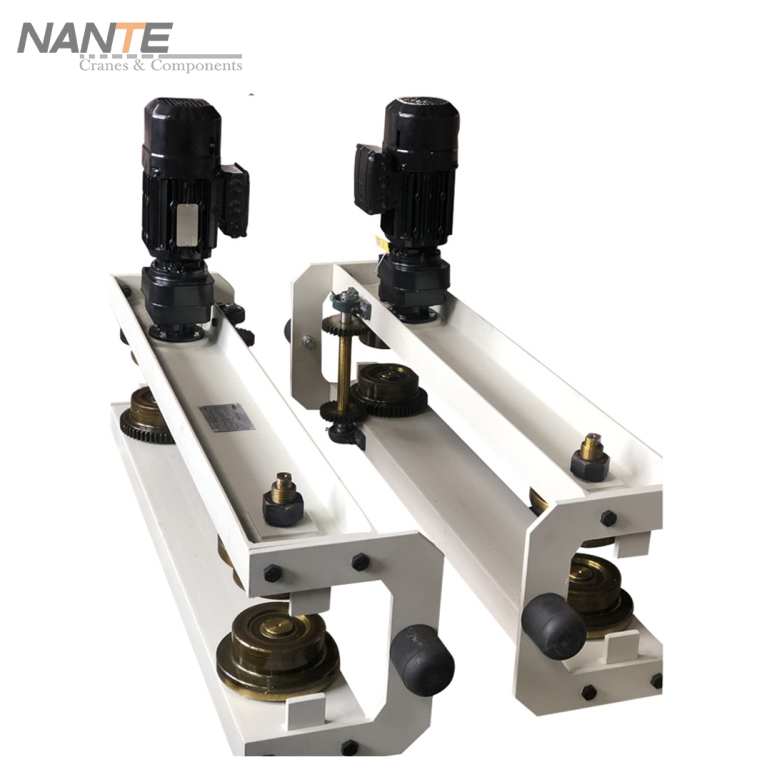

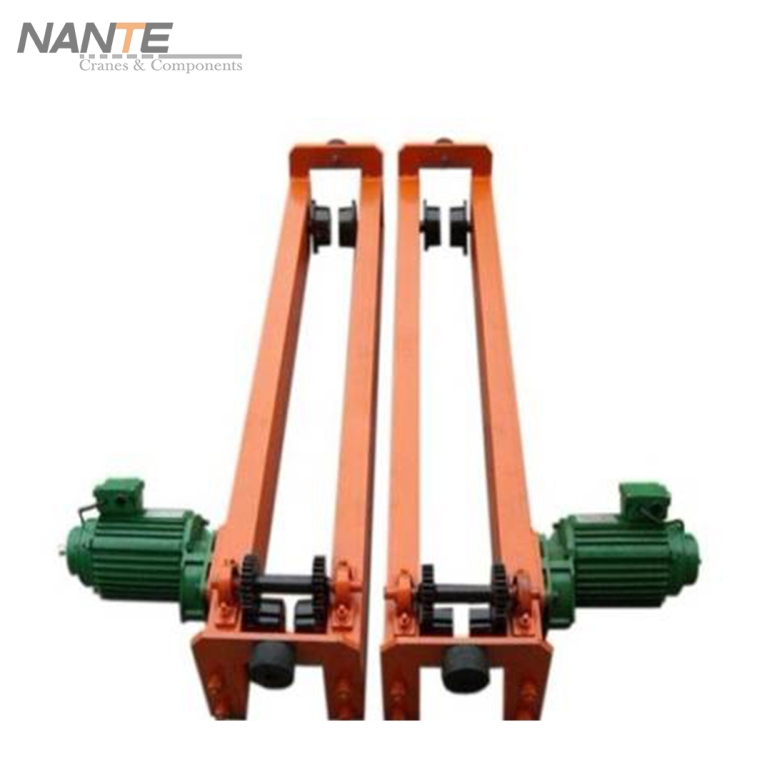

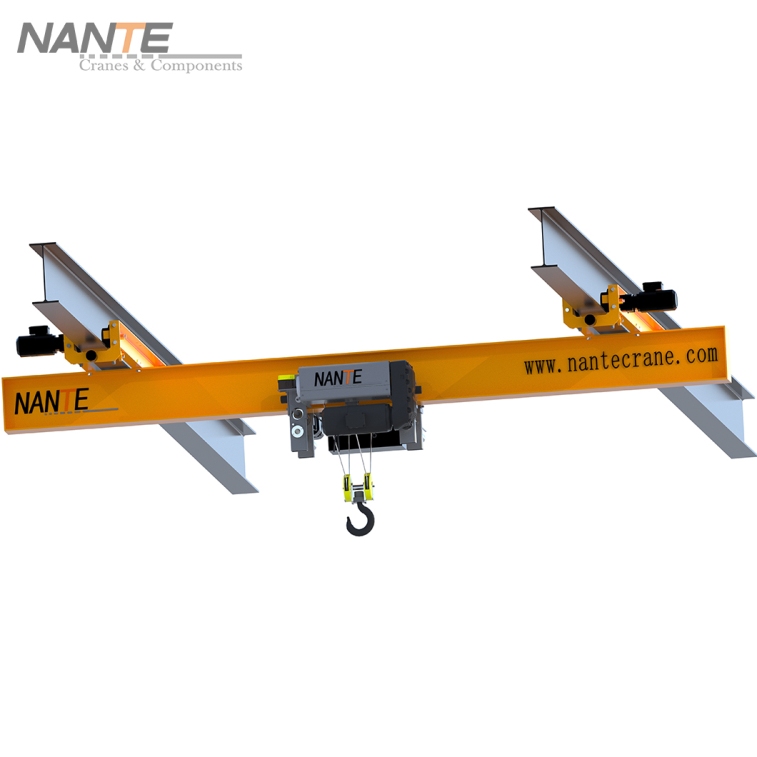

SCE series end carriage is special designed for under-hung overhead crane. This series end carriage can do bevel wheel for I beam, and flat wheel for H beam, and can be equipped with NANTE’s soft-start motor or RF series motor for different budget. In additions, NANTE can offer the advanced safety functions, like anti-sway, cross limit switch, photo sensor, sound and revolving light etc.


1) Use deep groove ball seal bearing, free lubrication.
2) Can use bevel wheel for I beam, and flat wheel for H beam

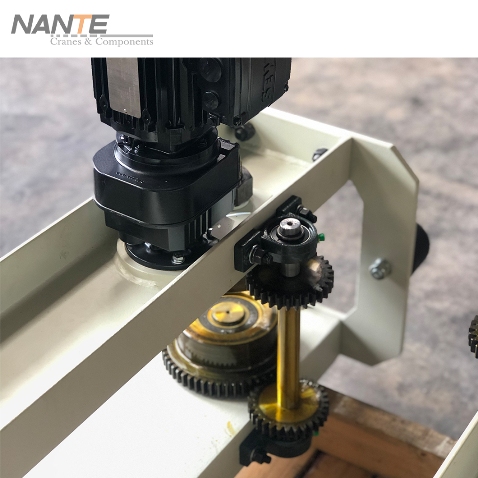

3) The wheel groove and gear surface is done by the high frequency heat treatment, and the hardness can reach to 45-55 HRC
4) The motor also can be controlled by inverter for step-less speed.
5) SA2.5 class surface pre-treated by shot blasting, and the painting system is C3-C5 according to ISO 12944-5.

Technical Parameter

Model Wheel Dia. Motor Selection Speed(m/min) Duty Group
SCE-N Under-hung End Carriage 100mm-200mm NT Soft Start Gear Motor 20 M3-M4

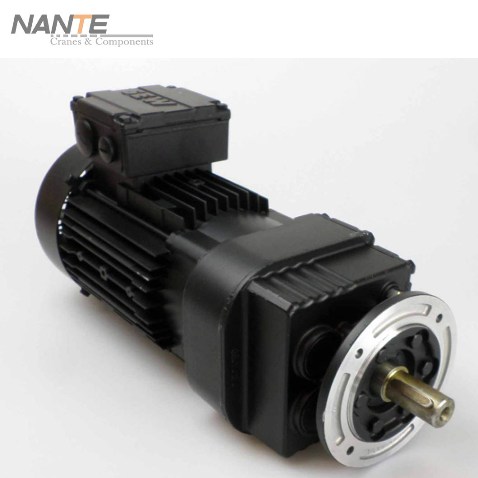

SCE-H Under-hung End Carriage 100mm-200mm RF Series Gear Motor 20-40 M3-M6
