Flat Bar & Square Bar Rail

Product Description

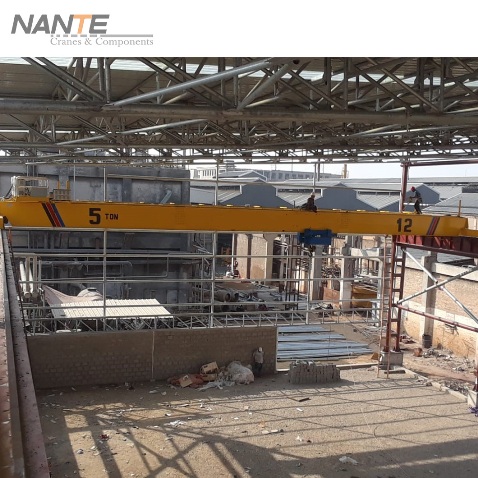

Flat Bar and Square bar rail is common using rail for light duty cranes. Due to the large contact surface with the wheels, the crane is running smoother and the wheel is much longer service life. Nante can offer 40×30,50×30,60×40,70×40,100×60 flat bar, and 40×40,50×50,65×65,80×80 square bar, as well as the customized dimension.


1) The steel material is S355, which is equal to DIN ST52.
2) The flat bar angel is R3, so that less wear of the wheel edge

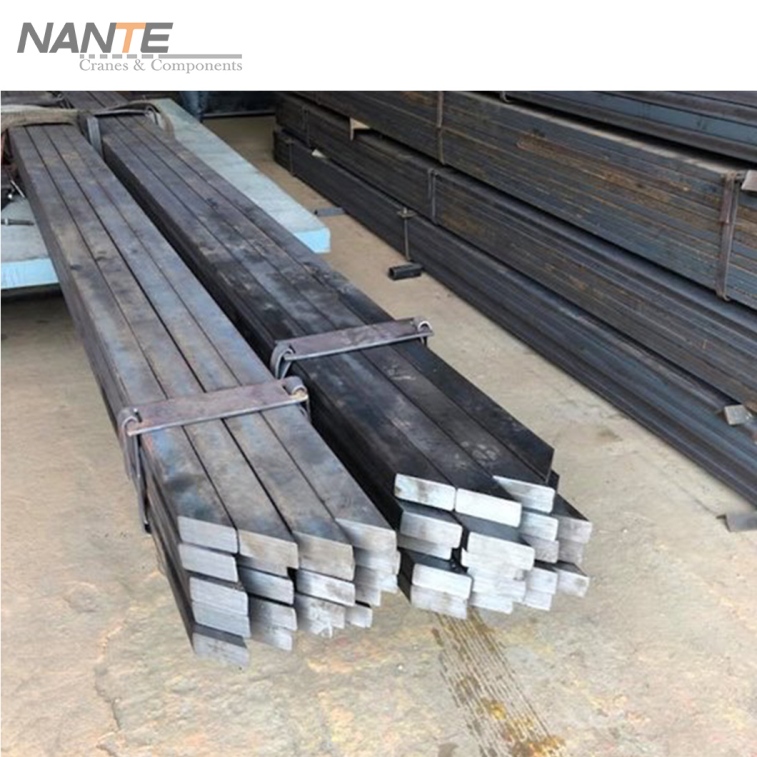

3) 45 degree cutting for the both end is optional service.
4) Dimension and length can be customized to follow different request.

Technical Parameter

Type Model Material Code Customized Service
Flat Bar 40×30,50×30,60×40,70×40,100×60 S355 (ST52) Customized Length, 45 degree cutting
Square Bar 40×40,50×50,65×65,80×80 S355 (ST52) Customized Length, 45 degree cutting
